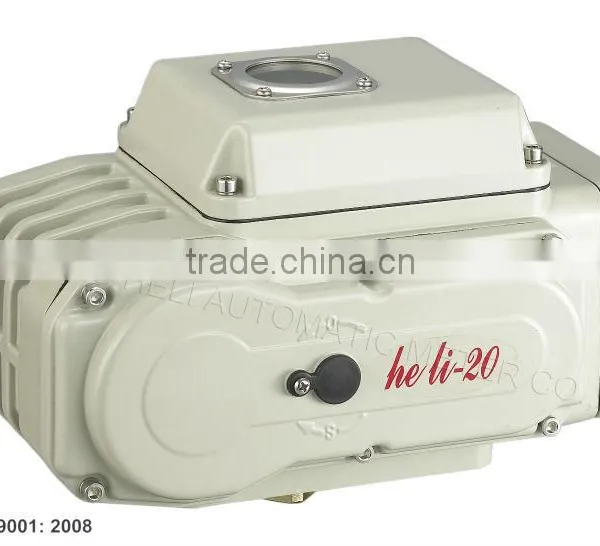

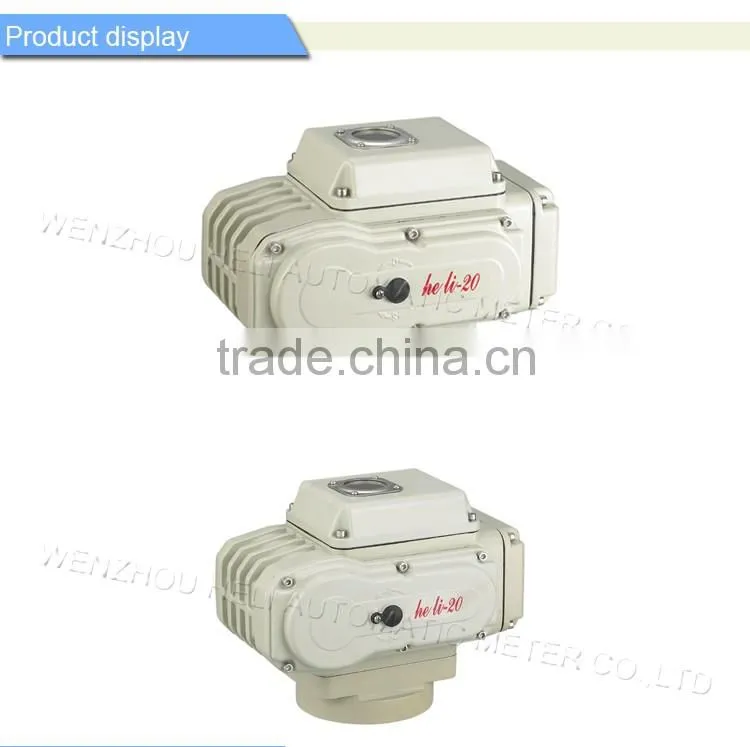

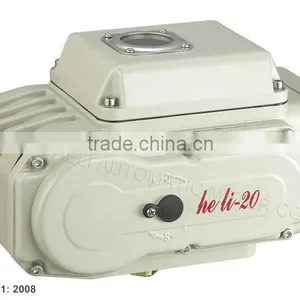

Help CenterLever Electric Actuator
Related Products
-
Electric Rotary Actuators With CE Certification ISO9001US$ 1 - 460MOQ: 1 Piece -
Electric Valve ActuatorUS$ 1 - 540MOQ: 1 Piece
-
Electric ActuatorUS$ 50 - 70MOQ: 10 Sets
-
Modulating Type Electric Valve Actuator / Device (HL-100)US$ 1 - 820MOQ: 1 Set
-
Perfect Perfomance Electric Actuator With CE Cerfitication (HL-200)US$ 1 - 910MOQ: 1 Set
Detailed information
|

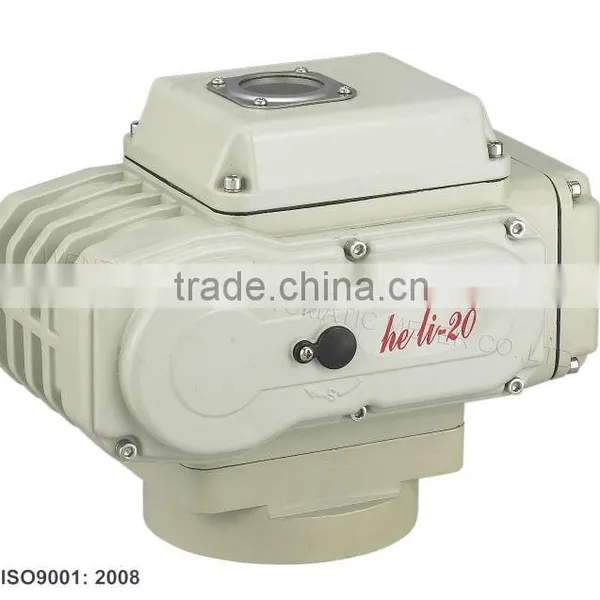

Model
|
HL-20 |
|||||||
Power |
DC24V |
DC220V |
AC24V |
AC110V |
AC220V |
AC380V |
||
Motor power |
40W |
|||||||
Rated current |
8.5A |
0.35A |
5A |
0.9A |
0.48A |
0.25A |
||
Output torqu |
200Nm |
80Nm/100Nm/150Nm/200Nm |
||||||
Action time |
10S |
9S/15S/20S/30S/60S |
||||||
Circuit control |
B,S,R,H,A,K,D,T |
|||||||
Rotary angle |
0-90° |
|||||||
Weight |
7 Kg |
|||||||
Voltage-with standing value |
500VAC/1min |
1500VAC/1min |
||||||
Insulated resistance |
100MΩ/300VDC |
100MΩ/500VDC |
||||||
Protection class |
IP67 |
|||||||
Surrounding Temperature |
-25°C~60°C(The other temperature can be customized) |
|||||||
Installation angle |
Any angle |
|||||||
Case material |
Aluminium die-casting components |
|||||||
Optional function |
Overload protection, heater |
|||||||
2.Packing:foam package inside,Carton outside
3.Port: Ningbo,Shanghai
4.Delivery time: Depend on your quantity
5.Payment Terms:
100% by T/T in advance
6.Supply Ability: 500 Set/Sets per Week 2,000pcs/month
7.MOQ:1pcs
8.Detailed pictures:
