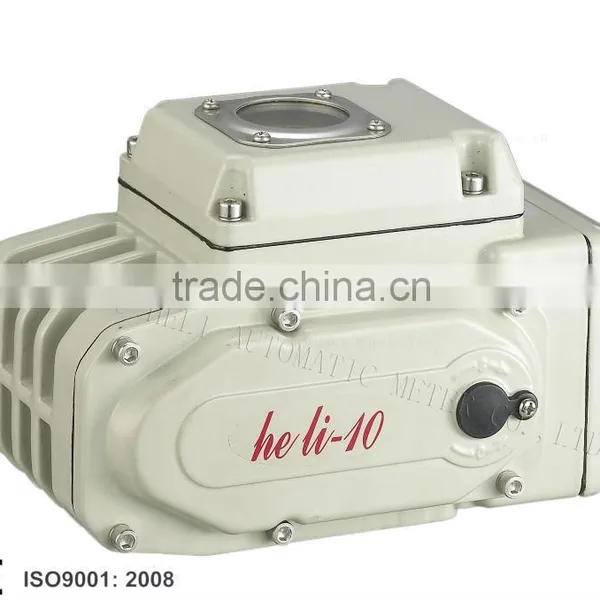

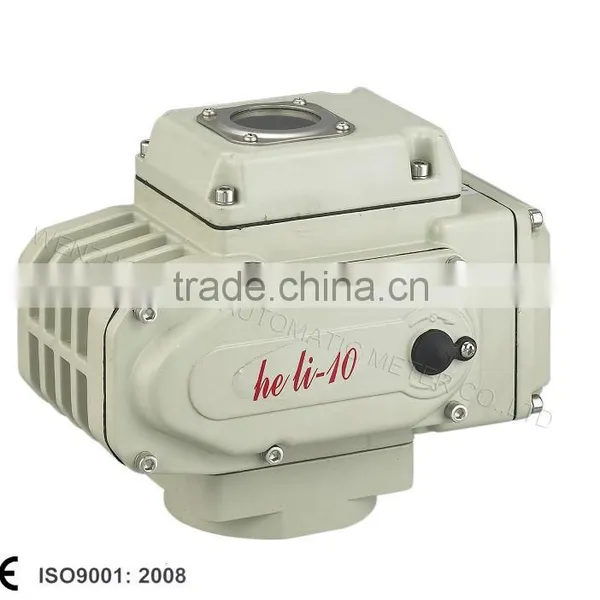

Electric Rotary Actuators With CE Certification ISO9001

Name: Electric Rotary Actuators With CE Certification ISO9001
Brand: Heli
SKU: 117247463

US$ 1 - 460 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Model Number:

HL-10

Brand Name:

Heli

Wenzhou Heli Automatic Meter Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Model Number HL-10

Brand Name Heli

1. Detailed information

Model	HL-10
Power	DC12V		DC24V	DC220V	AC24V		AC110V	AC220V	AC380V
Motor power	40W,23W
Rated current	4.8A		2.4A	0.32A	3A		0.64A	0.24A	0.19A
Output torque	100Nm				50Nm/60Nm/100Nm
Action time	10S				13S/15S/20S/30S
Circuit control		B,S,R,H,A,K,D,T
Rotary angle		0-90°
Weight		4.5
Voltage-with standing value		500VAC/1min				1500VAC/1min
Insulated resistance		100MΩ/300VDC				100MΩ/500VDC
Protection class		IP67
Surrounding Temperature		-25°C~60°C(The other temperature can be customized)
Installation angle		Any angle
Case material		Aluminium die-casting components
Optional function		Overload protection, heater

2. Packing for actuator without valve

8PCS/49*41.5*44/CTN 35KGS/CTN

3. Delivery time

refer to quantity and production department plan

4.Payment Terms

100% by T/T in advance for order less than USD 20000.00

We do payment in L/C at sight for order more than USD 50000.00

But always is in T/T,30% deposit and 70% balance before shipment.

5.Supply Ability

500 Set/Sets per Week 2,000pcs/month

6. Sample:

We may need 7 days to make the sample with 1 pc ,

also we need the sample fee and the express fee,but there would be return after place order.

7. MOQ: 10pcs

Price:	FOB USD 10~100 / Piece Get Latest Price
Minimum Order Quantity:	10 Piece/Pieces
Port:	Ningbo or Shanghai
Delivery Time:	10~15 days to make goods for 1000pcs
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	2000 Piece/Pieces per Month
