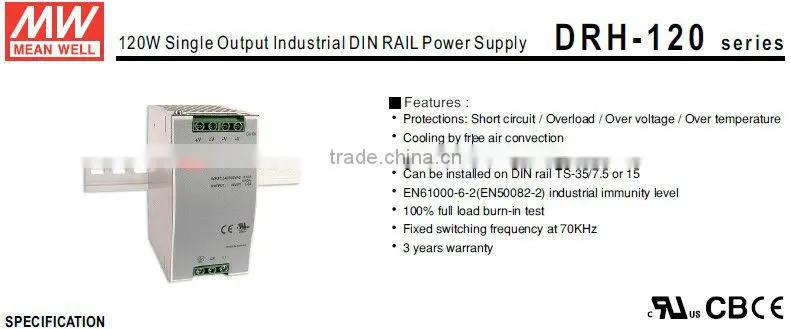

Meanwell DRH-120-24 120W 24V Three Phase Din Rail Power Supply

Name: Meanwell DRH-120-24 120W 24V Three Phase Din Rail Power Supply
Brand: Mean Well
SKU: 117417173

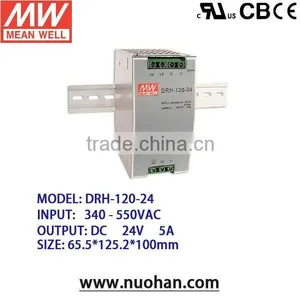

Meanwell DRH-120-24 120W 24V Three Phase Din Rail Power Supply thumbnail-1

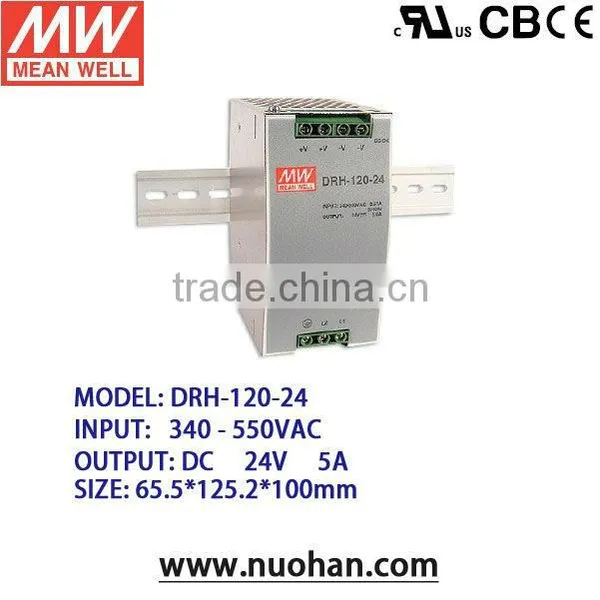

Meanwell DRH-120-24 120W 24V Three Phase Din Rail Power Supply photo-1

US$ 1 - 10 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Mean Well

Model Number:

DRH-120-24

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Mean Well

Model Number DRH-120-24

Input Voltage 340 ~ 550VAC 480 ~ 780VDC

Output Voltage 24V

Output Power 120W

Output Frequency 47~63Hz

Output Current 5A

MODEL		DRH-120-24
OUTPUT	DC VOLTAGE	24V
	RATED CURRENT	5A
	CURRENT RANGE	0~5A
	RATED POWER	120W
	RIPPLE & NOISE (max.) Note.2	80MVP-P
	VOLTAGE ADJ.RANGE	24~28V
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP. RISEHOLD. TIME	1700ms, 120ms, 16ms/400VAC 1000ms, 120ms, 30ms/500VAC at full load
INPUT	VOLTAGE RANGE Note.6	340 ~ 550VAC 480 ~ 780VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY (Typ.)	85%
	AC CURRENT (Typ.)	0.65A/400VAC 0.6A/500VAC
	INRUSH CURRENT (max.)	COLD START 50A
	LEAKAGE CURRENT	<3.5mA / 530VAC
PROTECTION	OVER LOAD	105~150%rated output power
	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	30~36V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	85°C±5°C (TSW1) detect on heat sink of power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down

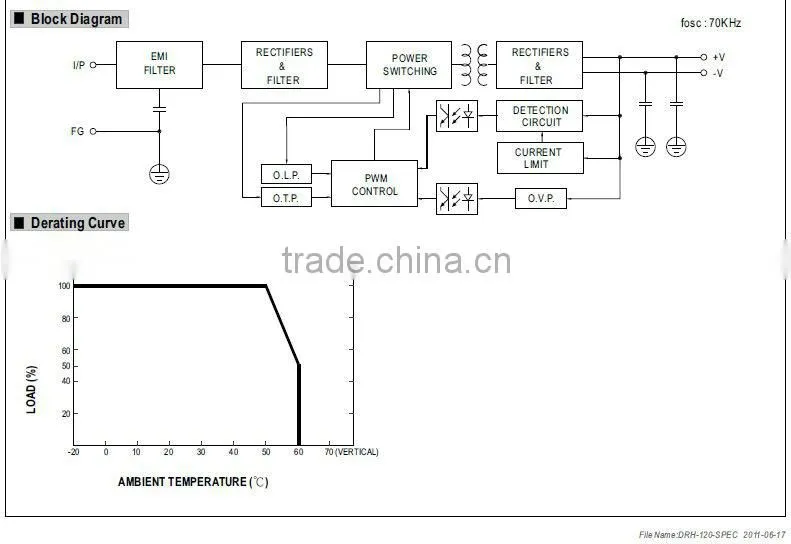

ENVIRONMENT	WORKING TEMP	-20~+60°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-40~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50°C)
	VIBRATION	Component:10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL60950-1 approved, IEC60950-1 CB approved by SIQ
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55011, EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024, EN61000-6-2 (EN50082-2), heavy industry level, criteria A
QTHERS	MTBF	178.7Khrs min MIL-HDBK-217F(25°C)

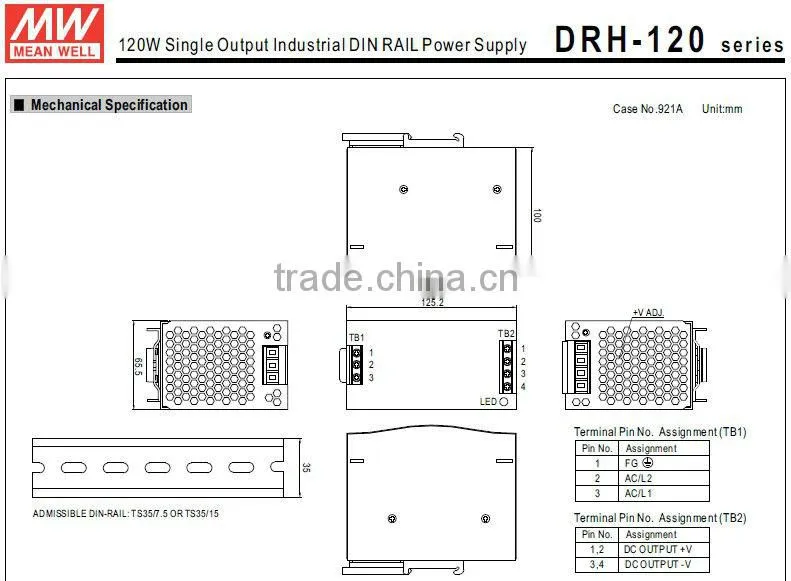

	DIMENSION	65.5125.2100mm(LWH)
	PACKING	0.75Kg; 20pcs / 16Kg / 1.29CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
