Automatic Edge Banding Machine

Automatic Edge Banding Machine thumbnail-1
Automatic Edge Banding Machine photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, automatic Edge Bander Machine, Edge Bander Machine
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Qingdao Haozhonghao Woodworking Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, automatic Edge Bander Machine, Edge Bander Machine
Place of Origin Shandong, China
Brand Name HZH
Model Number MD60G-7
Voltage 380V
Power(W) 12.51Kw
Dimension(L*W*H) 5500x900x1600mm
Weight 2300kG
Certification ISO9001/CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

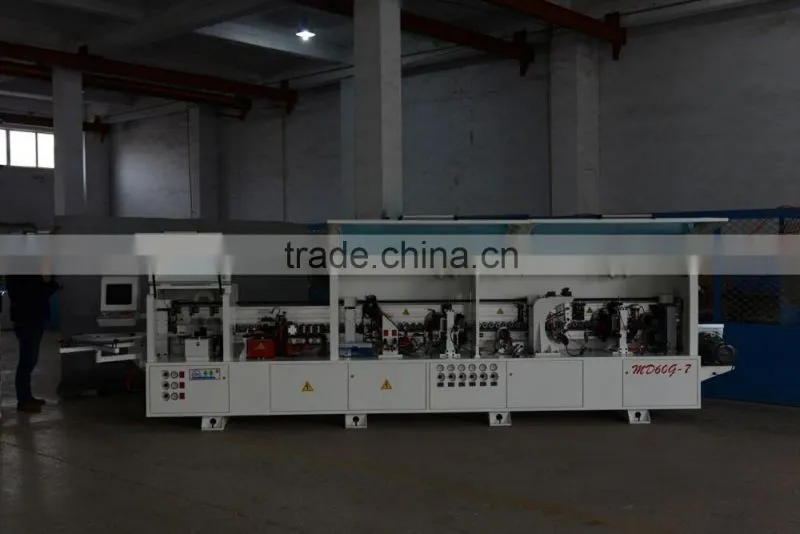

We offer High quality Auotomatic Edge Bander Machine MD60G-7

Product Description

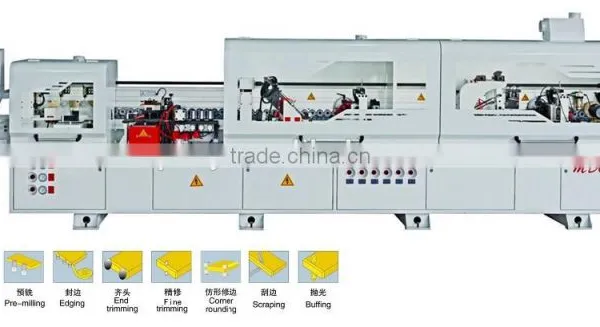

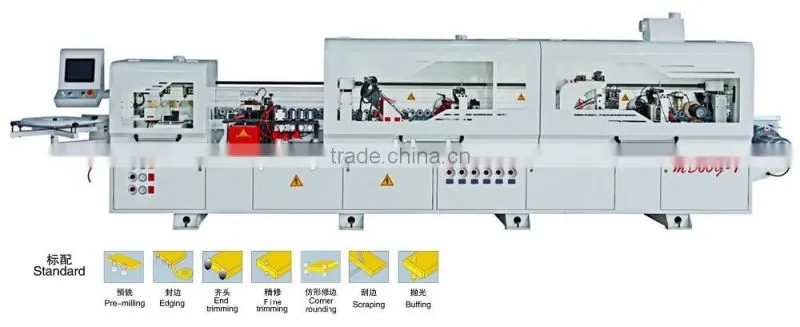

(1Premilling-2Edging-3End trimming-4Fine trimming-5Corner rounding-6Scraping-7Buffing)

PLC Control with TOUCH SCREEN, Schneider Inverters, Premilling knife is Diamond materials



Thickness of panel: 10-60mm

Min width of panel: ≥80mm

Min length of panel: ≥80mm (No premilling), ≥230mm(with premilling)

Thickness of belt: 0.3-3mm (PVC)

Max. belt size higher than panel: 2mm

Panel feeding speed: 0-26m/min (Stepless)

Air pressure: 0.7Mpa

Premilling motor: 2x1.8Kw   12000r/min    200HZ

End cutting motor: 2x0.5KW   12000r/min    200HZ

Fine trimming motor: 2x0.75KW    12000r/min    200HZ

Corner rounding motor: 2x0.37kw 12000r/min   200HZ

Buffing motor: 2x0.25KW    1400r/min   50HZ

Heating power of glue tank: 2.6KW

Panel feeding motor: 2.2KW 50HZ

Glue spindle motor: 0.75KW

Power of accessorial heater: 0.12KW

Total power: 12.51KW

Outline size: 5500x900x1600mm

Net Weight: about 2300kgAutomatic Edge banding machine







Packaging & Shipping



Package: Plastic film package.

Delivery: About 30 days after receive the down payment.
