Specifications
Hexagon Shape Gabion Mattress1. Flood bank,Guiding bank
2. Economic & Fast delivery
3. Simple installation
4. No collapse
1. Introduction
Hexagon Shape Gabion Mattress
Hexagon Shape Gabion Mattress are made of hexagonal double-twisted mild steel wire mesh. Mattresses can be supplied in various length, width and height. In order to strengthen the mattress, all the edges of the mattress are selvedged with a wire of greater diameter. Gabion mattress has a hexagonal mesh with the opening of 80x100mm with 2.5mm mesh wire and 3.0mm selvedge wire diameter. All gabions and mattresses are supplied with the baskets and are used to lace together the mesh panels during the erection process. Mattresses are also available with a 0.5mm thickness P.V.C. coating to enhance the resistance of the baskets against corrosion. This provides an overall increase in diameter of 1mm to all wires used in the manufacturing process. Surface treatment of gabion mattress is heavily zinc-coated soft temper steel.
Sizes:
Standard size: 6x2x0.17m 6x2x0.23m 6x2x0.30m 3x2x0.17m 3x2x0.23m 3x2x0.30m
Mesh size(mm): 60x80mm,80x100mm,100x120mm,120x150mm
Wire diameter: 2.2mm/3.2mm,2.4mm/3.4mm,2mm/3.0mm
(We can manufacture as client's demand.)
2. Specification
Length(m) |
Width(m) |
Height(m) |
Mesh type(mm) |
3m |
2m |
0.15-0.20-0.25 |
80x100 |
4m |
2m |
0.15-0.20-0.25 |
80x100 |
5m |
2m |
0.15-0.20-0.25 |
80x100 |
6m |
2m |
0.15-0.20-0.25 |
80x100 |
3m |
2m |
0.17-0.23-0.30 |
60x80 |
4m |
2m |
0.17-0.23-0.30 |
60x80 |
5m |
2m |
0.17-0.23-0.30 |
60x80 |
6m |
2m |
0.17-0.23-0.30 |
60x80 |
(All sizes and dimensions are nominal. Tolerances of ± 3% of the width, length, and ±2.5 cm of the height shall be permitted.)
3. Characteritics
C1. Economical. It only needs to load a stone cage that can be sealed.
C2. Construction is simple, without special skills.
C3. A strong withstand natural damage and corrosion resistance and resistance to adverse effects of climate.
C4. Withstand large-scale deformation, and does not collapse.
C5. Cage rock crevice between the mud to plant production, with the surrounding natural environment melting together.
C6. Has good permeability to prevent static fluid from the damage caused.
C7. Save transportation costs. Can be folded up and assembly on site.
4. Applications
A1. Waterways and Channels
A2. River Crossing
A3. Landscaping Retaining Structures
A4. Marinas and Seashore Protection
A5. Bridges and Culvert Protection
A6. Rockfall Protection
5. Packing Photos
6. Customers Visiting and Certificates

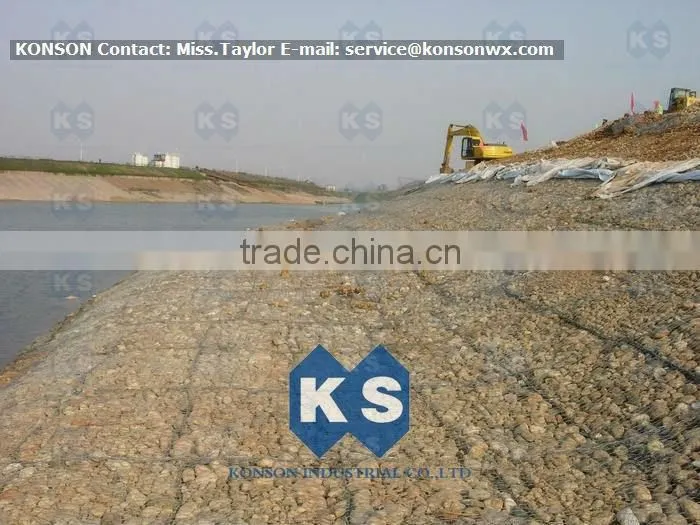

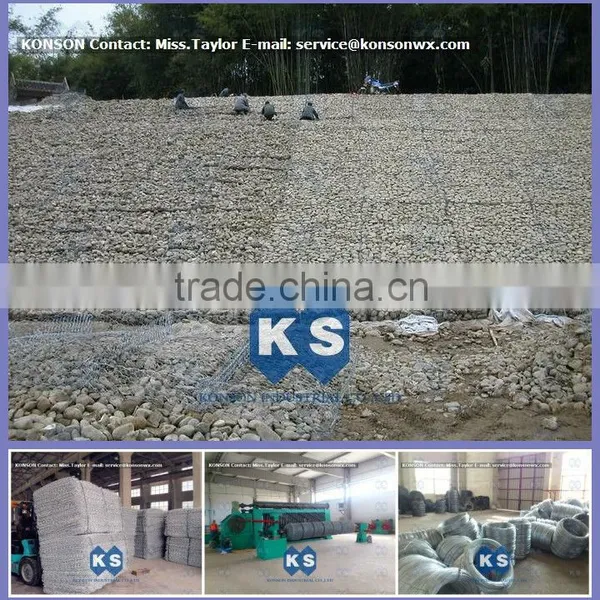

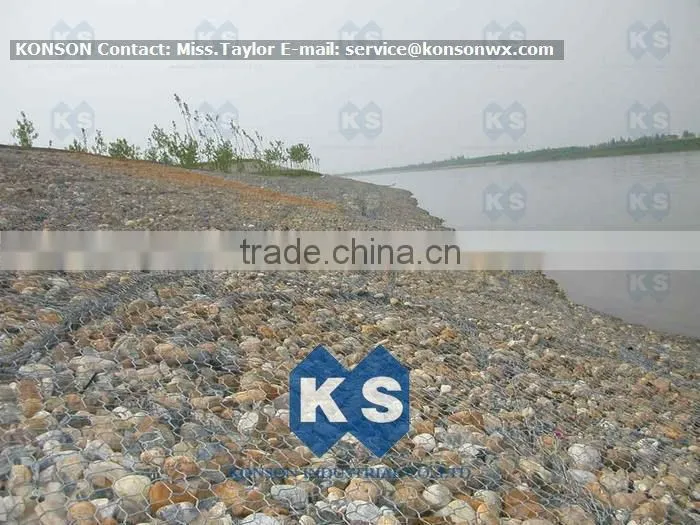

7. Project Photos
8. Our services
S1. We can offer any sizes of gabion mesh, baskets or boxes according to the requirements of customers.
S2. We will reply you as soon as possible upon receving your request of your products.
S3. We can provide you with samples free of charge.
9. About Konson
Konson Industrial Company Limited, with more than 15 years production experience, becomes one of the leading manufacturers of the gabions, mattress and gabion production line in China. We would like to offer good service and excellent products to customers wholeheartedly!

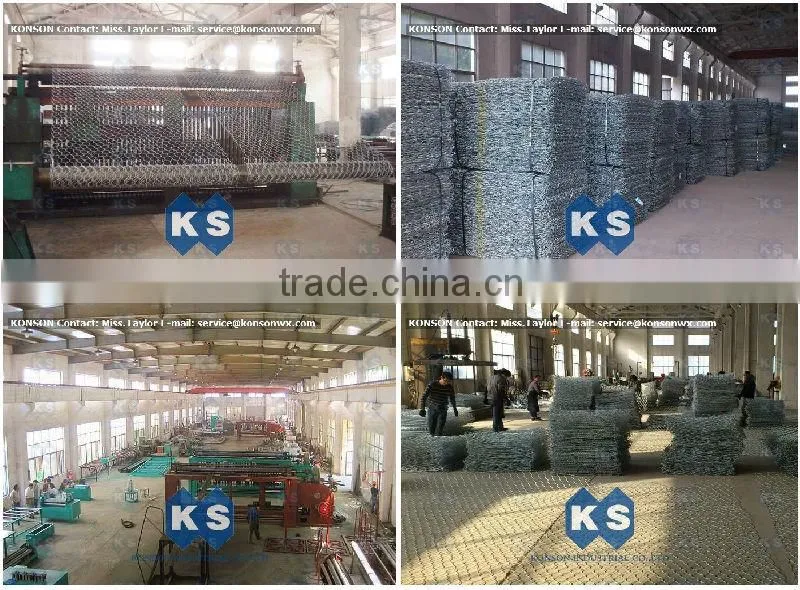

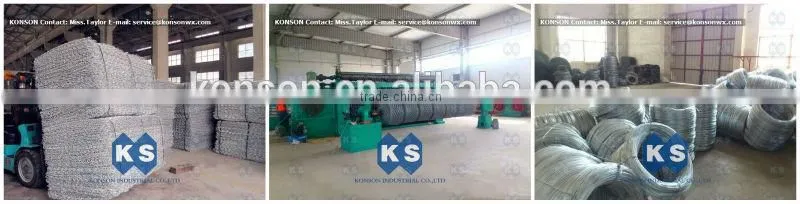

Konson's workshop
