Specifications
Pvc /Galvanized Gabion Box1 Manufacture ISO,SGS,CE test
2 Hexagonal wire mesh box
3 Output 4000 sqm per day
4 Fast delivery
1. Introduction
Pvc Gabion Box/Galvanized Gabion Box/Best Factory/Gabion Basket/ISO:9001(High Quality, Fast Delivery And Low Price)
Gabion box is made of double-twisted hexagonal wire mesh, its main materials are hot dipped galvanized steel wire, zinc and aluminum alloy coated steel wire, PVC coated steel wire, etc.
Gabion boxes are filled with stones at the project site to form flexible, permeable and monolithic structures such as retaining walls, channels and weirs for erosion control projects. In order to reinforce the structure, there is selvedge wire on the mesh panel edge whose diameter is greater than mesh wire. Gabion box is divided into cells by diaphragms positioned at approximately 1m centers.
The wire is heavily zinc coated and for protection it can also be PVC coated. Stainless steel wire is also available according to customers’ special order. Gabion boxes are supplied in various sizes. 2m in length, 1m in width and 1m in height is the most popular size. The diameter of the wire used can also be varied.

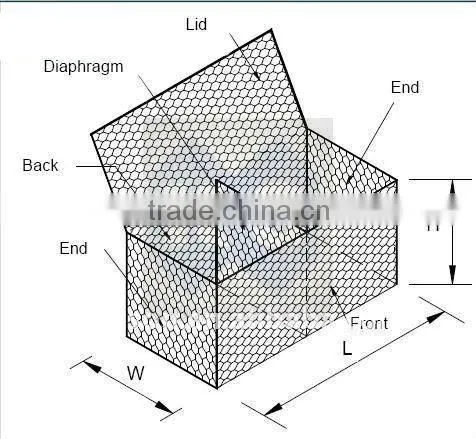

2. Drawing
Opening (mm) |
Wire Diameter(Metal Wire) (mm) |
Wire Diameter (PVC Coate)/ Inner/Outside(mm) |
Strands |
60X80 |
φ2.0-2.8 |
φ2.0/3.0-2.5/3.5 |
3 |
80X100 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
80X120 |
φ2.0-3.2 |
φ2.0/3.0-2.8/3.8 |
3 |
100X120 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
100X150 |
φ2.0-3.4 |
φ2.0/3.0-2.8/3.8 |
3 |
120X150 |
φ2.0-4.0 |
φ2.0/3.0-3.0/4.0 |
3 |
(The production's material and size can be producted as the customoer's requirement.)
4. Gabion boxes applications
1. Coastal Protection
2. Building blocks of gravity walls
3. Reinforced structure
4. Control and guide of water or flood
5. Flood bank or guiding bank
6. Preventing of rock breaking
7. Bridge protection
8. Strengthening structure of soil
9. Protect the engineering in seaside area
5. Characterstics
1. Economcal. It only needs to load a stone cage that can be sealed.
2. Simple construction. Special skills is hardly needed.
3. A strong withstand natural damage and influence of adverse climate. It can also resist errosion.
4. Be able to stand large-scale deformation, and will not collapse.
5. Cage rock crevice between the mud can be used to plant production which enables the surrounding natural environment to melt together.
6. Has good permeability to prevent static fluid from causing damage.
7. Save transportation costs. Can be folded up and assembled on site.
6. Customers and Certificates
7. Company Information
Konson Industrial Company Limited, with more than 15 years production experience, becomes one of the leading manufacturers of the gabions, mattress and gabion production line in China. We would like to offer good service and excellent products to customers wholeheartedly!
The company, with more than 100 experienced employees, has two workshops, one is for the gabion machine making, the other is for the gabion&mattress making. It has a production facility of more than 10 complete sets of gabion production line and four million square meters hexagonal wire mesh(gabion box) each year.
8. Packing and shipping

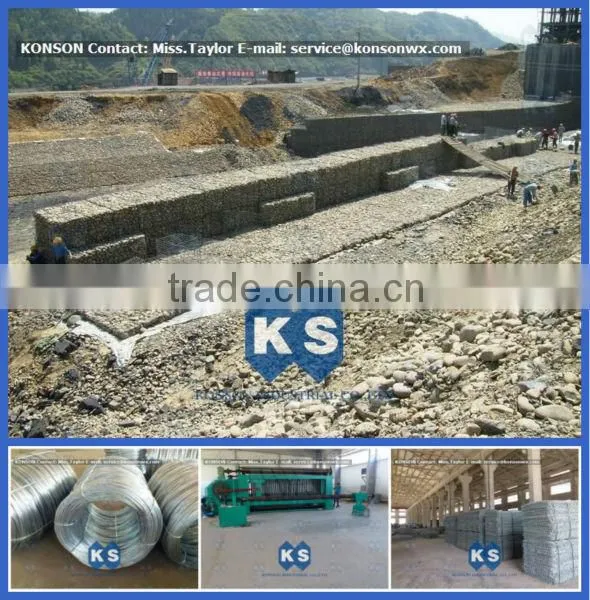

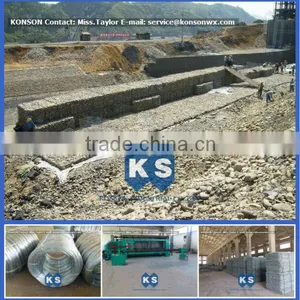

9. Project Photo
project and workshop
10. Our services
1. We can offer any sizes of gabion mesh, baskets or boxes according to the requirements of customers.
2. We will reply you as soon as possible upon receving your request of your products.
3. We can provide you with samples free of charge.
