backwashing strainer
Introduction

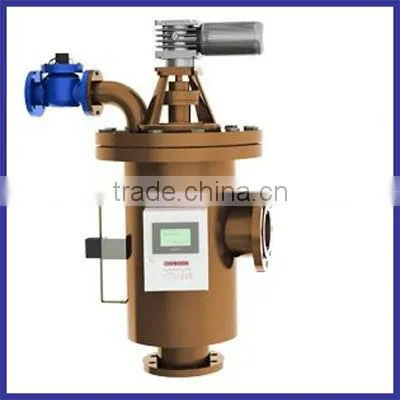

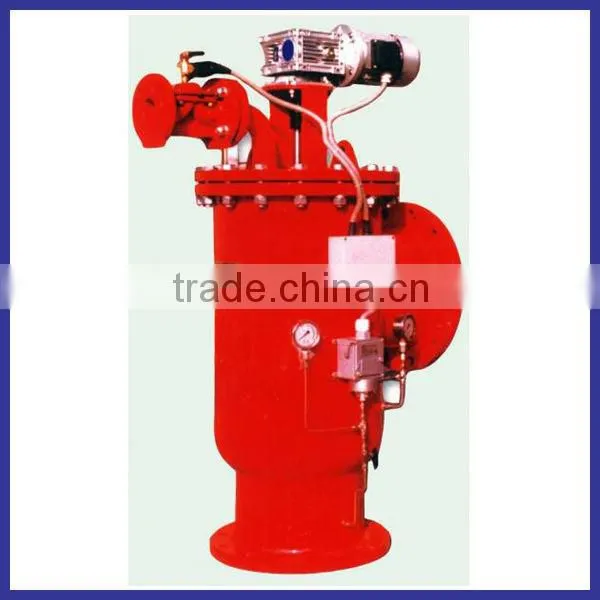

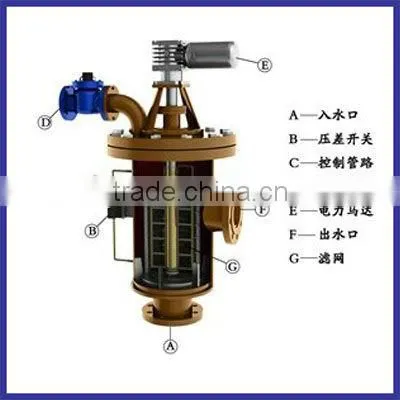

The ABWF back-washing filter is make up of housing, multi-filter element , back-washing mechanism , electric control box , motor , electric sewage valves and pressure control , pressure relief valve , exhaust valve . Diaphragm within the shell cavity is divided into the two cavities , the cavity is equipped with multiple filter , so that full use of the filter space , significantly reducing the volume of the filter and lower cavity installation of backwash arm and backwash whipsaw . The filter uses a unique backwash design , use main pipe water pressure to backwash , no need to set up a dedicated backwash water , can ensure the machine working non-stop .
backwashing strainer
Use cope:
- An industrial circulating water filtration---water quality equipment such as : cooling towers , rolling mill , continuous casting machine , polishing machine , electric ion exchange , sprayers , heat exchangers , etc . for the drain pipe on the road can be filter out impurities in the water , to prevent parts congestion .
- The original water treatment---filter to remove sand , bacteria , algae , organic matter and so on the surface of the river , lake , reservoir water , well water and groundwater , water filtration for boiler wet dust , for the water filter .
- The cooling water treatment---cooling towers , add water systems , air conditioning system , DC system water filtration , to reduce the generation of sediment in the heat exchanger , to maintain its cooling effect , power plant turbine cooling .
- Such as metallurgy , petrochemical , food and pharmaceutical industries---liquid industrial waste water has been emulsion regeneration and used oil filter processing : casting water , blast furnace , water system , hot-rolled high pressure phosphorus removal system .
- Paper making industry---white water filtration
- Plastics industry---recycling cooling water filter
Modle |
DN(mm) |
Flow (m3/h) |
Filtr.(um) |
pressure(MPa) |
Pressure lose(MPa) |
Backwash water flow |
Backwash time(s) |
Total motor |
Filter material |
|
Initial |
Max |
|||||||||
ABWF-100×* |
100 |
60-120 |
Microwell plate≥500 Wedge net≥50 Woven mesh≥20 |
1.6 |
≤0.05 |
0.15 |
water flow≤1/1000 |
80-120 |
≤0.3 |
Carbon steel Stainless steel |
ABWF-150×* |
150 |
150-170 |
||||||||
ABWF-200×* |
200 |
210-300 |
≤0.4 |
|||||||
ABWF-250×* |
250 |
380-450 |
||||||||
ABWF-300×* |
300 |
560-700 |
≤0.5 |
|||||||
ABWF-350×* |
350 |
750-1000 |
||||||||
ABWF-400×* |
400 |
960-1220 |
≤0.6 |
|||||||
ABWF-450×* |
450 |
1260-1540 |
||||||||
ABWF-500×* |
500 |
1740-2000 |
≤1.0 |
|||||||
ABWF-600×* |
600 |
2880-3000 |
||||||||
ABWF-700×* |
700 |
3100-3400 |
≤1.5 |
|||||||
ABWF-800×* |
800 |
3700-4500 |
≤1.8 |
|||||||
ABWF-900×* |
900 |
4500-5600 |
≤2.5 |
|||||||
ABWF-1000×* |
1000 |
5800-7000 |
≤3.0 |
|||||||
backwashing strainer
...
