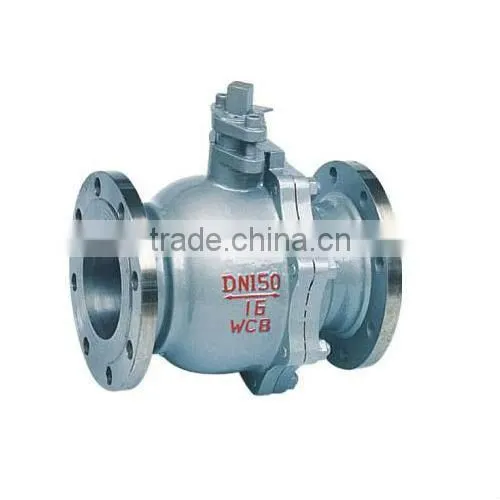

RF End Stainless Steel Ball Valve

RF End Stainless Steel Ball Valve thumbnail-1
RF End Stainless Steel Ball Valve photo-1
US$ 10 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Wenzhou Jiasheng Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Manual
Material Stainless Steel
Temperature of Media Normal Temperature
Media Water
Port Size ANSI B16.5
Place of Origin Zhejiang, China
Model Number JSVQ007
Brand Name JSV

Specifications

1. Good sealing performance.
2. Easy installation and maintenance.
3. Compact structure, smooth opening and closing.

Detailed Product Description





1. Good sealing performance.
2. Easy installation and maintenance.
3. Compact structure, smooth opening and closing.



Carbon Steel Ball Valve



1. Standards:

 Design & Manufacture  API6D, API 608
 Face to Face  ANSI B16.10, API6D
 Flange End  ANSI B16.5
 Inspection & Test  API 598, API6D



2. Technical Data:

Nominal Pressure 150LB 300LB  400LB  600LB
Shell Test Pressure 3.1 7.5 10.2 15.0
Hydraulic Seal Test 2.2 5.5 7.48 11.0
Air Seal Test 0.5~0.7 0.5~0.7 0.5~0.7  0.5~0.7
Applicable Medium water, oil, steam, acid water, oil, steam, acid  water, oil, steam, acid  water, oil, steam, acid
Applicable Temperature less than 200°C less than 200°C less than 200°C  less than 200°C



3. Material Specification:

Description WCB CF8 CF3 CF8M CF3M
Body & Body Cap A216-WCB A315-CF8 A35-CF3 A351-CF8M   A351-CF3M
Ball A105-1025, A216-WCB A182-F304L, A315-CF8M A182-F304L, A351-CF3  A132-F316, A351-CF8M  A182-F316L, A351-CF3M
Stem A182-F6a A182-F304 A182-F304L  A182-F316  A182-F316L
Seat RPTFE, PTFE, NYLON RPTFE, PTFE, NYLON RPTFE, PTFE, NYLON  RPTFE, PTFE, NYLON  RPTFE, PTFE, NYLON
Seat Retainer A105-1025
Spring 3yc-7, 17-49H 3yc-7, 17-49H  3yc-7, 17-49H  3yc-7, 17-49H  3yc-7, 17-49H
O-ring NBR VITON  VITON   VITON   VITON
Stud A193-B7 A193-B8  A193-B8   A193-B8   A193-B8
Nut A194-2H A194-8  A194-8   A194-8   A194-8
