Specifications
low fuel consumption silent ricardo generator1.ISO certificate
2.Rated output:24-200KW
3.Rated speed:1500rpm
4.MOQ:1 set.

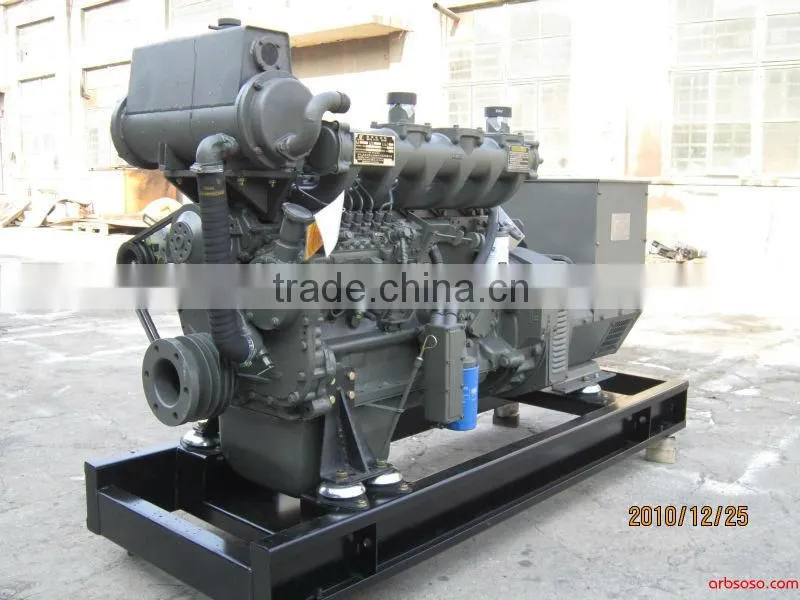

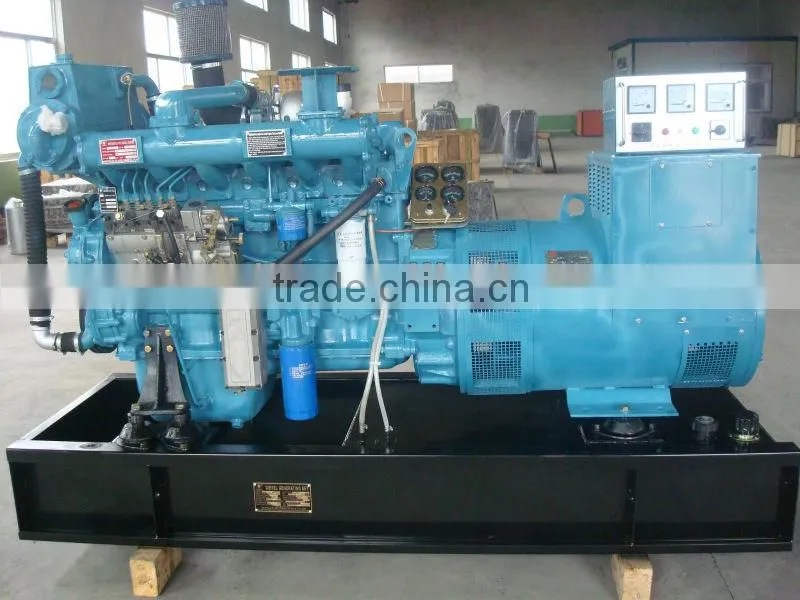

low fuel consumption silent ricardo generator
1, 20kw~250kw Ricardo generator
Ricardo diesel engine is basic on the introduction of foreign(Ricardo Britain) advanced diesel engine technology and developed which is characterized by economical fuel consumption,low noise,powerful,stable operation and reliable performance.
2,Main specification
a,3-Phase, 50Hz@1500RPM, 400/230V (Also Can Be Made According To Customers' Special Requirements)
b,12V/24V DC start motor and storage battery
c,Brushless, Self-excited, IP23, insulation class H alternator
d, 40°C radiator as standard, 50°C is optional
e,Key start panel control system as standard, digital auto-start panel is optional
f,All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
3,Data of Generator Set
Prime Power |
20kw-250kw |
Standby Power |
22kw-275kw |
Rated Speed |
1500rpm |
Output Frequency |
50hz/60hz |
Phase |
3 |
Rated Voltage |
400v |
Engine Brand |
Ricardo |
Alternator Brand |
Stamford |
Fuel Consumption |
4L-200L |
Fuel Tank capacity |
8 hours |
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
4,Engine Specification
Model |
K4100D,K4100ZD,R4105ZD,R6105,R6113,R6126,STD12D |
Cooing Method |
Forced water cooling |
Rotating speed |
1500/1800rpm |
Governor system |
electrical or mechanical governor |
Aspiration mode |
natural aspirated or turbocharged |
Starting method |
12/24V DC electric starting |
Stroke |
4 stroke |
5,Alternator Specification
Alternator Brand |
Stamford,Engga,Mecc-alte,Marathon ... |
Exciter Type |
Brushless, Self-excited |
Rated Speed |
1500/1800rpm |
Rated Frequency |
50/60hz |
Phase |
three or single |
Rated Voltage |
400V (Available with customer requirements) |
Power |
0.8 |
Voltage Adjust Range |
≥5% |
Protection Grade |
IP22 |
Insulation Grade |
H |
6,Digital Control Panel
Controller Brand: Smartgen
Control Panel: English interface,LED screen and touch buttons.
Main Functions:
1- Display loading power, voltage, currenct, frequency, speed, temperature, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Over load protection, over/under frequency protection, over/under/imbalance voltage protection, and low oil shutdown.
7,Warranty and Maintenance
1) Do the full power load test for five hours before package.
2) One year or 1000 working hours, whichever comes first.
3) After expiration, we provide spare parts maintenance with low price.
