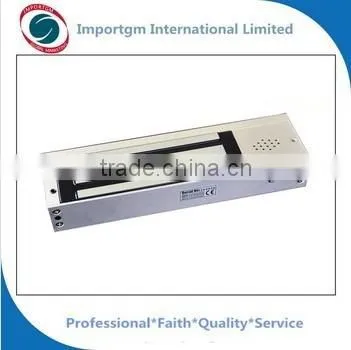

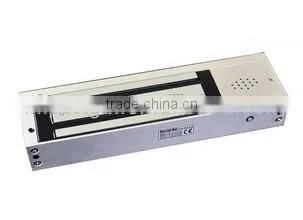

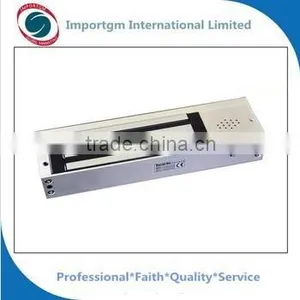

Help CenterBest Price 500kg/1200Lbs Single Door Magnetic Lock(Buzzer) for Access Control System
Related Products
-
Single Door 500KG/1200Lbs Magnetic Lock for Access Control SystemNegotiableMOQ: 10 Pieces -
280kg 600Lbs Single Door Electromagnetic Magnetic Lock With LEDUS$ 9.29 - 32.9MOQ: 1 Piece
-
280kg Single Door Enforcer Electromagnetic Lock With 600 Pound Holding ForceUS$ 10.9 - 30.9MOQ: 1 Piece
-
280kg 600Lbs Electric Magnetic Lock With Mortise MountUS$ 11.9 - 30.9MOQ: 1 Piece
-
Single Door 280kg 600Lbs Electric Magnetic Electromagnetic LockUS$ 9.9 - 30.9MOQ: 1 Piece
Specifications:
Model item: IGM-500BZ
IGM-500BZ single door electric lock with buzzer and suitable for wooden door, fireproof door, sliding door and metal door and .When set up 1-30 as door close time, if the door doesn’t close after 30secs, it will alarm till the door close.
Production details
| Product Parameter | Parameter Description |
| Size | 282Lx71.8Wx38.8H(mm) |
| Armature plate | 185Lx60Wx13H(mm) |
| Holding Force | 500kg(1200Lbs) |
| Voltage | 12 or 24VDC |
| Current Draw | 12V/420mA or 24V/210mA |
| Signal Output | Dry Contact,Max Rating of Contact Current 3A |
| LED | Red indicates the door is unlock,Green indicates the door is lock |
| Buzzer | 5/10/20/30sec |
| Suitable for | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20°C |
| Operating Temp | -10~+55°C(14-131F) |
| Suitable Humidity | 0~95%(non-condensing) |
| Finishes for Shell | Anodized aluminum |
| Finishes for Magnetic | Zinc |
| Finishes for Armature | Zinc |
| Weight | 4.5kg |
Advantages
Collinear Load Test 500kg,1200pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.
