Specifications:

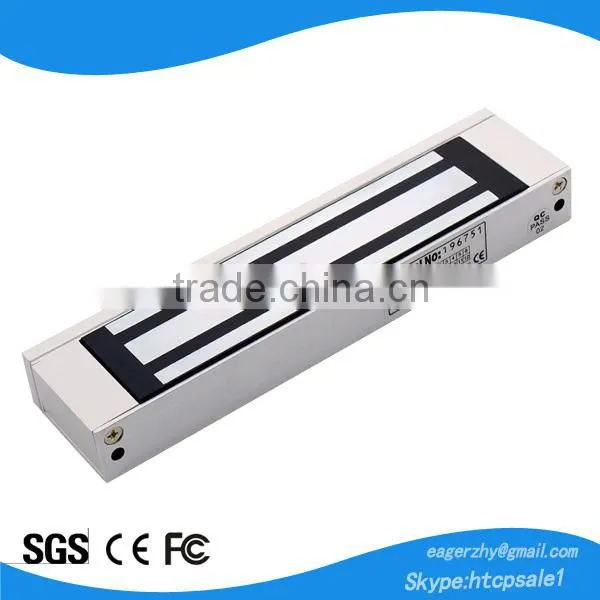

180kg 350Lbs Single Door Biometric Door Locks
1. Holding Force:180kg(350Lbs)
2.Voltage:12/24VDC+10%
3. Single Door: Yes
4. Reasonable Price and high quality
Introduction:
EL-180 Single door electric lock is for glass door, wooden door, small size door, easy to install.

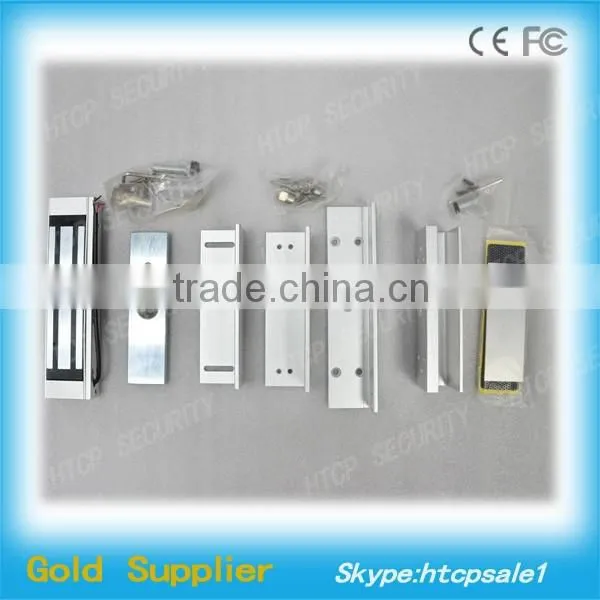

Accessories are available for inswing door,glass door, narrow doorframe door and so on. Special
anti-residual magnetism designed makes the access control.
Single Door Biometric Door Locks Spec:
Product Parameter |
Parameter Description |
Size |
170Lx41.4Wx20.5H(mm) |
Armature Plate Dimension |
130Lx33Wx9.3H(mm) |
Holding Force |
180kg(350Lbs) |
Input Voltage |
12/24VDC+10% |
Current |
12V/300mA 24V/150mA |
Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp |
≤+20℃ |
Operating Temp |
-10~+55℃(14-131F) |
Humidity |
0~90%(non-condensing) |
Cover Finish |
Anodized aluminum |
Lock Finish |
Zinc |
Armature Plate Finish |
Zinc |
Weight |
1.2KG |
Advantage:
Collinear Load Test 180kg,350pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standad Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magneism Designed.
High Strength Material,Anodized Aluminum Housing.
Design with no Mechanical Bolt.
Increase the holding Force,Dual Insulative Hosing.
CECertificate by European Union,MA Certificate by China Public Security Office.
About us:
We are one very professional electric lock products supplier since 2006, we had provided millions of various
high quality electriclock including electromagnetic lock e.g. 60kgs/70kgs/180kgs/280kgs/350kgs/500kgs/750kgs,
very low temperature electric bolt lock and strike lock... and the peripheral door access control items exit switch,
power supply…
We focus on quality and services as No.1. Trust you would be very impressive of our products and services if you try!
We appreciate any opportunity to cooperate with you!

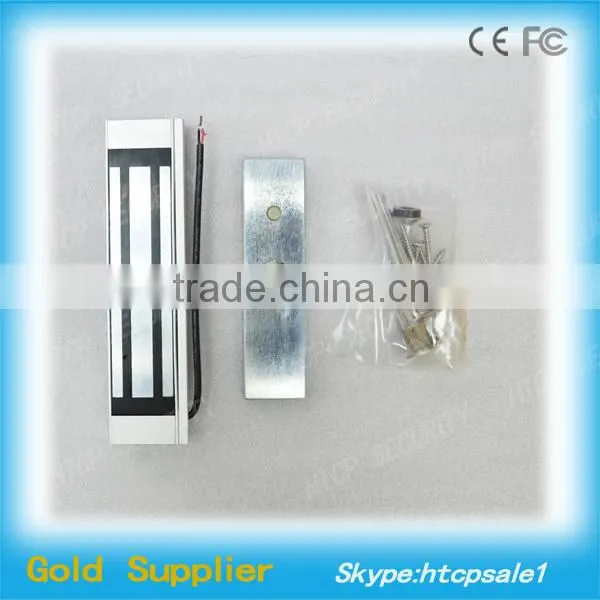

Product Photo
Product Certification
Our Factory
Our Advantage
1. Original High Quality Products:
All of our products are Original High Quality Products, We have strict quality control system, they are 100% tested before factory,
we don’t sell products with only low prices.
2. Professional Technical Team:
We can offer comprehensive solution for your projects.
We can offer detailed pre-sales requirements analysis and guide.
We can offer professional remotely technical support for problems.
3. Flexible Customization: We can customize software, firmware for customers requirements.
4. OEM,ODM service: We can design and produce machines with your own logo.
5. Good Service: We treat clients as good friend.
6. Special offers: We have special offers for long-term cooperation clients.
Payment Terms
1. Paypal or Escrow for small sample orders
2. T/T (Telegraphic Transfer) or Western Union / Moneygram
3. L/C(Letter of Credit) for high value orders
4. Cash for face to face business
Shippment Method
1. International Express(DHL, TNT, Fedex, UPS, EMS, Aramex), take about 3-7 days
2. International Airline, take about 5-15 days differently.
3. International Sea Shipping, slow but cheap for heavy goods, take about 10-50 days differently.
4. by POST , slow but cheap for small package, take 10-60 days.
Product Warranty
We provide 1~2 years warranty from the date of delivery but lifetime technical support.
