Specifications:

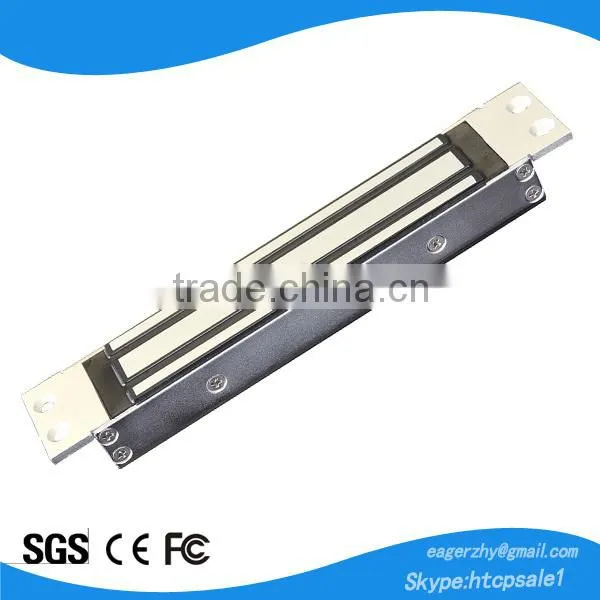

Single Door 280kgs 600Lbs Mortise Mount Electromagnetic Lock
1. Holding Force:280kg(600Lbs)
2.Voltage:12 or 24VDC
3. Single Door:Yes
4. Reasonable Price and high quality
Electromagnetic Lock Introduction:
EL- 280M single door electric lock is for glass door, wooden door, fireproof door, metal door. Mortise mount and
easy to install . Accessories for inswing door,frameless glass door,narrow doorframe door and so on are available.
Electromagnetic Lock Spec:
Product Parameter |
Parameter Description |
Size |
231.6Lx41.6Wx24.5H(mm) |
Armature Plate Dimension |
180Lx38Wx11H(mm) |
Holding Force |
280kg(600Lbs) |
Input Voltage |
12 or 24VDC |
Current |
12V/500mA or 24V/250mA |
Suitable |
Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp |
≤+20℃ |
Operating Temp |
-10~+55℃(14-131F) |
Humidity |
0~90%(non-condensing) |
Cover Finish |
Anodized aluminum |
Lock Finish |
Zinc |
Armature Plate Finish |
Zinc |
Weight |
2.1kg |
Advantage:
Collinear Load Test 280kg,600pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
