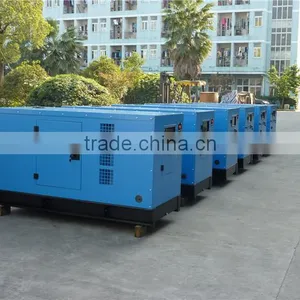

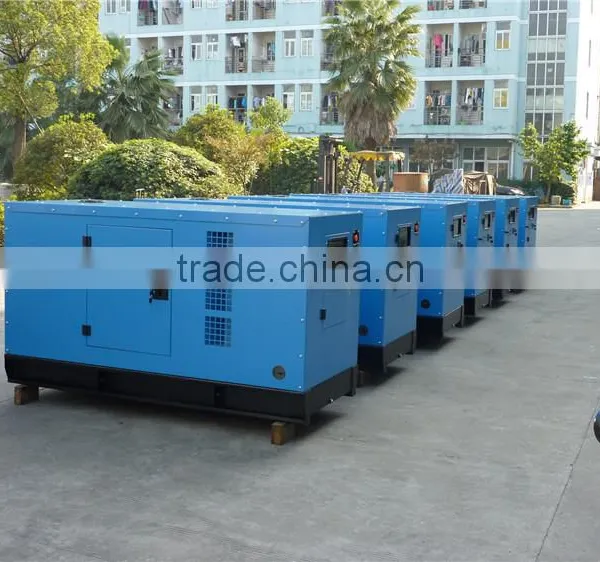

silent generator with Stamford , ENGGA , Marathon , HL20GF 20KW/25KVA electric diesel generator price
Genset model |
GF-25 |
||||||
Prime power(KW/KVA) |
20/25 |
||||||
Standby power(KW/KVA) |
22/27 |
||||||
Power factor |
0.8 |
||||||
Rated frequency (Hz) |
50/60 |
||||||
Rated voltage(V) |
400 / 230,380/220 |
||||||
Rated current(A) |
144 |
||||||
Dimensions (L x Wx H)(mm) |
2300*800*1560 |
||||||
Weight(kg) |
1350 |
||||||
Diesel engine | |||||||
Manufacturers |
: weichai |
||||||
Model |
:4100D |
Max output power(KW) |
:30 |
||||
Cylinders/arrangement |
:4/L |
Air intake way |
:Turbo-charged |
||||
Bore×stroke(mm) |
:105×125 |
Fuel specifications |
:Light diesel oil |
||||
Engine speed(rpm) |
:1500 |
Fuel consumption rate(g/(kw/h) |
:202 |
||||
Oil capacity(L) |
:14-17 |
Starting method |
:Electrical starting |
||||
Cooling way |
:Closed-loop water cooling |
Strokes |
:4 |
||||
Displacement,total(L) |
:6.871 |
Oil consumption rate |
:1.5 |
||||
Generator | |||||||
Manufacturers |
:Stanford(HK),ENGGA,Marathon |
||||||
model |
:CT-224G |
Exciter type |
:Mutual excitation |
||||
Connecting type |
:3 phase,4 wires |
Steady voltage regulation rate |
:≤±1.0% |
||||
Insulation class |
:H |
Voltage control |
:AVR |
||||
Protection class |
:IP22 |
Overload capacity |
:110% 1h |
||||
Main Products:
Professional diesel generator OEM factory.
Cum Engine Genset;
Per Engine Genset;
China Engine Genset;
ISU Engine Genset;
Kubo Engine Genset;
Lov Engine Genset;
Diesel Welding Genset;
Diesel Water Pump;
Genset Spare parts
Production Line of Product
Our Diesel Generator Set Production Range is as follows:
* Engine (motor) for Choice
1. Cum (USA ) 20KVA - 2000KVA
2. Deutz (Germany) 20KVA - 150KVA
3. Per (UK) 8KVA - 2000KVA
4. ISU (Japanese) 20KVA - 40KVA
5. Lov(China) 20KVA - 150KVA
6. Yangdong (China) 8KVA - 50KVA
7. Weichai (China) 8KVA - 150KVA
8. Shanghai Engine
9. Yuchai Engine
10. KUBO Engine 10KVA - 50KVA
*Canopy for Choice
1. Silent type (75- 80 dB(A) at 7 meters)
2. Super Silent type (65-70 dB(A) at 7 meters )
3. Open type
4. Trailer type (mobile)
5. Container Type
6. Parallel System
* Alternator for Choice (brushless with AVR)
1.Stamford Newage
2.Leroy Somer
3.Marathon
4.Leateck
Good Reasons Why You Choose Horlion Generator:
1.Professional Generator OEM factory in Guangdong.
2.16 years experience in generator and exporting.
3.High quality products at affordable prices.
4.Products lines verified by professional inspectors.
5. Place orders safety.
6. All engines and alternators are brand new and original - Credible.
7. Controller Deepsea or Smartgen -BIG Brand.
8. Air Breaker ABB CHNT Schneider ASK - Safety.
9. 1% parts free are available for your order.
Alternator Features:
1.World famous brand AC alternator: Stamford, Leroy somer, Marathon, Faraday, copy Stamford
2.Brush less with AVR
3.Brush less 4 poles, rotation magnet
4.AVR Voltage regulation less than ±1%,AVR self-regulated
5.Protection class IP23
6.Insulation system is class “H”
Control System Features:
Standard Smartgen 6120 or Deepsea DSE6020
Language Display: English; Spanish; Russian; Chinese
Data Display: Power, Voltage, Current, Frequency, Speed, Oil pressure, Water Temperature, Fuel Level
Protection (auto alarm system):High voltage; Low voltage; High Speed; Low Speed; Over Current; Lose Phase; Low oil pressure; High water temperature
Functions: Auto start; Auto stop; ATS(auto transfer system);AMF(auto mains failure system)
