Home > Manufacturing & Processing Machinery > Laser Equipment > Laser Welding Machine > Series Stone Welding Rack

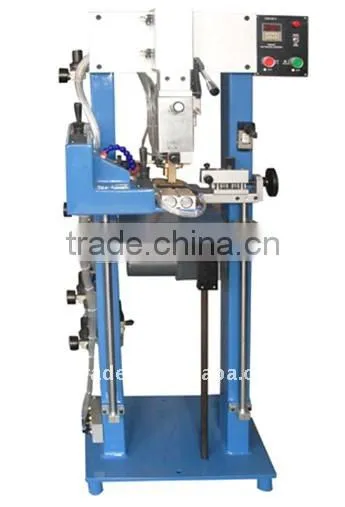

Series Stone Welding Rack
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
TIANJUN
Model Number:
TJ-LQK
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2014 Diamond Blade Welding FrameUS$ 3,000 - 5,000MOQ: 1 Unit -
TJQQ Overhead Crane,stone Carrying CraneUS$ 3,000 - 6,000MOQ: 1 Unit
-
TJQC-Crane(5-50/10T)NegotiableMOQ: 1 Unit
-
Stone Turnover Machine for BlockUS$ 10,000 - 13,000MOQ: 1 Unit
-
TJ45 Turning Machine,block Turnover MachineUS$ 13,300 - 13,400MOQ: 1 Unit
Place of Origin
Fujian, China
Brand Name
TIANJUN
Model Number
TJ-LQK
Weight
272-340
Usage
Stone machine
Specifications
1. Can use in many style welding machine,2. It is easy to operate.
ure of air power:0.8MPA
| Model | LQK-18 | LQK-22 | LQK-25 | LQK-30 | |||
| Welding range(diameter) | mm | φ300~φ1900 | φ300~φ2300 | φ350~φ2600 | φ350~φ3100 | ||
| Verticality | mm | ≤±0.03 | ≤±0.03 | ≤±0.03 | ≤±0.03 | ||
| End beating | mm | ≤±0.03 | ≤±0.03 | ≤±0.03 | ≤±0.03 | ||
| welding speed(φ2350) | pc/h | 6—11 | 6—11 | 6—11 | 6—11 | ||
| pressure of air power | mpa | 0.8 | 0.8 | 0.8 | 0.8 | ||
| pressure of water power | mpa | ≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 | ||
| Motor | w | 400 | 400 | 400 | 500 | ||
| Aater consumption | m3/h | 2 | 2 | 2 | 2 | ||
| weight | kg | 272 | 280 | 300 | 340 | ||
| Overall dimensions | mm | 800×830×1830 | 800×830×1860 | 850*830*2000 | 900*1000*2300 | ||
