Home > Manufacturing & Processing Machinery > Plastic Machinery > Plastic Granulator > Plastic Recycling Machine With Two Stage (EN-SD)

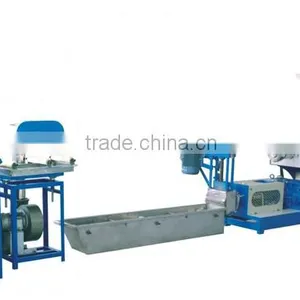

Plastic Recycling Machine With Two Stage (EN-SD)
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Recycling Granulator
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
EN-150/300 Plastic Film GranulatorUS$ 20,000 - 30,000MOQ: 1 Set -
EN-250/500 Plastic Crush MachineUS$ 20,000 - 30,000MOQ: 1 Set
-
Plastic Film Granulating Machine (EN-150L/300L)US$ 1,000 - 10,000MOQ: 1 Set
-
Plastic Pelleting Reproduction Machine(EN-SK)US$ 8,000 - 12,000MOQ: 1 Set
-
Water Cooling Hot Cutting Plastic Film Recycling Machine (EN-SK)US$ 8,000 - 12,000MOQ: 1 Set
Condition
New
Type
Recycling Granulator
Place of Origin
Zhejiang, China
Brand Name
ENOCH
Material
PP/PE
Screw Design
Single
Certification
SGS
Warranty
ONE YEAR
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1. Plastic Grinding Milling Granulator

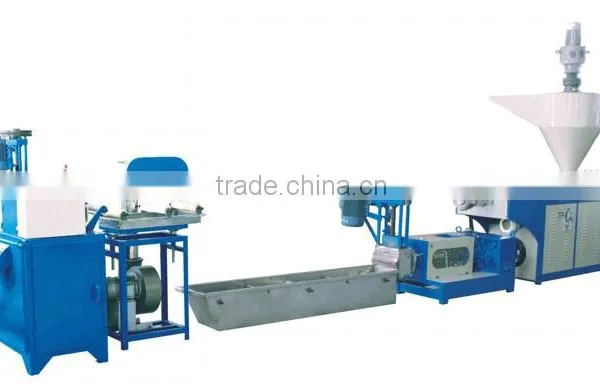

Plastic Recycling Machine With Two Stage
Perfirnabce and Characteristics This machine is suitable for regeneration and granulation of waste plastics, HDPELDPE and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistically. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
| Model | SJ-D135/110 | SJ-D120/110 | |
| Diameter of screw(mm) | Main screw | 135 | 120 |
| Sub-screw | 110 | 110 | |
| L/D Ratio | Main-screw | 20: 1 | 20: 1 |
| Sub-screw | 10: 1 | 8: 1 | |
| Power of motor (mm) | Main screw | 55 | 37 |
| Sub-screw | 15 | 11 | |
| Speed of screw(r/min) | 10-120 | 10-120 | |
| Total heating power(kw) | 60 | 50 | |
| Cap city (kg/h) | 150-200 | 120-150 | |
| Power of cutter | 3 | 2.2 | |
| Weight(kg) | 5000 | 3000 | |
| Dimensions | 6500× 4000× 1500 | 6000× 3500× 1500 |
