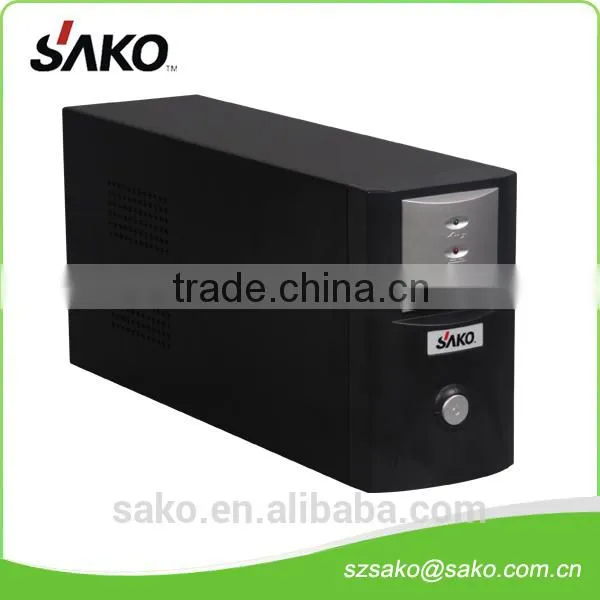

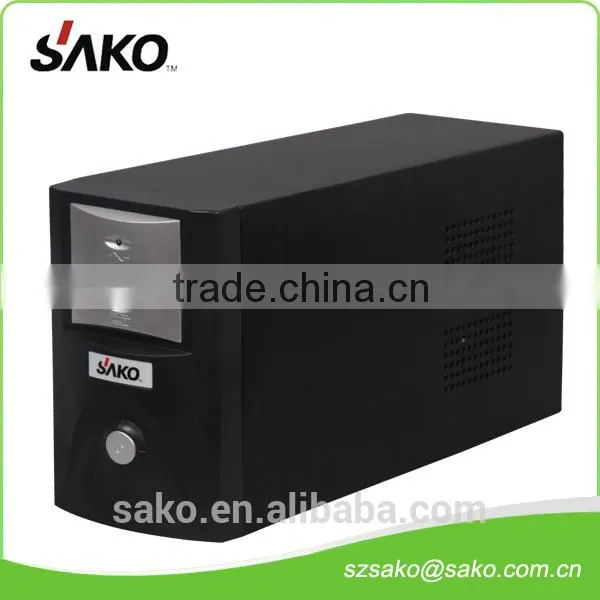

Help CenterPCH Series Off-Line UPS
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
PCH-500VA
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
PCK 500-1500VA Standby UPSNegotiableMOQ: 1 -
UPS (Uninterruptible Power Supply)NegotiableMOQ: 1
-
Line Interactive UPS 400VA-1500VA for ComputerUS$ 18 - 38MOQ: 500 Pieces
-
Line Interactive UPS 400VA-1500VA for ComputerUS$ 18 - 38MOQ: 500 Pieces
-
501 Series Offline UPS From 600VA-1500VAUS$ 23 - 60MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
SAKO
Model Number
PCH-500VA
Phase
Single Phase
Protection
Short Circuit
Application
Security / Monitoring / Alarm
Specifications
SAKO UPS is economic & compact power supply products, specially designed for PC office automation from suffer of power failure1Automatic voltage ragulation(AVR)
2Wide Input Voltage Range Option
3High/Low Voltage Protection
3Overload/Short Protection
4Cool start even there is no main power
5Automatic recharge even UPS is off
6Beeping Alarm
7LED display
8Frequency Selection Automatically
9Intelligent Battery Management
10Smart RS232 and RJ11 Option
11Compatibility with generators
| Product | Requirements | Model 1 | Model 2 | Model 3 | Model 4 | Model 5 |
| Power (VA) | PCH-500 | PCH-650 | PCH-800 | PCH-1000 | PCH-1500 | |
| Input | Voltage | 120 VAC or 220/230/240VAC ±25%(145-280V±5V, 130-280V±5V Option) | ||||
| Frequency | 50Hz+/-10% | |||||
| Output | Voltage (Inverter Mode) | 120 VAC or 220/230/240VAC ±10% | ||||
| Capacity | 500VA/300W | 650VA/360W | 800VA/480W | 1000VA/600W | 1500VA/880W | |
| Frequency (Inverter Mode) | 50/60Hz+/-10% | |||||
| Transfer Time | 6MS typical | |||||
| Waveform | modified-Sinewave | |||||
| Protection | Spike & Surge Suppression | yes | ||||
| Over/Under Volt. | Switch to Bat. O / P when Mains over regulation range | |||||
| Over load /short Circuit | Fuse & current linited for both Mains and Battery modes | |||||
| Function | Cool start | Cool start computer even there is no main power | ||||
| Automatic recharge | Automatic recharge even UPS is off | |||||
| Battery | Type | Lead-Acid miantenance-free | ||||
| Dc Bus | 12V7.0Ah | 12V9.0Ah | 12V7.0Ah | 12V9.0Ah | ||
| Number | 1 PC | 2 PCS | ||||
| Recharge time | 8hours≥90% | |||||
| Back up time(one PC) | 8-15mins | 10-18mins | 15-25mins | 20-30mins | 25-45mins | |
| Physical | Weight (KGs) | 5 | 5.5 | 6.5 | 10.5 | 11.5 |
| Shipping Wt. | 5.6 | 6 | 7 | 11 | 12 | |
| Product Dimensions (mm) | 335*95*160 | 355*120*195 | ||||
| Package Dimensions (mm) | 375*170*200 | 420*190*250 | ||||
| Soft ware | Windows & NT | Auto save & shut down | ||||
| Efficiency | AC-AC | 1 | ||||
| DC-AC | 0.6 | |||||
| Acoustic | Noise level | ≤45dB | ||||
| Environmental | Temperature | -5-45 DegreeC | ||||
| Humidity | 20% to 90% | |||||
| Power Outlets | No. and types | 2 SOCKETS | 3 SOCKETS | |||
