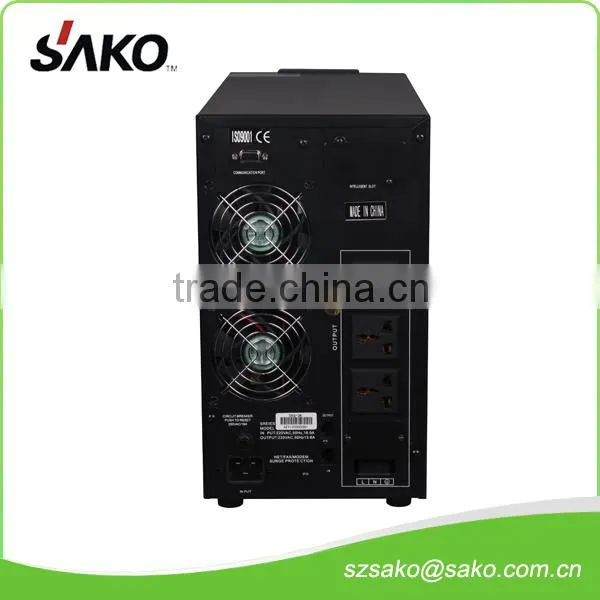

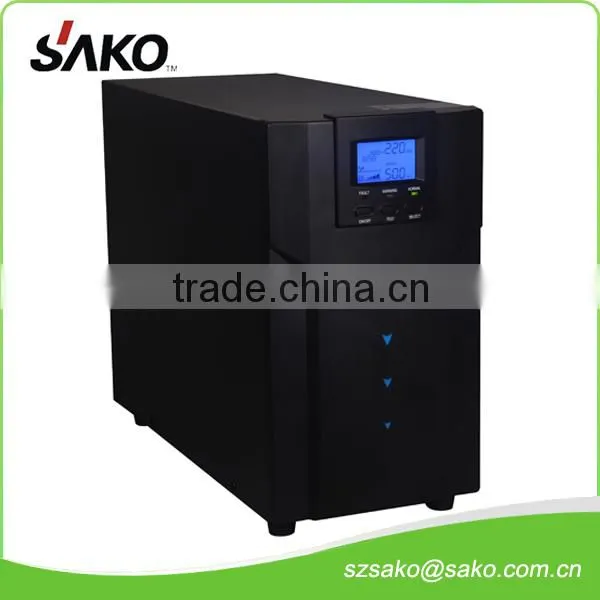

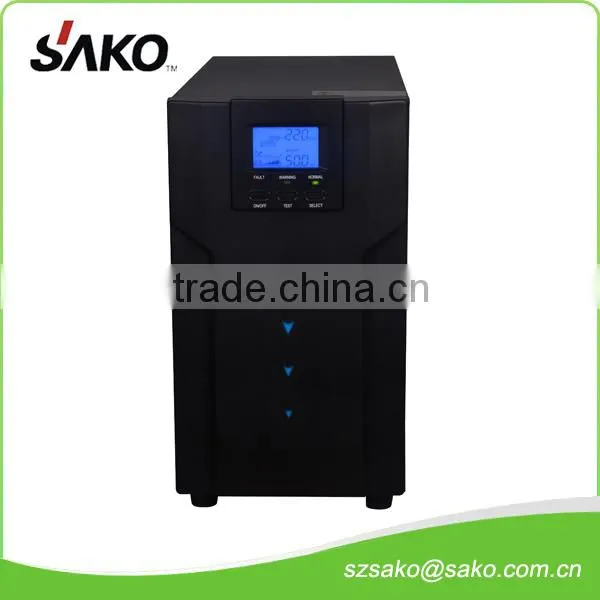

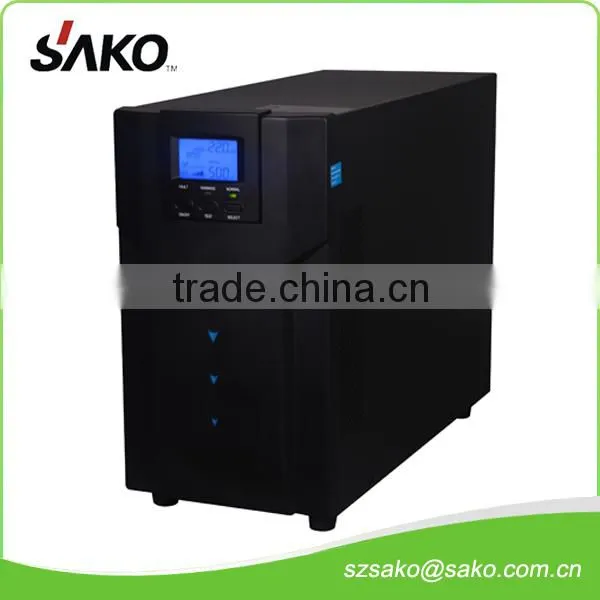

Online High Frequency Tower Type and Rack Mounted UPS SKG Series
US$ 100 - 120,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAKO
Model Number:
SKG
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UPS SKG-SeriesUS$ 20 - 100MOQ: 100 Pieces -
High Frequency Online UPS With Double ConversionUS$ 100 - 250MOQ: 10 Pieces
-
High Frequency Online UPS With Double ConversionUS$ 400 - 2,050MOQ: 10 Pieces
-
Online UPS Castle SKG C6-20KVAUS$ 100 - 1,500MOQ: 1 Unit
-
Online UPS With Double Convertion SKG 6-20KVAUS$ 100 - 1,500MOQ: 1 Unit
Place of Origin
Guangdong, China
Brand Name
SAKO
Model Number
SKG
Phase
Other
Weight
250kg
Output Voltage
220V
Type
On-line
Application
Telecommunications
Specifications
Feature:1) High Frequency And Double Conversion On-Line Technology
2) Fully Digitized Microprocessor Control
Product Description
APPLICATION:
Small Network Servers And Other IT Equipment
MAIN FUNCTION:
1) High Frequency And Double Conversion On-Line Technology
2) Fully Digitized Microprocessor Control
3) Wide Input Voltage Range
4) UPS Start Up Without Battery
5) Cold Start
6) Advanced Battery Management
7) Automatic Battery Charge In UPS Off Mode
8) Lightning And Surge Protection
9) Short Circuit And Overload Protection
10) Fan Speed Auto Control When Loads Varies
11) Optional Extension Battery Pack
12) EMI/RFI Noise Filter
13) Smart RS232 Communication With Monitoring Software
14) Optional SNMP Card Slot
15) Intelligent LCD Display
| SAKO SKG 1-3KVA Series TECHNICAL PARAMETER | |||||||
| MODEL SPECIFICATION |
SKG-1K | SKG-R1K | SKG-2K | SKG-R2K | SKG-3K | SKG-R3K | |
| SPECIFICATION | 1KVA/700W | 2KVA/1400W | 3KVA/2100W | ||||
| Input | Voltage Range (VAC) | When Load<70%, Input Range is 115±5VAC~295±5VAC or 60~138±5VAC | |||||
| When Load≥70%, Input Range is 160±5VAC~295±5VAC or 80~138 ±5VAC | |||||||
| Frequency Range (Hz) | 46~54Hz±0.5Hz | ||||||
| 56~64Hz±0.5Hz Auto Sensing | |||||||
| Phase | Single Phase | ||||||
| Power Factor (PF) | ≥0.97 | ||||||
| Output | Voltage Range (VAC) | 220VAC or 110VAC ± 2% | |||||
| Frequency Range (Hz) | 50Hz/60Hz ± 0.2% | ||||||
| THD (Linear Load) | < 3% | ||||||
| THD (Non-Linear Load) | < 6% | ||||||
| Overload Capability | > 110%, 30s Turn To Bypass Mode | ||||||
| > 150%, 300ms Turn To Bypass Mode | |||||||
| Crest Factor | 3:1 (Max) | ||||||
| Short Circuit Protection | 5 Cycles Turn Off Inverter, No Transfer To Bypass, Provide Alarm (AC Mode) | ||||||
| 5 Cycles Turn Off Inverter, Provide Alarm (Battery Mode) | |||||||
| Input Fuse Blown Or Breaker Action (Bypass Mode) | |||||||
| Waveform | Pure Sine Wave | ||||||
| Transfer Time Between AC Mode and Battery Mode |
Transfer Time: 0ms | ||||||
| Efficiency | ≥ 83% | ≥ 85% | |||||
| Battery | Model | 12V Sealed Lead Acid Maintenance Free | |||||
| DC Voltage (VDC) | 36VDC | 96VDC | |||||
| Battery | 3×12V/7AH | 8×12V/7AH | |||||
| Backup Time (Half Load) | 12min | 19min | 16min | ||||
| Backup Time (Full Load) | 5min | 8min | 5min | ||||
| Charge Current (Standard Unit) | 0.7A | 0.7A | 0.7A | ||||
| Charge Current (Long Time Unit) | 7.5A | 7.5A | 7.5A | ||||
| Recharge Time | 90% Capacity After 8 Hours Charging | ||||||
| Communication Interface | RS232 ; SNMP (Optional) | ||||||
| LCD Indication | Load level, battery capacity, battery mode, utility mode, inverter, bypass, overload, Fault | ||||||
| Noise Level (dB) | < 45dB | ||||||
| Environment | Temperature | 0°C ~ 45°C Degree | |||||
| Humidity | 0%~95% (Non-Condensing) | ||||||
| Altitude (m) | < 1500m | ||||||
| Storage Temperature | -25°C ~ 55°C Degree | ||||||
| Others | Standard Unit N.W./G.W. (KG) | 12/14KG | 13/15KG | 23/25KG | 27/29KG | 28/30KG | 32/34KG |
| Long Time Unit N.W./G.W. (KG) | 6.5/8KG | 7.5/9KG | 10.5/12.5KG | 11.5/13.5KG | 11.5/13.5KG | 11.5/13.5KG | |
| Dimension (W×H×D) mm | 145×220×355 | 483×382×88 | 190×433×318 | 483×382×88 | 190×433×318 | 483×382×88 | |
| Packing (W×D×H) mm | 245×540×343 | 587×550×254 | 337×615×487 | 592×665×292 | 337×615×487 | 592×665×292 | |
