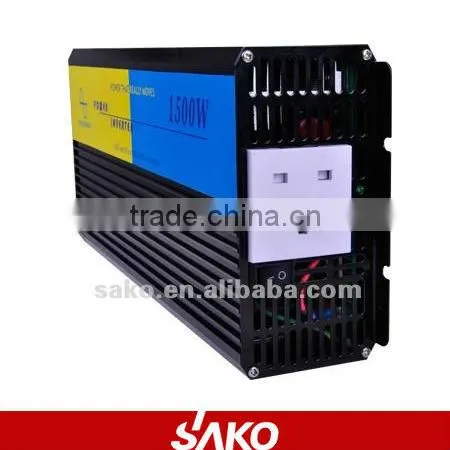

Pure Sine Wave Inverter SKN P 1500W 12V 24V 48V

Pure Sine Wave Inverter SKN P 1500W 12V 24V 48V thumbnail-1
Pure Sine Wave Inverter SKN P 1500W 12V 24V 48V photo-1
US$ 30 - 600 MOQ: 300 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM,ODM,SAKO
Model Number:
300W-5KW
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM,ODM,SAKO
Model Number 300W-5KW
Output Power 500 - 1000W
Output Type Single
Input Voltage 110v 220v
Output Voltage 110v 220v
Type DC/AC Inverters
Output Frequency 1500W
Output Current 6.8A

Specifications

HF technology
DC 12V 24V 48V
300W 500W 1000W 1500W 2000W 2500W 3000W 5000W
Out put 110V 220V optional
portable design



SAKO PURE SINE WAVE INVERTER SKN-P SERIES

1.Pure sine wave output (THD<3%)
2.Power ON-OFF switch
3.Input voltage range:-15% ~ +25%
4.Output voltage regulation:±10%
5.Thermo control cooling fan
6.Two-color indicators display power and fault status
7.Protections:short circuit, overload, over temperature, low
8.battery voltage, over battery voltage, lack-voltage alarm.
9.Topology: Microprocessor
10.Approvals: RoHS / CE / EMC / LVD
11.1 year warranty

Specification Model1 Model 2 Model 3 Model 5 Model 7 Model 8 Model 9 Model 10 Model 11 Model 12 Model 13
Max long term power output 300watt 500watt 600watt 800watt 1000 watt 1500 watt 2000watt  2500watt  3000watt 5000watt 6000watt
Spike output power(peak) 600watt 1000watt 1200watt 1600watt 2000 watt 3000 watt 4000watt 5000watt 6000watt  10000watt 12000watt
Input voltage range DC 10V-14.5V or 20V-29V
Output voltage range AC 110-120V / 220-240V  ±10%
Output frequency 60±3Hz / 50±2Hz
Output waveform pure sine wave
Optimum efficiency more than 87%
No load current draw  <=0.5A  <=0.6A  <=0.8A  <=0.8A  <=0.8A  <=0.8A  <=0.8A  <=0.8A  <=0.8A
Cooling Fan yes
Input over voltage shutdown 15.5V+0.5VDC/30.5V+0.5VDC
Input low voltage shutdown 10V+0.5VDC/20V±0.5VDC
Low battery alarming 10.5V+  0.3VDC/21+0.5VDC
Overload shutdown Yes
Over temperature shutdown >75°C
Operating temperature range -10°C ~ +50°C degrees centigrade
Storage temperature range -20°C ~ +60°Cdegrees centigrade
Test mark CE
products size mm 150*130*52 210*150*70 310*150*70 340*150*70 395*150*70 370*150*152 560*240*144
products weight NW(KG) 1.2±0.2 2.5±0.2 2.6±0.2 2.8±0.4 3.8±0.5 4.4±0.5 5.2±0.5 7.5±0.5 7.5±0.5 16±0.5 16±0.8
QTY/carton (pcs) 12 6 6 6 4 4 4 2 2 1 1
Package L×W×H( cm) 60*28*40 42*34*44 44*41.5*30 42*50*32 54*43*30 54*28*51 54*28*51 73*37*27.4
Weight(Kg) GW 15.4 15 15.7 16 15.4 17.4 21 17 17 15 15
qty in 20' (pcs) 4620 2590 1894 1540 1490 672 340
