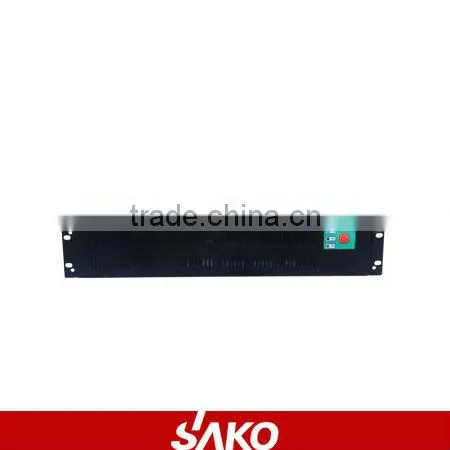

PCA SERIES OFF LINE RACK MOUNT UPS

PCA SERIES OFF LINE RACK MOUNT UPS thumbnail-1
PCA SERIES OFF LINE RACK MOUNT UPS photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
SAKO
Model Number:
PCA 500VA
Contact Supplier Request Quote Chat Now
Sako Electrical Group Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name SAKO
Model Number PCA 500VA

Specifications

SAKO PCA SERIES OFF LINE RACK MOUNT UPS
aaCPU control
aa Wide Input Voltage Range
aa Wide Input Frequency Range
aa


SAKO PCA SERIES OFF LINE RACK MOUNT UPS
Bitmap
CPU control

 Wide Input Voltage Range
Wide Input Frequency Range
High/Low Voltage Protection, Overload/Short Protection
Cool start computer even there isnt main power
Automatic recharge even UPS is off
Automatic restart
Beeping Alarm on Battery, Battery Low and Overload
Beeping Selection
Intelligent Battery Management
Intelligent LCD Display Option
Smart RS232 & RJ11& USB Option
Compatibility with generators


Product Requirements Model 1 Model 4 Model 5 Model 6
Power (VA) PCA 650 PCA 1000 PCA 1500 PCA 2000
Input Voltage 145-290VAC±5V
Frequency        50Hz+/-10%
Output  Voltage (AC Mode) 190-250VAC
Voltage (Inverter Mode) 220VAC ±5%
Capacity 650VA/300W 1000VA/600W 1500VA/880W 2000VA/1100W
Frequency (Inverter Mode) 50Hz+/-0.5Hz
Transfer Time  2ms typical
Generator connection Normal Working under the Generator
Waveform modified-Sinewave
Protection Spike & Surge Suppression yes
Over/Under Volt. Switch to Bat. O / P when Mains over regulation range
Over load /short Circuit Fuse & current linited for both Mains and Battery modes
Battery Type    Lead-Acid miantenance-free
Dc Bus 12V7.0Ah 12V9.0Ah 12V9.0Ah 12V7.0Ah
Number 1 PC 2 PC 3 PCS
Recharge time 8hours≥90%
Back up time(one PC) 10-18mins 14-20mins 25-45mins 30-45mins
Physical Weight (KGs) 5.5 10.5 11.5 17
Shipping Wt. 6 11 12 17.5
Product Dimensions (mm) 483*150*88mm 483*210*88mm
Packing Dimensions (mm) 587*230*210mm 592*310*292mm
Soft ware RS232 or USB option Windows & NT Auto save & shut down
Function Cold start UPS Start The Computer Even there Is no Main Power
Automatic Charge Automatic Charge when UPS is off
Automatic Restart Automatic Restart if main power coming within one hour
Voltage display 220v/230v Optional following the real capacity
Frequency 50HZ/60HZ Optioanl following the real
Beeping During the battery mode ,the beeping optional
Efficiency AC-AC 1
DC-AC 0.6
Acoustic Noise level ≤45dB
Environmental Temperature    -5-45 DegreeC
Humidity        20% to 90%
Power Outlets No. and types 4 IEC SOCKETS 6 IEC SOCKETS
