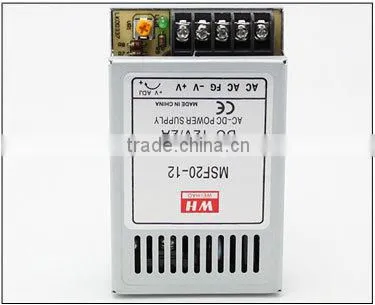

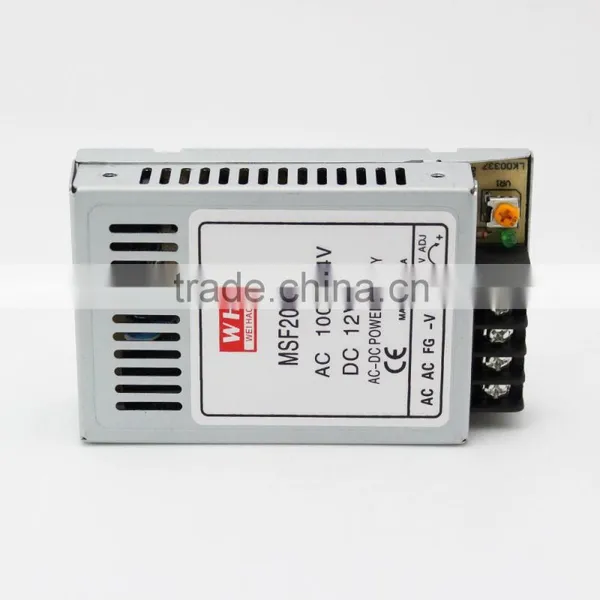

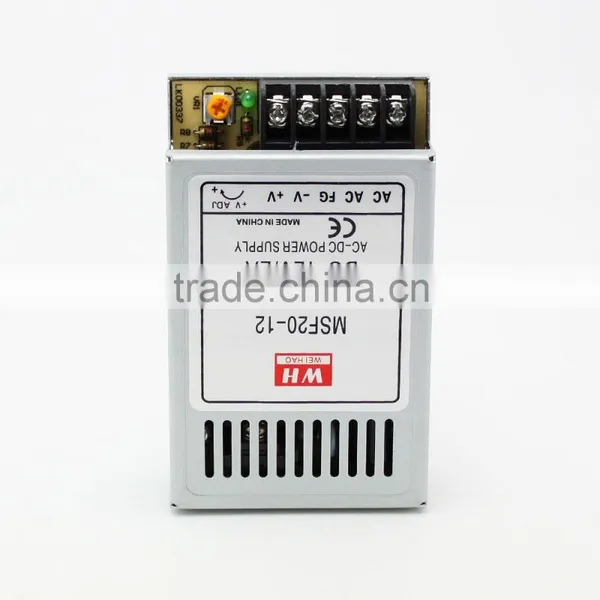

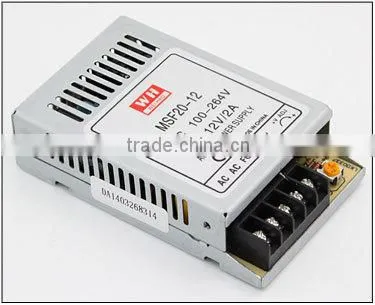

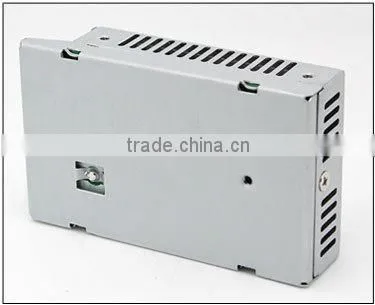

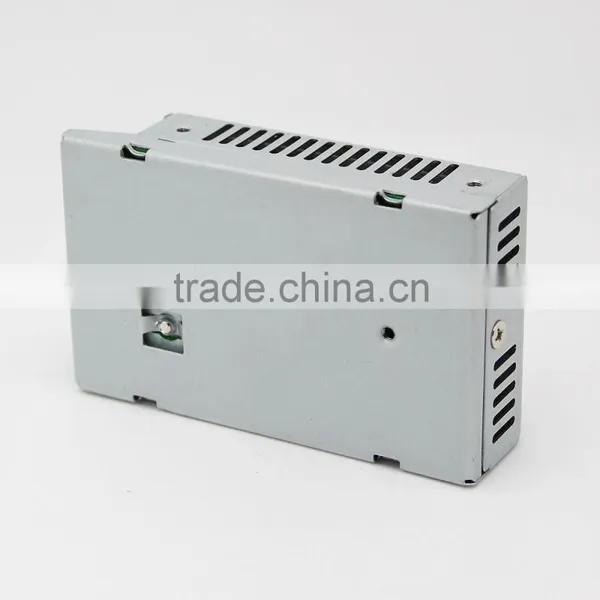

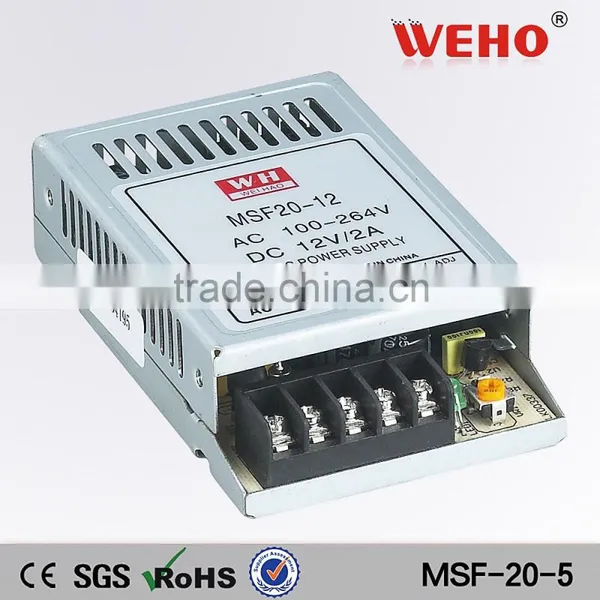

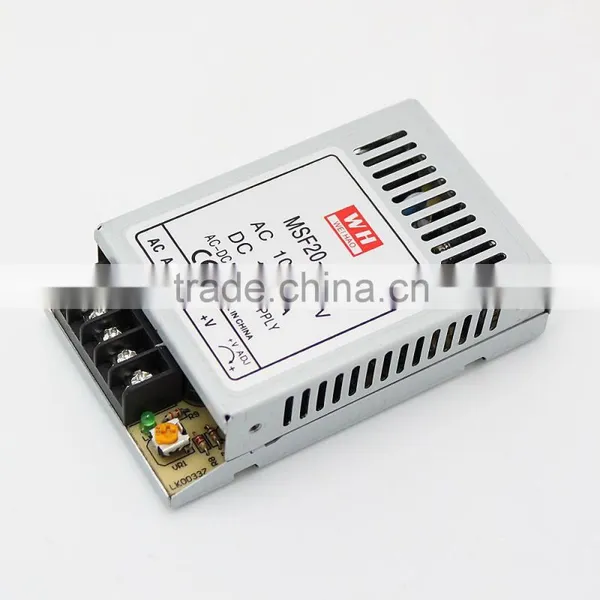

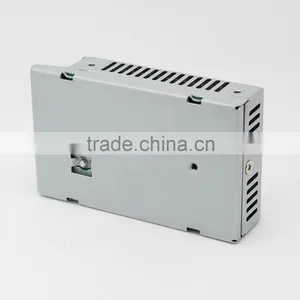

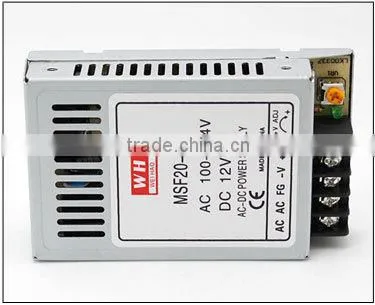

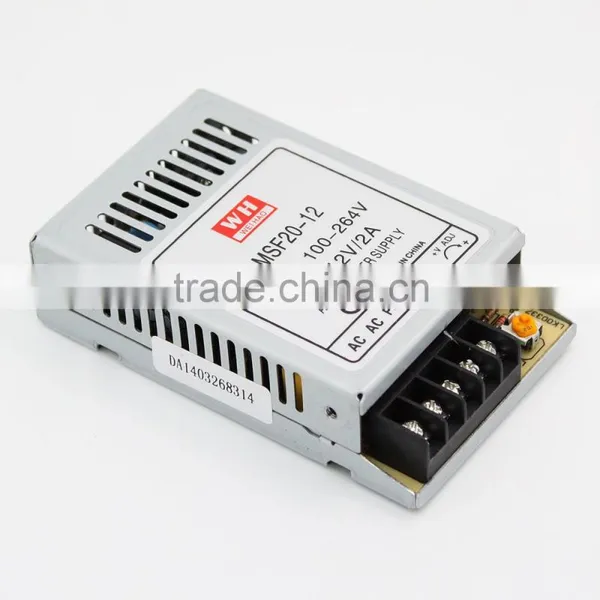

20w mini switching power supply led driver 5v ac/dc
MODEL |
MSF-20-5 |
MSF-20-12 |
MSF-20-15 |
MSF-20-24 |
DC VOLTAGE |
5V |
12V |
15V |
24V |
RATED CURRENT |
4A |
2A |
1.6A |
0.85A |
CURRENT RANGE |
0 ~ 2A |
0 ~ 0.83A |
0 ~ 0.83A |
0 ~ 0.42A |
RATED POWER |
20W |
20W |
20W |
20W |
RIPPLE & NOISE (max.) |
50mVp-p |
50mVp-p |
50mVp-p |
100mVp-p |
VOLTAGE ADJ. RANGE |
4.75 ~ 5.5V |
10.8 ~ 13.2V |
13.5 ~ 16.5V |
21.6 ~ 26.4V |
VOLTAGE TOLERANCE |
±2.0% |
±1.0% |
±1.0% |
±1.0% |
LINE REGULATION |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
LOAD REGULATION |
±1.0% |
±0.5% |
±0.5% |
±0.5% |
SETUP, RISE, HOLD TIME |
200ms, 50ms, 20ms at full load |
|||
VOLTAGE RANGE |
85 ~ 264VAC |
|||
FREQUENCY RANGE |
47 ~ 63Hz |
|||
EFFICIENCY (Typ.) |
68% |
71% |
72% |
75% |
AC CURRENT |
0.5A/115VAC 0.25A/230VAC |
|||
INRUSH CURRENT (max.) |
COLD START 15A/115VAC 30A/230VAC |
|||
LEAKAGE CURRENT |
<0.5mA/240VAC |
|||
OVERLOAD |
105 ~ 135% rated output power |
|||
Protection type : Constant current limiting, recovers automatically after fault condition is reoved | ||||
WORKING TEMP. |
-10 ~ +50ºC (Refer to output load derating curve) |
|||
WORKING HUMIDITY |
20 ~ 90% RH non-condensing |
|||
STORAGE TEMP., HUMIDITY |
-20 ~ +85ºC , 10 ~ 95% RH |
|||
TEMP. COEFFICIENT |
±0.02%/ºC (0 ~ 50ºC) |
|||
VIBRATION |
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
|||
SAFETY STANDARDS |
Design refer to UL1012 |
|||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
|||
ISOLATION RESISTANCE |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
|||
EMI CONDUCTION & RADIATION |
Design refer to FCC Part15 J Conduction Class B |
|||
MTBF |
522.1K hrs min. MIL-HDBK-217F (25ºC) |
|||
DIMENSION |
97*58*25mm (L*W*H) |
|||
1.Voltage
• Output XXV on the switching power supply. XX is the voltage.
E.g.: 5V, 9V, 12V, 13.8V, 15V, 18V, 24V, 36V 48V .............
2.Current:
• Output XXA on switching power supply . XX is the current.
E.g.: 0.5A , 1A, 1.5A, 2A, 3A, 4A, 5A, 6A 10A 15A 20A 30A 40A 50A 60A 80A ......
3.Quality
• We have the best professional and experienced engineer and strict QA and QC system. Rpair rate under 0.1%~0.2%.
4.Delivery
• Strong production capacity: 6000 pieces per day, could provide customerlized package upon request. We will make the the shipping to be the most economical for you and freight cost is informed in advance for your consideration and requirements
5. Guarantee period
• During the guarantee period, if any defect and/ or inherent fault is discovered, the Buyer shall notify the Seller and supply evidence of the defective,faulty parts or damaged goods,after seller's testing and confirmation,if commodity is damaged owing to defective products ,The Seller shall take prompt action to remedy, repair, or replace the defective or faulty parts at his own expenses within 07 days after receipt of Buyer’s notice by fax/mail.
6. Applications
• Power tools series: Electric Saw, Drilling Machine, Ginder, Sand blast Machine, Puching Machine,Weeding Machine,Air Compressor etc.
• Office series: Computer,Printer,LCD Monitor,Scanning Machine etc.
• Household Appliance series: Dust Collector,Fan Lamp or LED ,Sewing Machine etc.
• Kitchen Appliance series: Microwave Oven, Fridge, Freezr, Coffemarker etc.
• Industrial Equipemnt series: shipping,vehicle,metalhalide lamp,solar system,wind power generation ect.
• Electrical filed series: TV,VCRS,Radio ect.
7.Distributor
We are looking for distributor and agent all over the world for switching power supply . Should you any interest, please do feel free to send your message or inquiry. Welcome and join us, 24 hours service waiting for you. .Promt delivery and professional after-sales service are our priority ,which makes us to be your reliable partner.
