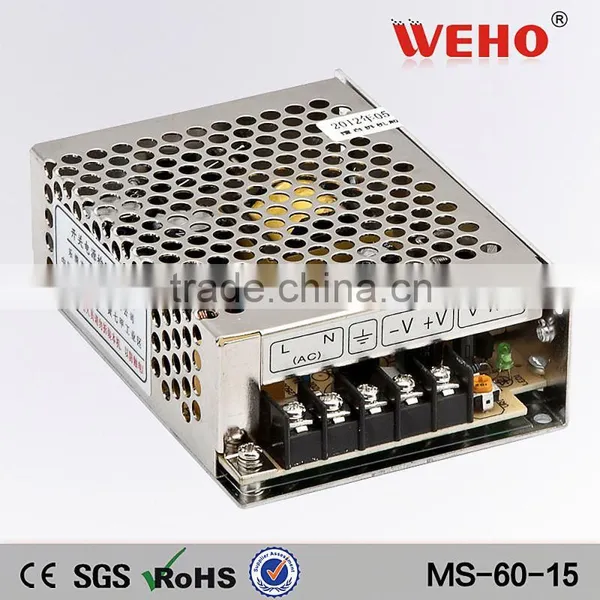

Competitive Weihao Switching Power Supply 60w

Name: Competitive Weihao Switching Power Supply 60w
Brand: WeHo
SKU: 120504707

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

WeHo

Model Number:

MS-60-15

Zhejiang Weihao Electronic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo Shanghai Guangzhou Hangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name WeHo

Model Number MS-60-15

Output Power 51 - 100W

Output Type Single

Input Voltage Other, 110v/220v

Output Voltage 15V

Output Frequency 50/60HZ

Output Current 4A

switching power supply 60w

switching power supply 60w

1.Specification:

Model Specification	S-60-5	S-60-12	S-60-15	S-60-24
DC Output voltage	5V	12V	15V	24V
Output voltage range(Note:2)	2%	1%	1%	1%
Rated output current	12A	5A	4A	2.5A
Output current range	0~12A	0~5A	0~4A	0~2.5A
Wave and noise(Note:3)	100mVp-p	75mVp-p	75mVp-p	75mVp-p
Inlet stability(Note:4)	0.5%	0.5%	0.5%	0.5%
Load stability(Note:5)	1%	0.5%	0.5%	0.5%
DC output power	60W	60W	60W	60W
Efficiency	73%	78%	78%	82%
Adjustable range for DC voltage	+10,-5%	10%	10%	10%
AC input voltage range	85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC
Input current	2A/115V 1A/230V
AC Inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%-150% Type: pulsing hiccup shutdown Reset: auto recovery
Temperature coefficient	0.03%/C(0~50C)
Setup, rise, hold up time	800ms, 50ms, 10ms/150V 300ms,50ms,80ms/230v
Vibration	10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10C~+60C(Refer to output load derating curve),20%~90%RH
Store temperature and humidity	-20C~+85C,10%~95%RH

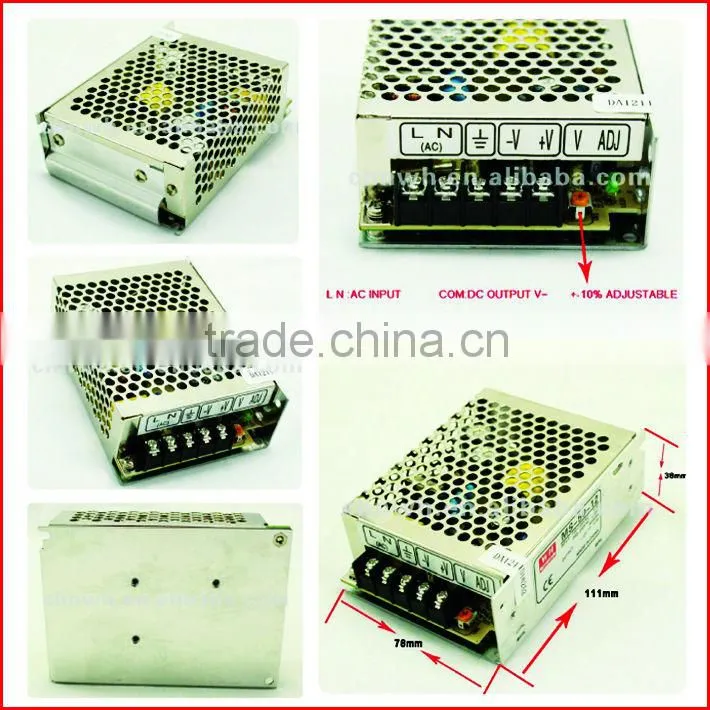

Overall dimension	111X78X36mm (LWH)
Weight	0.55kgS
Safety standards	UL 1012 TUV EN6050(IEC,ul1950)Approved
EMC standards	CISPR22(EN55022),IEC801-2,3,4 IEC555-2Verification
