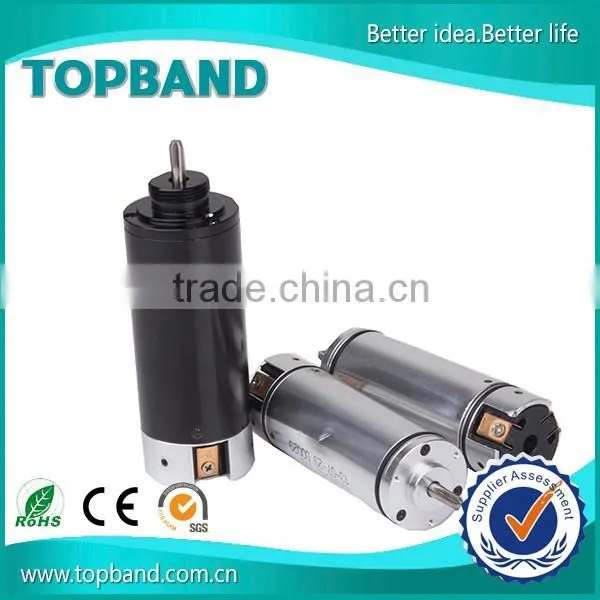

36v 50000rpm dc motor high speed and torque
1.Low noise, high speed, long lifetime
2.High efficiency: (Low current consumption and low staring voltage)
3.Reliability (Operates more quietly and low inductance)
4.Our company is the first listed company in intellectual control in China
5.We can offer custom-tailor service
dc motor high speed and torque data
| CB2060 | UNIT | ’001 |
| RATED VOLTAGE | V/DC | 36 |
| RATED SPEED | RPM | 47000 |
| NO LOAD SPEED | RPM | 50000 |
| NO LOAD CURRENT | mA | 150 |
| RATED CURRENT | mA | 1800 |
| RATED TORQUE | mN.m | 10 |
| RATED POWER | W | 49.2 |
| MAX EFFICIENCY | % | 75 |
| RESISTANCE PHASE TO PHASE | OHM | 1.33 |
| TORQUE CONSTANT | mN.m/A | 6.8 |
| SPEED CONSTANT | rpm/V | 1388 |
| WEIGHT | G | 92 |
dc motor high speed and torque
Application
Certification
Shenzhen Topband Co., Ltd. is one of the biggest company to do the DC Motor and
Controller in China,which is established in 1996. Motor division is focusing on coreless
motor, general BLDC motor, brushless motor and brushless dc motor controller.
Topband was listed in Shenzhen stock change on July 2007,became the first listed
company in intellectual control in China, the stock code 002139.
Our team
Contact us
Telephone:86-755-27651888-6225
Fax: 86-755-29826901
Website:
Your satisfaction is our ultimate goal!
