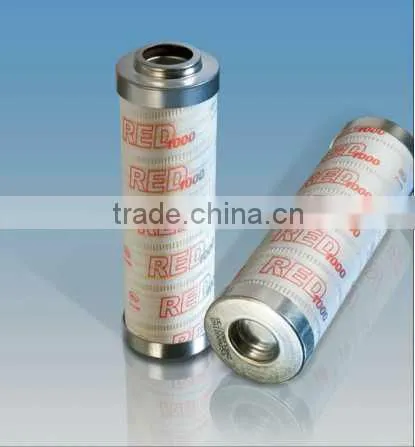

Help Center2206 Series Pall Hydraulic Filter Elements Replacement
Related Products
-
Pall 2295 Series Hydraulic Filter Elements Replacement(6 Years Professional Manufacturer)US$ 20 - 150MOQ: 5 Pieces -
Pall Microfiber Hydraulic Oil Filter Elements HC2206FKN3H Replacement(high Efficiency)US$ 10 - 100MOQ: 10 Pieces
-
Replacement for 0060R003BN/HC Hydac Filter CartridgeUS$ 50 - 100MOQ: 5 Pieces
-
OEM 0110D010BN4HC HYDAC High Pressure Filter ElementUS$ 50 - 100MOQ: 5 Pieces
-
Industrial MBS1003PHJ Replacement American Pall FilterUS$ 50 - 100MOQ: 5 Pieces
Specifications
1.Pall hydraulic oil filter element2.Graded pore structure
3.High dirt-holding capacity
4.ISO Test
Description:
Pall 0896 series filter elements are extremely permeable and are constructed
of high dirt capacity stainless steel (type 304 or 316L) woven wire mesh. 0896 series media out perform other meshes because they are sintered woven wire meshes with higher void space.
Pall sinters the wires at their points of contact, producing an extremely strong porous material whose wires will not shift under stress and whose pore size integrity is continually maintained. This patented Pall process permits use of finer diameter wires in manufacturing the filter medium.
The net result is a filter with more pores per unit area, providing more dirt-holding capacity than that of an unsintered mesh made from coarser wires. Designs are available which are suitable for temperatures up to 600F/315 C.
Technical Specifications:
Materials of Construction:
Hardware: Corrosion protected carbon steel
Media: Inert, inorganic fibers impregnated and bonded with epoxy resins
Temperature Range:
Nitrile: -43C (-45F) to +107C (225F)
Fluorocarbon: -29C (-20F) to +120C (250F) ,
(per ISO 2943)Note: 60C (140F) maximum for water based fluids
O - ring Code: OR112 per ISO 3601-1
Collapse Rating:210 bard (3045 psid)
Pressure Drop
Multiply actual flow rate times factor in table below to
determine pressure drop with fluid at 32 cSt (150 SUS),
0.9 S.G. Correct for other fluids by multiplying new viscosity
in cSt/32 (SUS/150) x new S.G./0.9.
Note: factors are per 1000 L/min and per 1 US gpm.
Operating Characteristics:
Standard cartridges are capable of withstanding a collapse differential of 125
psid in the forward flow (outside-in) direction and up to 600 F and 10 psid in the
reverse flow direction
Sizes:
The standard series filters are cylindrical forms of pleated medium, 2 1⁄2inches
in diameter in 10 inch multiple lengths, up to 30 inches.
Other model numbers for reference.
2206 series:
HC2206FKP3H HC2206FKN3H HC2206FKS3H HC2206FKT3H HC2206FKP6H HC2206FKN6H
HC2206FKS6H HC2206FKT6H HC2206FKP8H HC2206FKN8H HC2206FKS8H HC2206FKT8H
2208 series:
HC2208FKP4H HC2208FKN4H HC2208FKS4H HC2208FKT4H HC2208FKP6H
HC2208FKN6H HC2208FKS6H HC2208FKT6H
2216 series:
HC2216FKP4H HC2216FKN4H HC2216FKS4H HC2216FKT4H HC2216FKP6H HC2216FKN6H
HC2216FKS6H HC2216FKT6H HC2216FKP14H HC2216FKN14H HC2216FKS14H HC2216FKT14H
2218 series:
HC2218FKP4H HC2218FKN4H HC2218FKS4H HC2218FKT4H HC2218FKP6H
HC2218FKN6H HC2218FKS6H HC2218FKT6H
2226 series:
HC2226FKP4H50 HC2226FKN4H50 HC2226FKS4H50 HC2226FKT4H50 HC2226FKP6H50
HC2226FKN6H50 HC2226FKS6H50 HC2226FKT6H50
