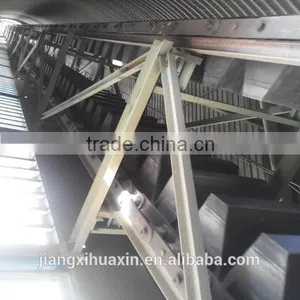

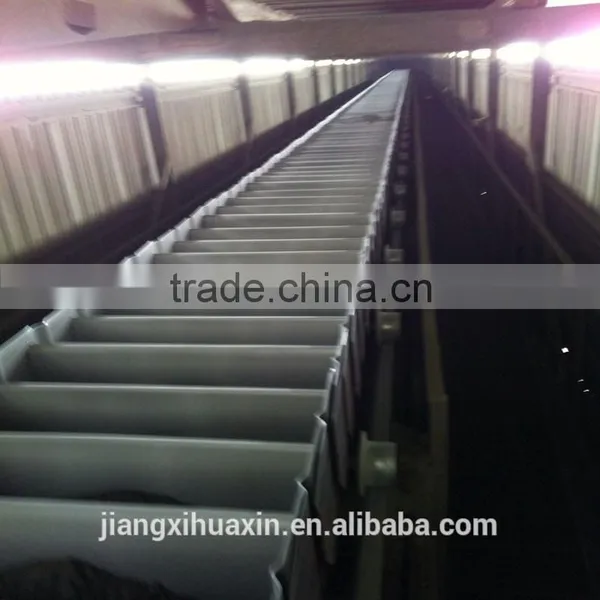

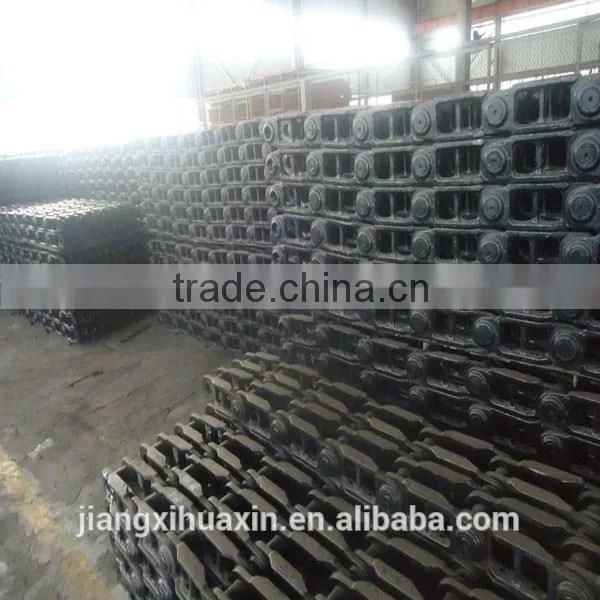

Help CenterCement Clinker Product Line Connect With Cooler Grate and Storage
Related Products
-
10000T Conveyor Capacity Bucket Pan ConveyorUS$ 98,000 - 189,000MOQ: 1 Set -
China 130kw Clinker Bucket ConveyorUS$ 88,900 - 156,000MOQ: 1 Set
-
Gold Supplier's Cement Clinker Conveyor EquipmentUS$ 100,800 - 189,000MOQ: 1 Set
-
Golden Supplier Cement Trough Conveyor DevicesUS$ 98,000 - 189,000MOQ: 1 Set
-
Hot Sales Conveyor Belts for Cement IndustryUS$ 98,000 - 189,000MOQ: 1 Set
Specifications
1.Cement clinker product line connect with cooler grate and storage2.Non leakage
3.Low maintenance and consumption
4.Operat
Service:24 Hours email service. assemble will be send professional technical to guide
--Product description
1.Package:Nude package
2.Convey capacity:5000T 2500T 1500T per day
3.Product experience:10 years
4.Structure:Conveyor system
5.Operation speed: (0.26m-0.3m)/s
6.Assembly inclination:0°-60°
7.Assembly: send professionals to guide
8.Price:Factory price
9.operation status: Stable operation
10.Delivery: 45 days after deposit receiving
--Product parameter
Horizontal and inclination ≤25° convey ability(table1)
Model |
Edge high
|
Rated throughput(when inclination ≤25° )m³/h |
|||
Chain speed m/s | |||||
0.193 |
0.244 |
0.308 |
0.344 |
||
SCD630 |
250 |
91 |
116 |
146 |
163 |
SCD800 |
250 |
116 |
148 |
186 |
208 |
SCD1000 |
300 |
174 |
222 |
279 |
312 |
SCD1200 |
350 |
244 |
310 |
391 |
436 |
Notice:1.Conveyor angle ≥35°, chutes equipped with baffles to prevent material return
2.If have others requires.edge high can transform.and conform to conveyor capacity.
3.When inclination more than 25 degree.For table1multiplied by the actual transmission capacity table2
When conveyor angle≥25° .the parameter follow(table2)
Edge high |
Adjustable parameter |
|||||||
≤25° |
30° |
35° |
40° |
45° |
50° |
55° |
60° |
|
200 |
1 |
0.91 |
0.83 |
0.75 |
0.69 |
0.61 |
0.54 |
0.47 |
250 |
1 |
0.93 |
0.86 |
0.80 |
0.74 |
0.69 |
0.63 |
0.57 |
300 |
1 |
0.94 |
0.89 |
0.83 |
0.79 |
0.74 |
0.69 |
0.65 |
350 |
1 |
0.95 |
0.90 |
0.86 |
0.82 |
0.78 |
0.74 |
0.70 |
--Application
