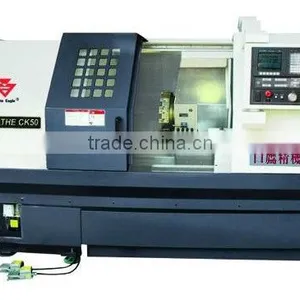

Help CenterSLANT BED CNC LATHE CK45
US$ 33,600 - 33,700
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI CHINA
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC LATHE CK6136 CK6136DLUS$ 10,710 - 10,750MOQ: 1 Set -
CK6132 x 1000MM CNC Metal Cutting Lathe MachineryUS$ 5,000 - 7,000MOQ: 1 Set
-
CK6136 x 1000MM CNC Lathe MachineUS$ 5,000 - 7,000MOQ: 1 Set
-
CK6136 CNC Lathe Machine*750mmUS$ 8,000 - 9,000MOQ: 1 Set
-
CK6136 x 1000MM Cnc MachineUS$ 5,000 - 7,000MOQ: 1 Set
Condition
New
Type
Horizontal
CNC or Not
CNC
Automatic Grade
Automatic
Max. Swing Diameter
450MM
Place of Origin
Anhui, China
Brand Name
WHITE EAGLE
Model Number
CK45
Voltage
AS BUYER'S REQUIRED
Power(W)
AS BUYER'S REQUIRED
Dimension(L*W*H)
3320X1600X1830MM
Weight
4000KGS
Certification
ISO9001: 2000 CE TUV
Specifications
CNC HEAVY DUTY LATHESLANT BED
SWING OVER BED:450MM
LINEAR GUIDEWAY
Product DescriptionStartard accessories
SPECIFICATION |
||
| ITEM | CK45 | |
| Max.swing over bed | Φ450 | |
| Max.diameter | Φ360 | |
| Max.swing over toolpost | Φ300 | |
| Max.machining length | 400 | |
| Distance between centers | 750 | |
| Spindle nose style | A2-5 Integral type | A2-6 Assembly type |
| Hydraulic chuck | Φ160 | Φ200 |
| Spindle motor | 7.5-11KW | 7.5-11KW |
| Max. spindle speed range | 4500rpm | 3000rpm |
| Spindle bore dia. | Φ49 | Φ57 |
| Bar auto-feeding bore | Φ39 | Φ45 |
| X/Z axis spec. | 3210/4010 | |
| Max.travel of X axis | 165 | |
| Size of X/Z linner guide-way | 35 | |
| Max.travel of X axis | 500 | |
| Rapid traverse rate X | 12m/min | |
| Rapid traverse rate Z | 16m/min | |
| X-axis | ±0.008 | |
| Z-axis | ±0.012 | |
| X-axis | ±0.0035 | |
| Z-axis | ±0.005 | |
| Gang tools table size/Optional turret | T8/T10/T12 Hydraulic turret | |
| Quill diameter | Φ65 | |
| Quill travel | 80 | |
| Max.headstcok travel | 710 | |
| Taper of quill | M.T.4 | |
| Overall size (L*W*H) mm | 3320x1600x1830 | |
| Weight | 4000kg | |
| Standard Equipment | ||
| - Hollow oil pressure 3-jaw chuck | ||
| - Standard soft jaw | ||
| - Standard hard jaw | ||
| - Hollow rotary oil cylinder | ||
| - Alarm lamp | ||
| - Working lamp | ||
| - Pedal switch | ||
| - Automatic lubricating system | ||
| - Oil pressure system | ||
| - Cooling system | ||
| Optional Equipment | ||
| - Automatic bar-feeder | ||
| - Chip converyor | ||
| - Collets | ||
| - Automatic safety door | ||
| FEATURES: | ||
| 1.The machine is equipped with 45°Integrated design with good aseismatic and high rigidity | ||
| 2.Spindle with the integrated quill structure,it can achive high speed swing,high rigidity and precision. | ||
| 3.With hydraulic turret,it can achieve high positioning, fast speed for toolchange and high performance | ||
| 4. Direct connection adopted on feeding motor and leadscrew,it can assure the machining precision and positioning accuracy. | ||
| 5. Tailstock can be adopted by hydraulic driving to make sleeve travel bigger and easy operation. | ||
| 6. Complete closed cover can protect the iron scraps splashing out. | ||
| 7.Designed with the individual water tank,anychip convery can be equipped | ||
