Specifications
Latest cushion weighing and vacuum filling machine1.High capacity 6-12pcs/min
2. weighing with scale
3. Vacuum filling
Description

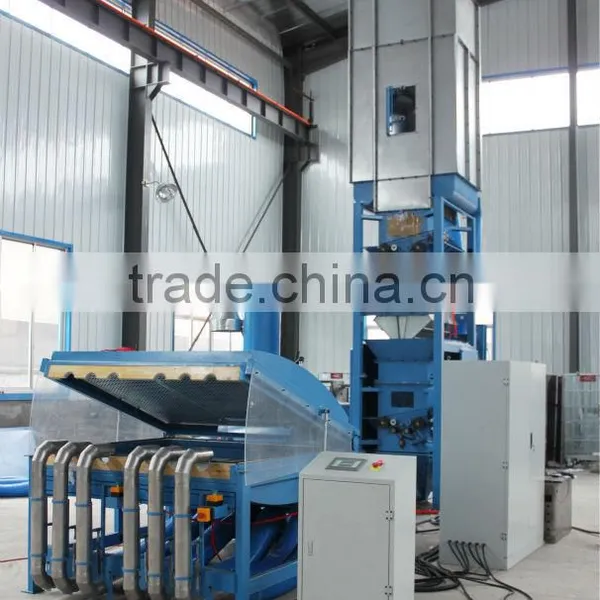

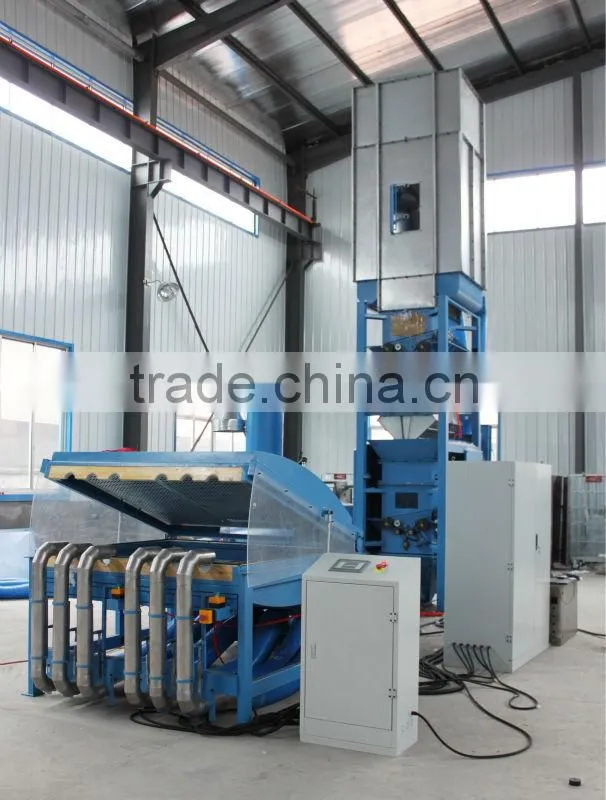

♦The automatic vacuum pillow machine QL001E is mainly used to fill pillow,cushion and
sofa etc,with conjugate hollow siliconzed polyester fiber.
♦Equipment:Bale opener-Blower-Vibration hopper-Fiber opener-Distributor blower-Vacuum
pillow filling system-Vacuum device.
♦First of all put 1 to 2 bales of polyester fiber raw material into the bale breaker by forklift;
set up the filling time according to each pillow or cushion weight that already tested
previously.
♦Start the machine, then the raw material will be loaded to the next program automatically
by a nail apron.
♦The material will be feed into fiber opening machine though a vibration hopper evenly, in
order to get even output after opened.
♦Usually each pillow or cushion can be filled within 6s,controlled by Siemens PLC program.
♦There is no need any finishing operator, cause the pillow already very clean and the
Item no. QL001E Power 38.5kw
Dimension mm Capacity 6-8 seconds per pcs
Voltage 380v50hz3Phase by order Weight 5560kg
Tolerance 10g per pcs Control system Siemens PLC
Opening rate 98%up Labor need 1 person
QINGDAO LION MACHINERY CO., LTD.
corners are full filled by the vacuum system that will save you many finishing operators.
♦The tolerance of each production can be around 10g.
♦Bridge shaped magnet;
♦Electrical metal alarm system;
♦V-wire opening roller which is long life and perfect opening rate which is able to reach
100% that the feeding speed is adjustable by inverter.
♦All electrical key parts are adopted by the most famous world brand such like Siemens,
Omron and Schneider.
♦Different power voltage and safety standard can be ordered according to customer’s local
requirement.
♦It is able to meet UL and CE rules.
Specification
Item no. QL001E
Power 38.5kw
Dimension mm
Capacity 6-8 seconds per pcs
Voltage 380v50hz3Phase by order
Weight 5560kg
Tolerance 10g per pcs
Control system Siemens PLC
Opening rate 98%up
Labor need 1 person

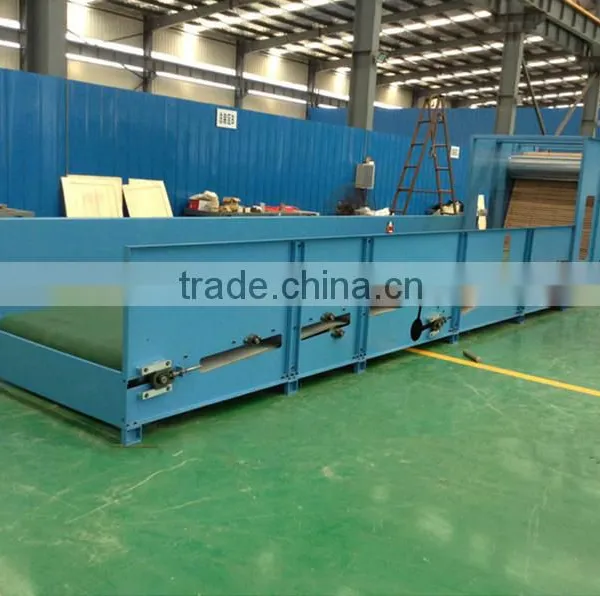

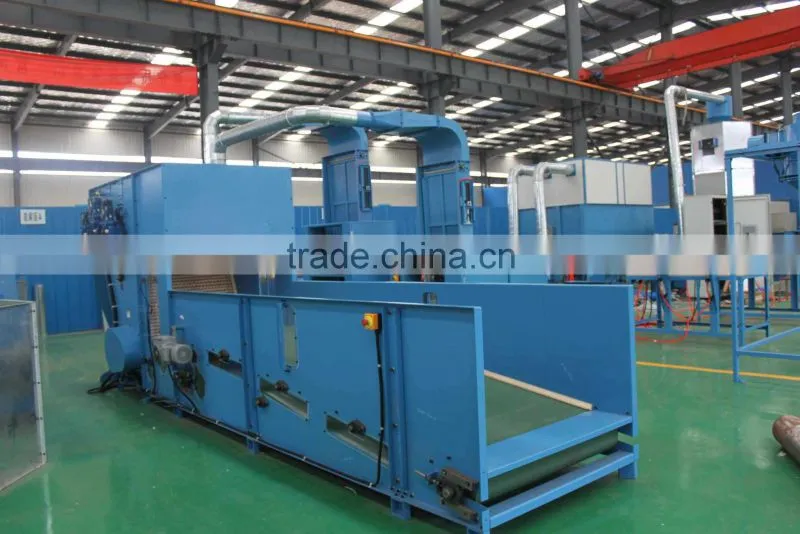

♦Working width:1200mm Capability: 1-2 bales Capacity: Max.800kg/h
♦Usually 1 to 2 bales of raw material can be loaded into the bale breaker by forklift and there is no need any operator during the time material running out.

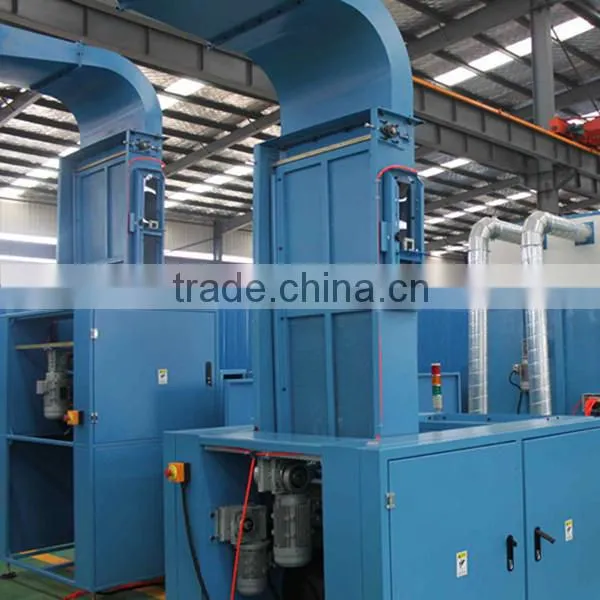

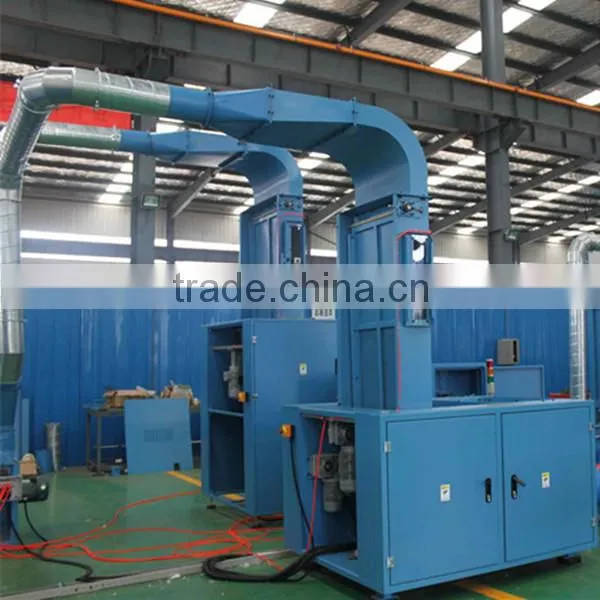

Vibration hopper & fiber distributor
The raw material will be loaded into the fiber opening machine through a vibration hopper through a fiber distributor evenly, in order to achieve enven output, so that weight can be low tolerance.
Fiber opening machine
High capacity and opening rate.
There are over 480kg can be finished in an hour with high capacity.
Metal alarm system
Anti-deviation conveyer system
Anti-jam high develop quality for the rollers that only need be cleans simply once a day after work and double clean once a week.
V-wire rollers with long life and stable quality.
Perfect dynamic balance process.
Vacuum system
High pressure vacuum blower with perfect dynamic balance process produced with aluminum blades, so that there is no vibration and noise during the operation. Dust collection system arranged.

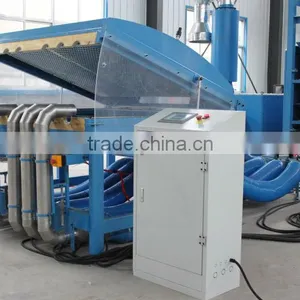

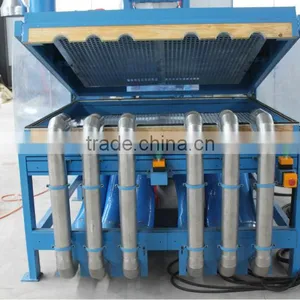

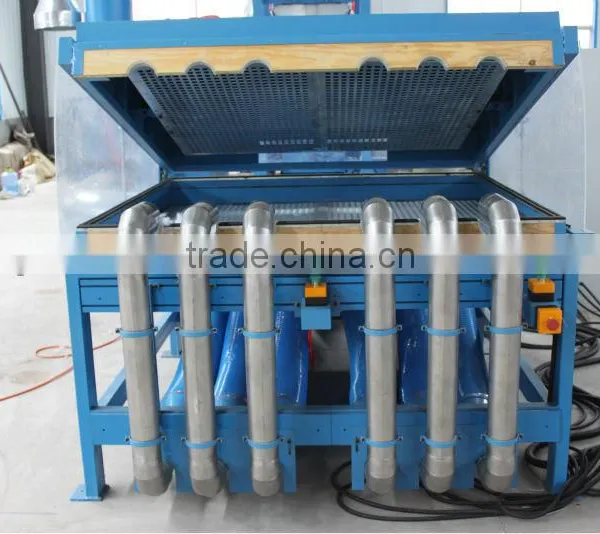

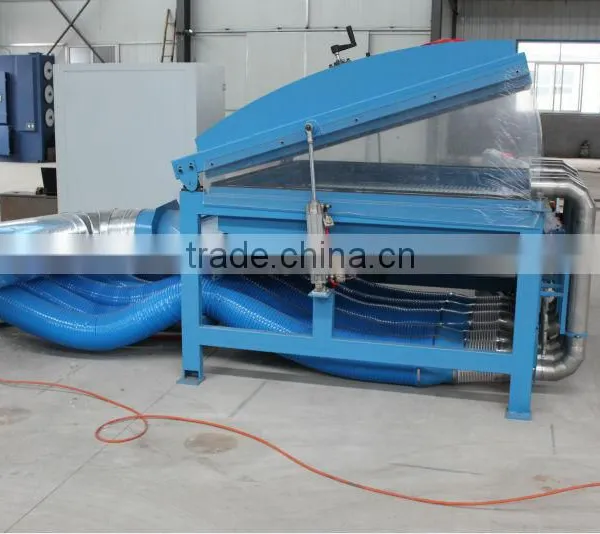

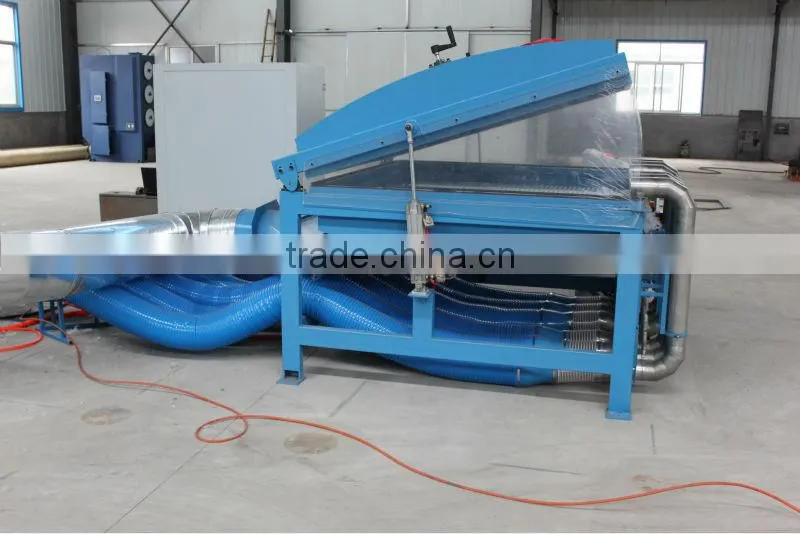

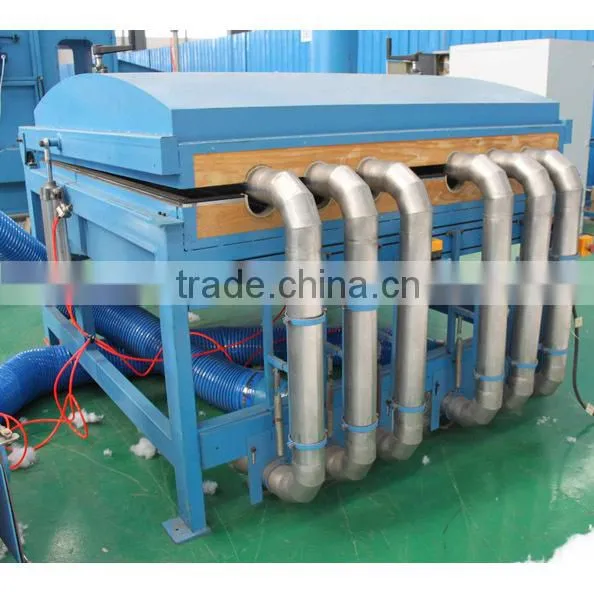

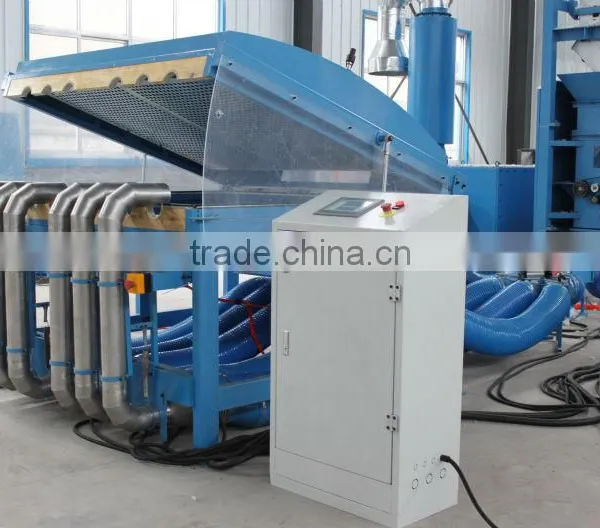

The vacuum filling system
♦Automatic filling device,double hand control system,need to press two button at the same time to protect the operator’s hand.
♦When time is up,the lid will automatically open.
♦Usually 6 seconds per pillow,the filling time can be setted by PLC control system.
♦The quantity of filling nozzle can be ordered.
Packing: MDF package
CUSTOMER LOCATION:
Australia,Aruba, Armenia, Bangladesh, Brazil, Belgium,Canada, Cyprus,
Columbia, Denmark,Egypt, Estonia, Greece, Hungary, Holland, India,Italy,
Indonesia, Iran, Jordan, Korea, Mexico, Philippine, Poland, Paraguay, Russia,
South Africa, Spain,Slovenia, Thailand, Turkey, UAE, UK, USA, Chile,
Vietnam, Ageria, Argentina, Saudi Arabia, Bulgaria, Dubai, Czech
Republic, Zimbabwe, Libya,Maldives,Lithuania, Lebanon, Malaysia,
Macedonia, Moldova,Nigeria, New Zealand, Portugal, Japan, Switzerland,
Serbia, Cyprus, Tunisia, Venezuela, Uruguay, Singapore, Iraq,
Production capability:
SERVICE:
We are able to supply machine commissioning support and training
oversease for larger automatic machine lines.
Please contact us as soon as any problem happends with some photos and
descriptions; our engineers will response within 24 hours with technical
instructions.
All spare parts are standard that can be found from local.
We will send it to you by overnight if needed.
Service Translator: Ms. Jenny
Payment term: 50% is paid in advance; balance should be paid in 15days after the shipping date.
Loading date: Within 30 days after receipt the advance.
Machine condition: New in 2014
Guarantee: 1year material for free; 6months for the electrical key parts; after sales service forever.
Certification: BL, CO, PL, CI,
