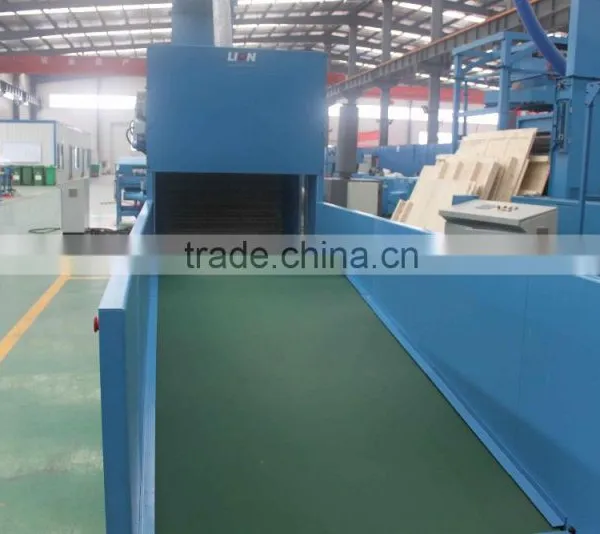

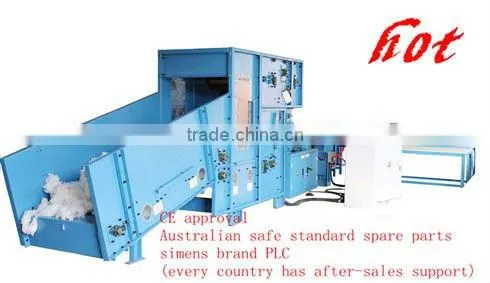

PRODUCTION NAME: Automatic bedding filling machine, sleeping pillow filling machine & cushion filling machine QL001
OUR COMPANY:
Specification:
· Item no.: QL001-CF
· Installation area: 13000*5000*2300mm
· Voltage: 380v 50Hz 3phase (difference can be ordered)
· Power: 15.6kw
· PLC: Siemens brand
· Air pressure: 0.2Mpa
· Capacity: 6-10pcs/min, 360-600kg/h
· Labor: 1 person
· Weighing tolerance: less than 15G
· Function: Auto Mode & Manual Mode
· Weight: 4.2MT
· Control system: PLC control system
· Optional parts: pressing plate, SKF bearing
Description:

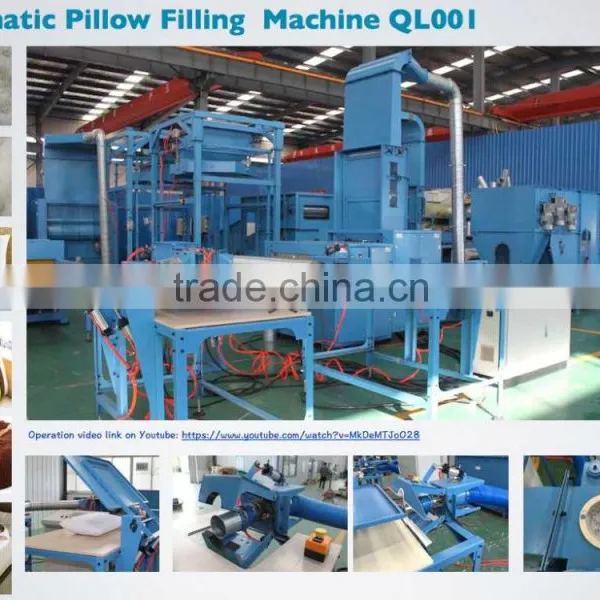

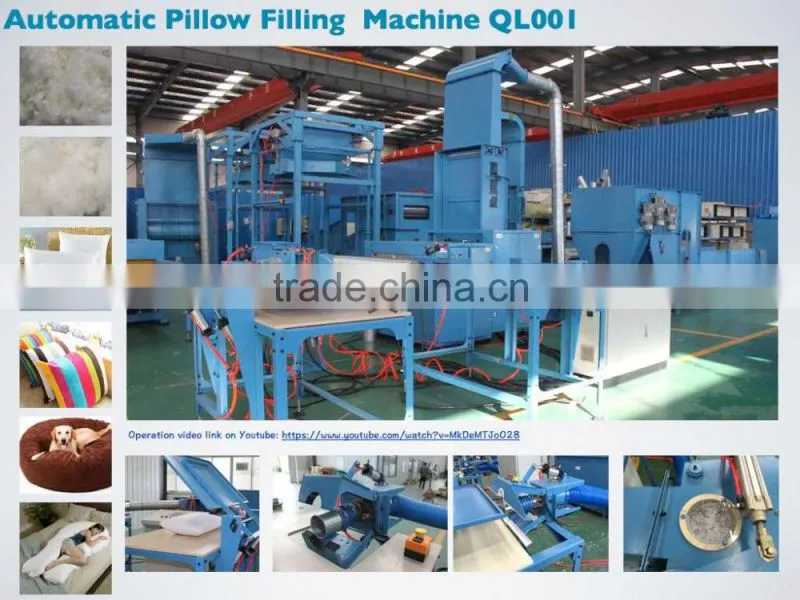

· The computerized automatic pillow filling machine line can be used for sleeping pillow, cushion, sofa, chair pads etc.
· The material application can be conjugate hollow siliconzied polyester fiber that shorter than 100mm length.
· Adopting metallic model V wires for the fiber opener parts, so that the fiber can be opened for more than 98% and not be damaged; the V wire is 4 times usage life than the normal wire.

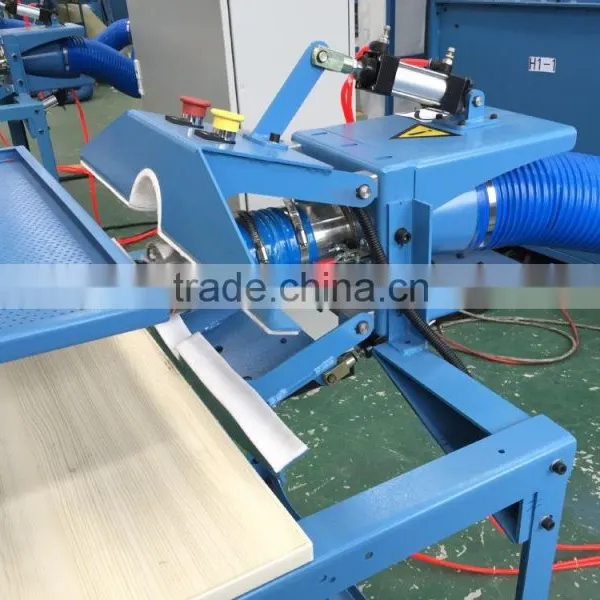

· The whole line can be handled by only one operator that only replacing the pillow cases; as it is controlled by Siemens PLC control system with time flow weighing system.
· If a 500g pillow filling, it will be handled for 10pcs per minute.
· It is simple operation, stable and reliable quality which is easy to be understanding by the operators.
· All electricity key parts adopt Siemens brand, very stable & local service will support you
· Australia safe standard

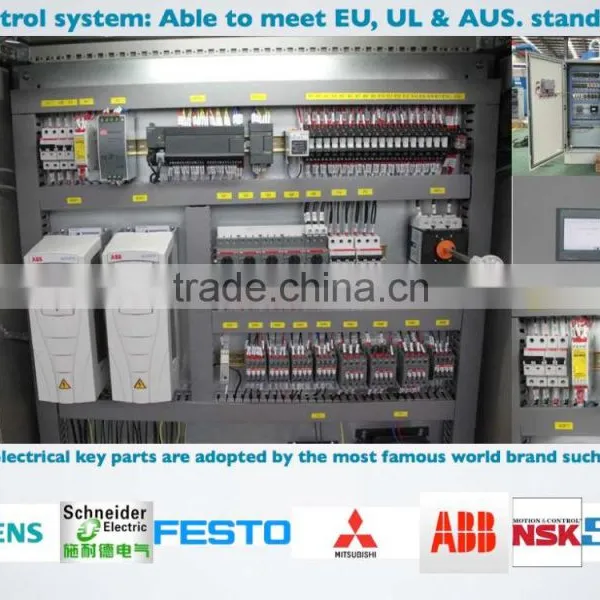

Control system:
- Most of the electrical key parts are adapted by the most famous world brand such like Siemens, Schneider and AB etc., so that the client can find local service on time;
- 24v low voltage control system;
- Safety relay
- Main cylinder motor circuit protection relay;
- The safety standard is able to meet the top range standard in the world market;
Our market:
Exhibition schedule:
Client visiting:
Lion Machinery operation video:
Please visit below link on Youtube for the machine operation from Lion Machinery such like automatic pillow filling machie, bedding filing machine, sofa cushion filling machine, micro fiber ball making machine, comforter packing machine, fine fiber opening machine, teddy bear stuffing machine, packing machine, apparel filling material micro fiber ball making machine, fiber ball wadding:
/channel/UCue0qpxNHqoHNovt2YjirXw
