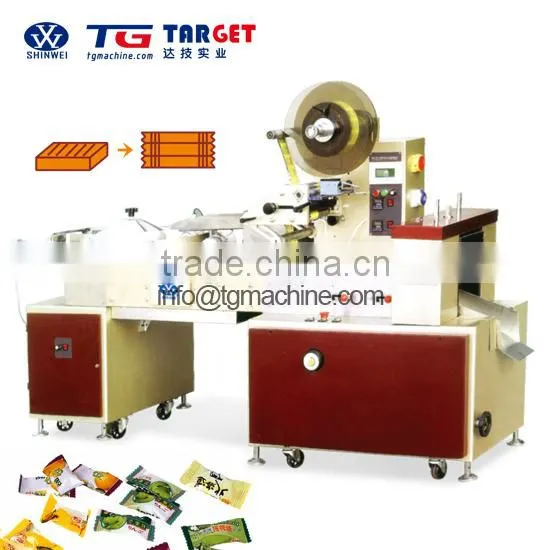

Pillow type candy packing machine
1. Double transducer control, flexible bag length cutting, operator needn't to adjust the unloading working, saving time and saving films. 2. human-machine operation, convenient and quick parameter setting.. 3. Self diagnosis failure function, clear failure display.. 4. High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate.. 5. Separate PID control to temperature, suitable for various packing materials.. 6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.. 7. Simple driving system, reliable working, convenient maintenance.. 8. All the controls are achieved by software, convenient for function adjusting and upgrading.
Product characteristics (The advantages for you):
1. Automatic shows error in touch panel, safety shield, safety switch.
2. This system can store products’ parameters more than 100pcs. The touch screen shows everything in Chinese (English), operation indication, error signal and quantity.
3. Easy operation and size management via touch panel.
4. Pack size is independent of the product size: narrow and wider packs are possible.
5. Auto-splicer. Economic energy and packaging material usage.
6. Fast speed, less empty bags, steady packing capacity.
7. Easy to change the spare parts, whole structure designed for long time using.
8. Low noise. Use synchronization belt.

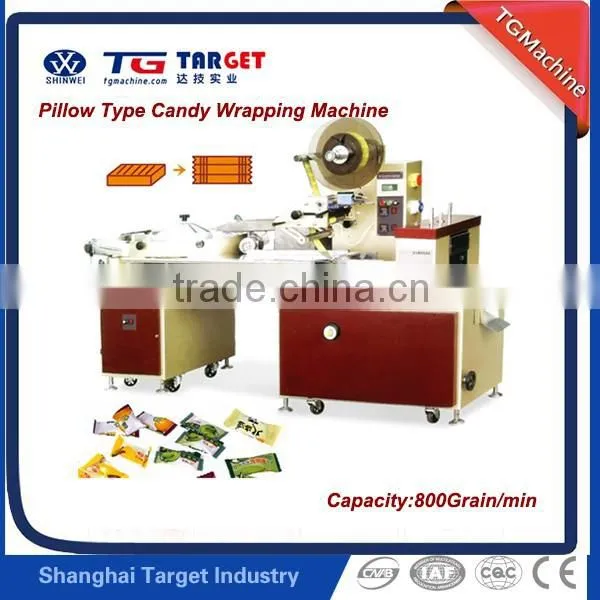

Pillow type candy packing machine
Model |
PTP800 |
packing speed |
<800grain/min |
Candy shape |
Rectangle,square,round,ellipse,column |
power |
220V/3.5kw |
dimension |
L2700*W1350*H1450mm |
weight |
980kg |
Wooden Case
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing:
a. Inside the machine put desiccant
b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap
c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
Shanghai Target Industry Co., Ltd is the sales and service company for Shanghai SHINWEI Machinery Manufacturing Co., Ltd which is the first manufacturer to build the complete production line for depositing hard candies in China and has accumulated 40 years’ fabrication experience. It is also one of the leading and professional exporters in China by providing customers home and abroad with high quality confectionery, chocolate, biscuit and packaging machinery. Our machineries have been exported to East European, south America, middle east, southeast Asia.
As the first-class corporation for fabrication of confectionery, chocolate, biscuit and packaging machinery, Target Industry offers not only the advanced equipment with competitive and economical efficiency, but the whole solutions for the customer's demands also. We provide the design, production, assembly and commissioning work of small or medium confectionery and biscuit machines in accordance with the customer's specific requirements.
