Help CenterColloid Mill
Related Products
Specifications
Min. Order: 1 SetFOB Price: US $1400-6000 / Set
Payment Terms: T/T
Supply Ability: 100 Set/Sets per Year

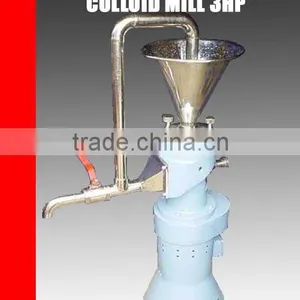

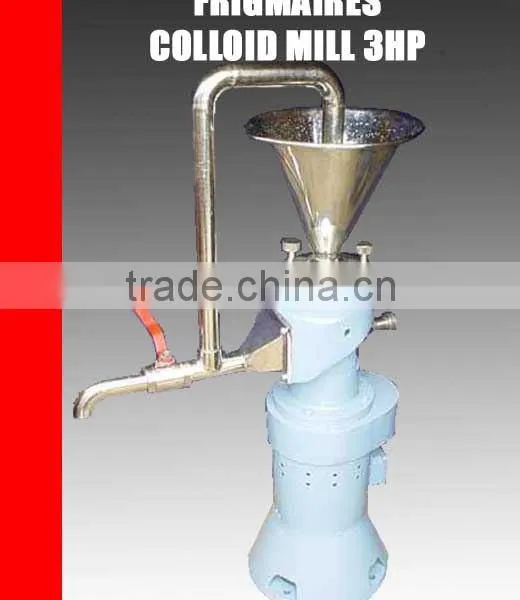

CONSTRUCTIONAND WORKING PRINCIPAL: Colloid Mill suitable for fine grinding, dispersing and homogenizing in a single operation. The mill consists of a S.S 304 single piece cast body inside which is fitted the hardened stainless steel Rotor and Stator grinding elements. The material is fed through a S.S. 304 Hopper and is forced between the Rotor and Stator where it is sheared, dispersed, mixed and homogenized. The rate and degree of the above process can be finely controlled during operation by adjusting the gap between the Rotor & Stator by means of a gap adjusting hand lever. The mill is mounted on a sturdy base frame and can be installed without foundation bolts if desired. All rotating parts are balanced and well lubricated for trouble free operation. The shaft is installed in a leak proof housing complete with bearings. ~O~ rings and Oil seals. The motor provided is of 3 Ph TEFC, 460 V 2800 RPM. The mill is provided with one set of S.S. 304 grinding elements or one set of corundum stone grinding wheels as may be required.
COOLING ARRANGEMENT. A SS 304 jacket complete with inlet and outlet connections is provided to cool the grinding chamber which subsequently cools the product.
OPTIONAL: RECIRCULATING SYSTEM .A pipe line system in SS 304 can be provided to recirculate the material.
