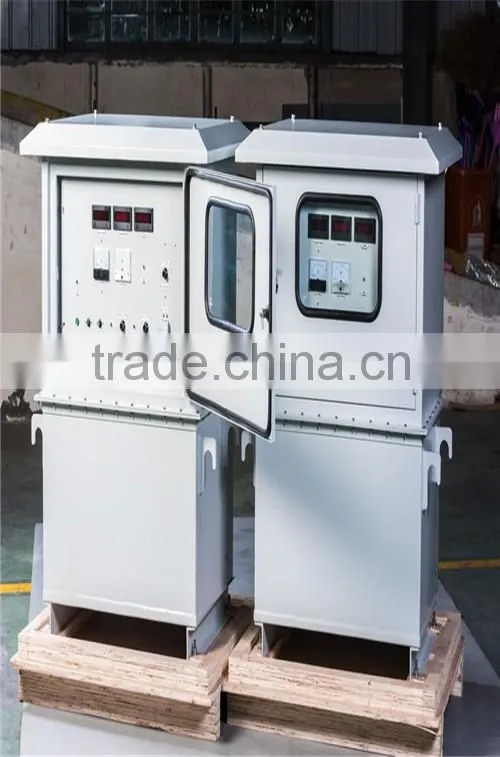

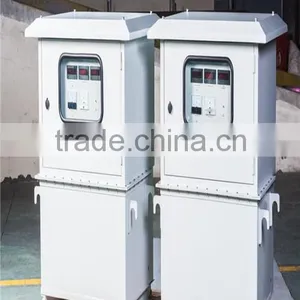

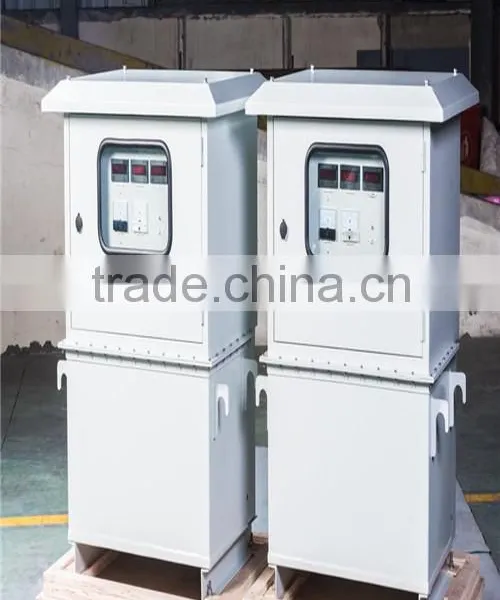

cathodic protection transformer rectifier
The most common type of power supply used for impressed current cathodic protection is a transformer/rectifier, commonly referred to simply as a rectifier. A rectifier converts the AC power supply voltage to the required output voltage and then converts it to DC. Rectifiers are either supplied in ventilated cases to allow convective air cooling or are immersed in transformer oil. Rectifiers are normally powered by an AC power system. The rectifier input is an AC voltage from the commercial electrical power grid or an engine-generator. A transformer with tap adjustments in the secondary side provides a method to reduce and adjust the output voltage level and to isolate the DC circuit from the input power system. A rectifying circuit next converts the adjusted AC voltage to produce a DC voltage output.
The basic units of a rectifier consist of:
l AC Supply
l Circuit breaker
l Transformer
l Rectifying elements
l Meters
l DC Output Terminals
l Fuses
l Surge protection
Yuxi acquires an electronic manufacture-CHANGLIAN with more than 40years of history in 2014. This factory has 20 years of experiences in manufacturing Transformer Rectifier, so far China’s first Rectifier made by Changlian for Sinopec is still in operating in Ningbo. This acquisition enables Yuxi have the full capability to supply high end electronic equipment for the industry it served, most importantlythe Transformer Rectifier.
Product Line:
l YX-DJ-1 Air Cooled Type
l YX-DJ-2 Oil Cooled Type
l YX-FPS-1 Explosion Proof Type
l YX-HPS-1B HFS Type
l YX-SFS-1 Solar Type
YX-DJ-1is normal air cooled type rectifier used in non-hazardous area, this TR has been provided with automatic switching function of operation mode, and function of anti-jamming and anti-lightning to increase reliability greatly. The TR has adopted key-press operation .Multimeters can be shown by multiple digital meters at the same time. Operation and control are simple and intuitive. The TR can be connected with computer to transmit parameters and working state remotely and control operation mode and potential given value remotely, which has realized intelligent management.
Product Specification
| 1. A.C. Input |
Single phase AC220V±10% or Three phase 380V ±10% Frequency 47.5Hz~63Hz |
| 2. D.C. Output Current | 0-50A |
| 3. Current Limiting | 55-65A |
| 4. Constant Current | 0-50A |
| 5. D.C. Output Voltage | 0-50V (Continuous Adjustment) |
| 6. Set Potential | 0-±3V |
| 7. Precision of Constant Potential | ≤±5mV |
| 8. Precision of Constant Current | ≤±1% |
| 9. Input Impedance | ≥10MΩ |
| 10. Working Style | Continuous |
| 11. Cooling | Air Cooling |
| 12. Ripple | ≤3% |
|
13. AC Input Fuses, DC Output Fuses, Rectifier Fuses MCBs, Surge Arrester, Lightning Protector |
|
| 14. Control | Manual / Automatic |

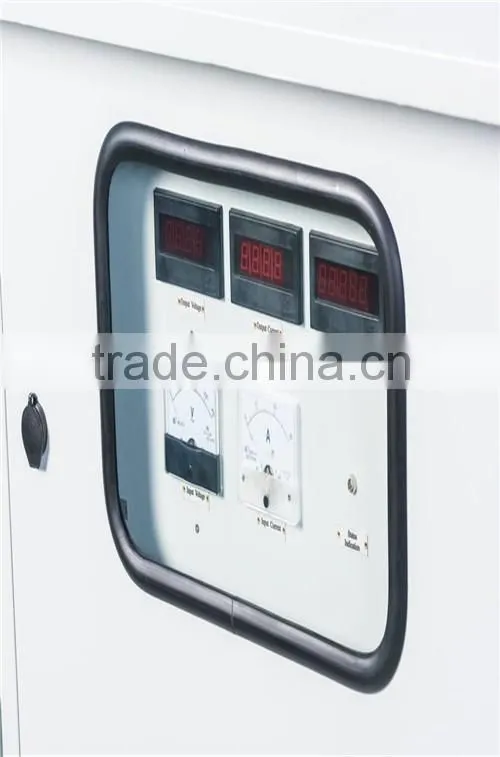

| 15. Digital DC Ampere Meter, Digital DC Voltage Meter, Digital Potential Meter | |
| 16. Oil level sensing device, Oil Temperature Indictor | |
| 17. Terminals |
DC Output (positive)-2nos DC Output (negative)-2nos AC Input (220V)-1nos Reference electrode grounding-1nos. Reference electrode-1nos. |
| 18. Resist of AC interference | ≥24V |
| 19. Enclosure | Outdoor type, Standard Painted Sheet Steel. |
| 20. Protection | ≥IP55 grade |
| 21. Dimension (approx.) |
1120mm x 960mm x 780mm Height x Width x Depth |
| 22. Weight (approx.) | 80kgs |
| 23. Ambient temperature range | -30℃ to +60℃ |
| 24.Relative Humidity | ≤90% |
Company Profile
Ningbo Yuxi light alloy Co.,ltd was established in 2003 and we are specialized in manufacturing Magnesium/AluminumExtrusion/casting products. The range of our product line, excellent quality & service, low price over the past ten years have made us one of the leading companies of its kind in China.
It’s our principal aim to provide the highest quality of materials and integrity of services, so our customer can focus all of their efforts in the more profitable services such as design, Marketing.
Taking advantage of the advanced technology and low labor cost, YUXI is always able to provide high quality products and integrity customer services backed with the most competitive price.
Please select us as your honest and reliable partner to save your money and time.
Factory occupation 26600 square meter
Total staff 120
Management & Technical staff 27
Capacity:
- Magnesium Casting: 1,500 tons per year
- Magnesium Extrusion: 1,200 tons per year
- Aluminum & Zinc casting: 2,000 tons per year
- Aluminum & Zinc extrusion: 1,500 tons per year
