PCB CNC milling and drilling machine for sale ZK-4040

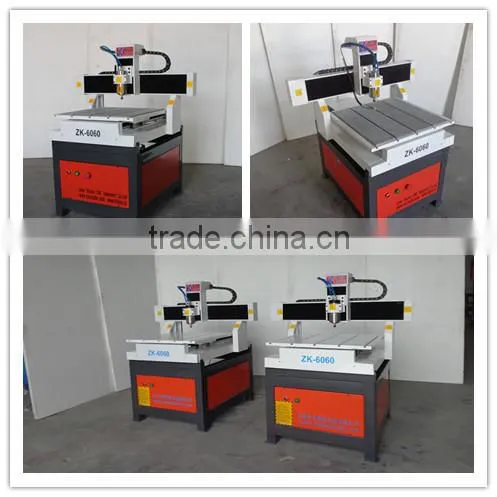

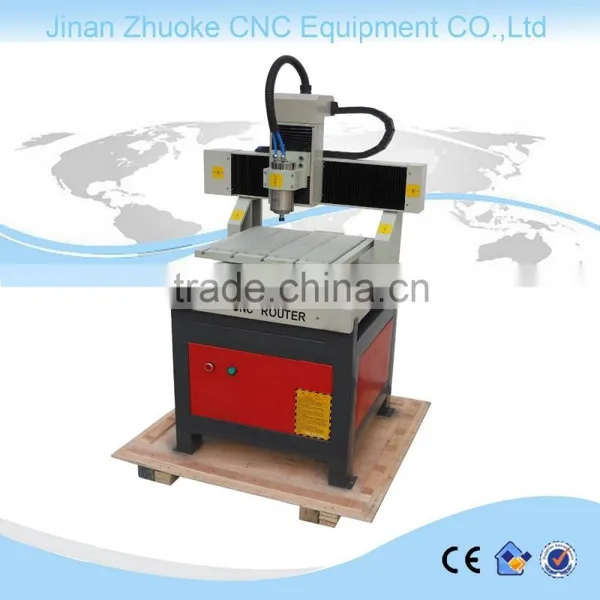

Machine picture of PCB CNC milling and drilling machine
Function introduction of PCB CNC milling and drilling machine
1. Drilling on the copper-clad laminates
2. Stripping off the no need copper foil, forming wire welding plate.
3. Milling cutter line along the appearance, make the circuit board and plank separation.
4. Directly setting the original point, and resetting function
5. Software virtual machining, can preview the processing path.
6. Real-time the processing path and time showing
7. Power off, break point continue working.
8. Combination engraving, available setting 2 cutters processing, shorting the processing time.
9. Can setting any region processing.
Advantage of PCB CNC milling and drilling machine
1. Not only for the single sided board, but also for the double sided, and the processing are very
simple.
2. Engraving speed is adjustable, possibly to forming the very slimsy circuit board, any time
stopping in the processing progress.
3. Adjusting the Z-axis height in the processing processing.
4. Using the universal G code processing file, such as Power PCB, Protel 99 all can use for the
circuit designing, better adaptability.
5. The estimation of the processing time, avoiding the long time meaningless waiting.
6. Isolation function, just needing 1-2 minutes, achieving the insulation for the circuit board and the surrounding copper.
Main technical parameters of PCB CNC milling and drilling machine
Items |
Description |
Items |
Description |
Working area |
400*400mm |
Working speed |
adjustable |
Transmission |
high precision ball screw for X Y Z-axis |
Driving mode |
Stepper motor |
Spindle power |
1.5Kw water cooling or higher |
Spindle speed |
0-24000rpm |
|
Minimum processing line diameter |
6-8mil |
Minimum processing line distance |
8mil |
|
Minimum stepping distance |
0.003125mm |
Milling speed |
5000mm/min |
Processing panel |
Single/double sided |
Line isolation |
Yes |
Compatible software |
PowerPCB, protell 99, etc |
Control system |
PCI NcStudio or (DSP offline or MACH3) |
Working humidity |
30%-75% |
Power supply |
AC 220V, 50/60Hz or according to your need) |

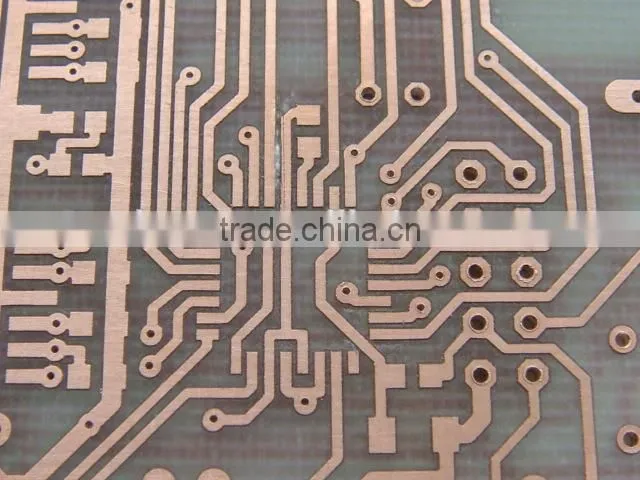

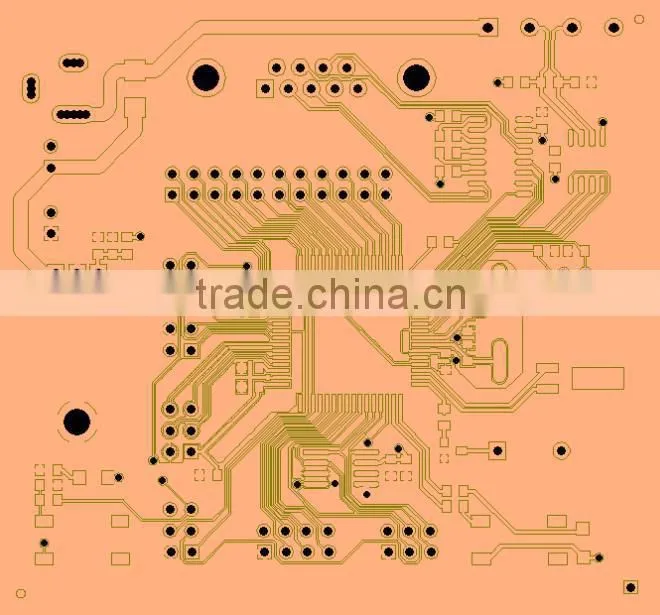

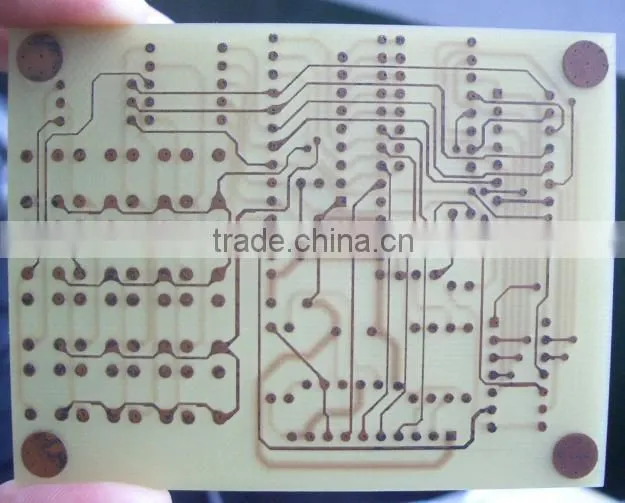

PCB samples
PRE-SERVICE
Offer us a caill, even cooperate with us or not, you may get unexpected harvest. We could discuss the future
development of this line together accroding to many years' experience in selling and producing which could
help to enlarge the profits and improvement for both of us.
Studying customers' requirement carefully, we could help clients to choose the best suitable machine and
also will offer you the relative samples and suggestions promptly and consinderately to customer's
production scale and technical requirement.
SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer,
including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.
AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing
the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians
go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will
offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during
the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
Jinan Zhuoke CNC Equipment Co.,Ltd is a modern enterprise integrating reach and
development, manufacturing, sale and after sale service, located in Jinan City, Shandong Province, China.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving
Cutting machine, with high quality and top sales and after sales-service, we have won the customs trust and support from all over the world. Also, our machine can be
specially customized according to your requirement.
Our technical and sales teams which are professional and unitive, can give the best
service of consulting, installation, operation, maintenance, etc.
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our
machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you
still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by
phone, email or other online way.
Q3: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q4: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone
cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your
requirement, then tell us. We have the ability to make specially according your requirement!
