Specifications
z-axis height can adjustable in the processingusing the universal G code
the estimation of the processing time
Machine instruction:
1. Not only for the single sided board, but also for the double sided, and the processing are very simple.
2. Z-axis height can adjustable in the processing.
3.Using the universal G code processing file, such as Power PCB, Protel 99 all can use for the circuit designing, better adaptability.
4.The estimation of the processing time, avoiding the long time meaningless waiting.
5. Isolation function, just needing 1-2 minutes, achieving the insulation for the circuit board and the surrounding copper.
Main superiority:
1.Precision of products exceed the level of similar ones,only 1/5 price of the similar products
2.Operation is more convenient.
3.Extremely efficient performance,making a simple circuit board just 12 minutes,to make a complex circuit board is also about 20 minutes.
4.Environmental performance,physical carving,corrosion-free,to avoid environment pollution.
5.Solve the trouble of the printed version of the modified.
Also have other models

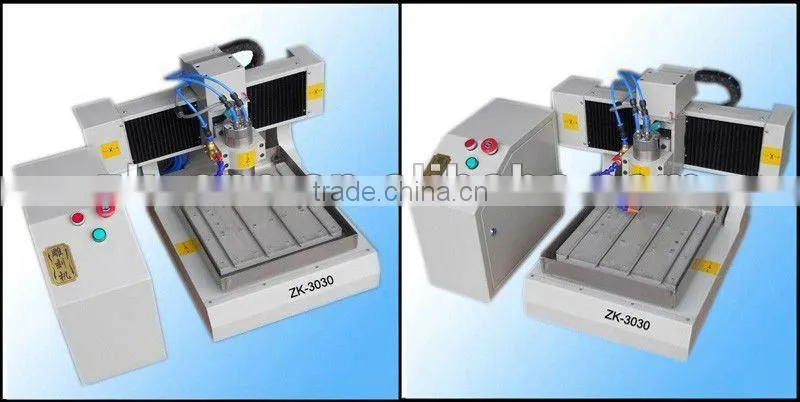

ZK-3030 , 300*300mm
ZK-4040, 400*400mm
ZK-6090. 600*900mm
Or we can design according to your need.
Samples pictures:
For further details, pls feel free to contact us!
Technical Parameters:
Items |
Description |
Items |
Description |
Working area |
600*600mm |
Working speed |
adjustable |

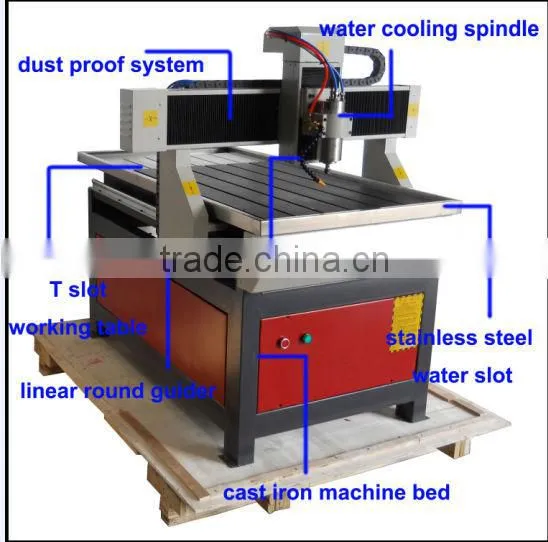

Transmission |
high precision ball screw for X Y Z-axis |
Driving mode |
Stepper motor |
Spindle power |
1.5kw water cooling or higher |
Spindle speed |
0-24000rpm |
Minimum processing line diameter |
6-8mil |
Minimum processing line distance |
8mil |
Minimum stepping distance |
0.003125mm |
Milling speed |
5000mm/min |
Processing panel |
Single/double sided |
Line isolation |
Yes |
Compatible software |
PowerPCB, protel99, etc |
Power supply |
AC 220V 50/60Hz,or AC110V 50/60Hz |
Packing size |
1150*1050*1600mm |
Gross weight |
175kg |
