Home > Electrical & Electronics > Power Transmission & Transformer > Transformer > JSJV-35GYW1 High Voltage Transformer and Voltage Control Protection

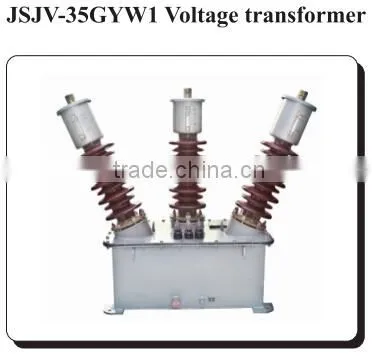

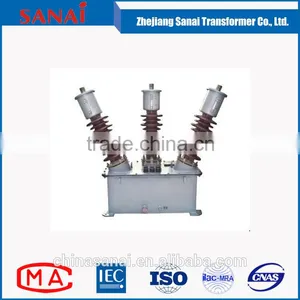

JSJV-35GYW1 High Voltage Transformer and Voltage Control Protection
US$ 1,000 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SANAI
Model Number:
JSJV-35GYW1
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
33kv 35kv 36kv Indoor Voltage/potential TransformerNegotiableMOQ: 3 Pieces -
33kV 35kV 36kV Voltage/Potential TransformerNegotiableMOQ: 1 Piece
-
33kv /35kv/36kv Outdoor Dry Type Voltage/potentail TransformerUS$ 100 - 1,050MOQ: 1 Piece
-
Voltage Transformer 33kV JDJJ2-35US$ 370 - 580MOQ: 10 Pieces
-
JSJV-35 Oil-immersed Outdoor Type Voltage TransformerUS$ 1,000 - 2,000MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
SANAI
Model Number
JSJV-35GYW1
Usage
Instrument
Phase
Three
Coil Structure
Toroidal
Coil Number
Autotransformer
The voltage transformer is three phase and oil-immersed product,It is used for metering energy,voltage control protection in the electric system of rated frequency 50Hz or 60Hz and rated voltage 35kv.

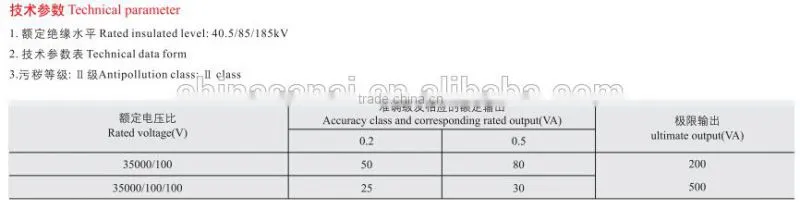

Ref |
JSJV-35 |
Um |
36kv |
Test Voltge |
70kv/170kv |
Rated primary Voltage - U PN |
35000 33000 |
Rated Secondary Voltage - U SN |
100V or 110V |
Thermal Limiting Output |
200VA, 500VA |
Rated Burden In Accuracy Class(IEC) |
0.2: 50VA |
0.5: 80VA | |
1.0: 100VA | |
Frequency |
50/60Hz |
Hight voltage transformer
th phase voltage transformer
oil-immersed voltage tran
high oil-immersed transformer
