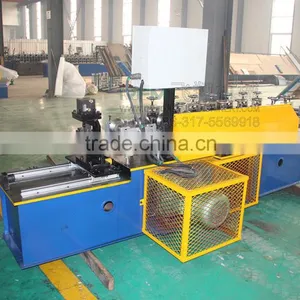

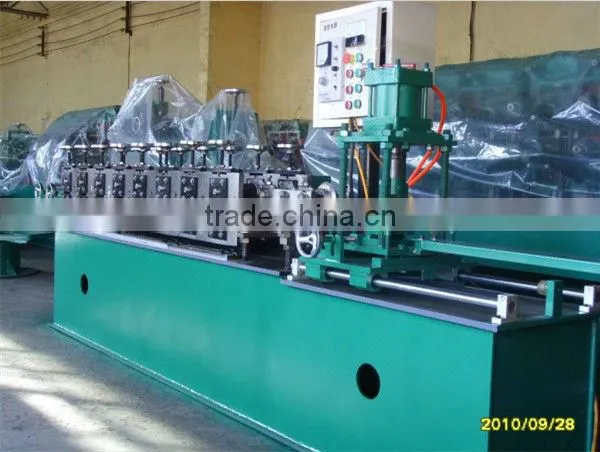

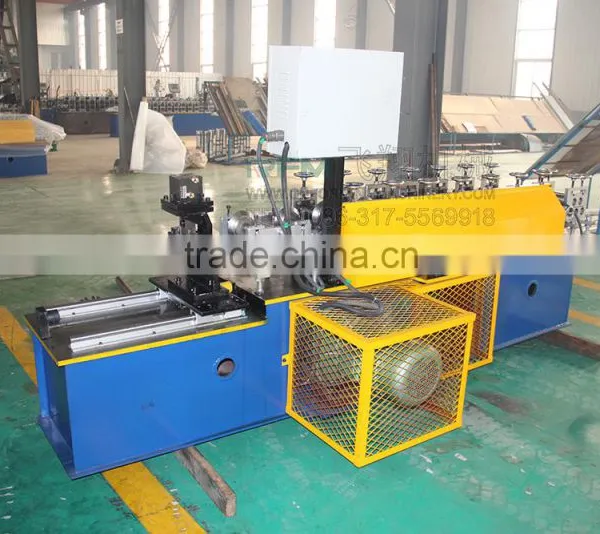

angle channel angle bead forming rolling machine

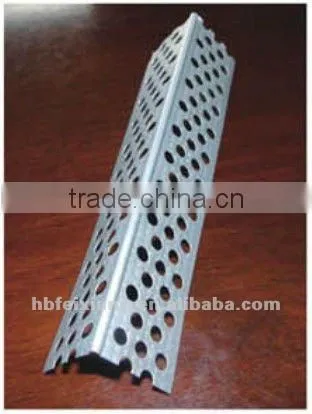

1. Profile |
Depend on the profile drawing
|
2. Process flow |
Decoiling--feeding---levelling--forming---measuring---cutting---production
|
3. Decoiler |
Manual decoiler il inner diameter: 450-700mm il max width: 600mm 3.max carrying capacity: 1500kg
|

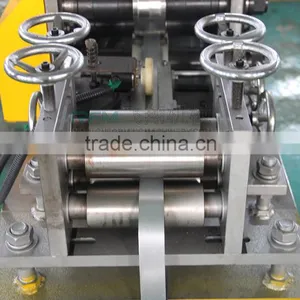

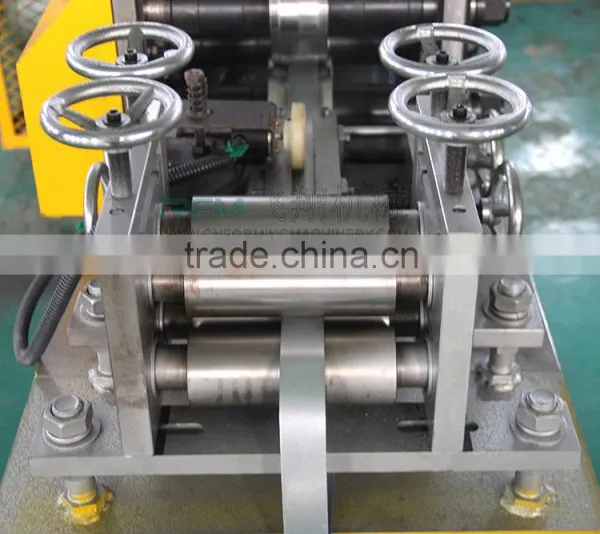

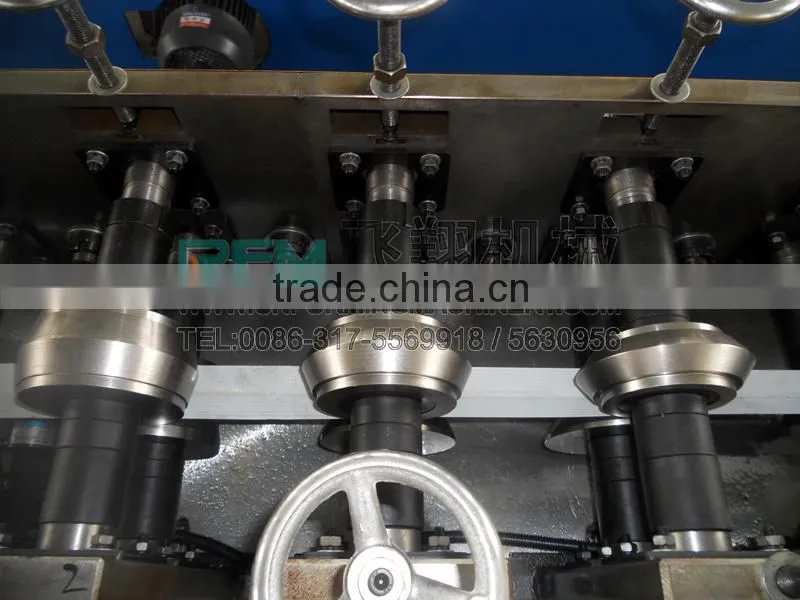

4.Forming device |
1. Shaft material & rollers material&shaft diameter 45# steel adjustable treatment ;45# steel, polished, plate of chrome 0.05mm; 60mm 2.Rollers; 9 steps 3. Transport; chain drive 4. Forming speed; 20 m/min 5. Motor; 3kw
|

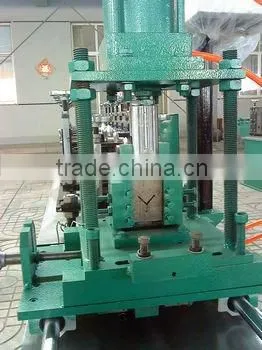

5. Cutting device |
1). Material: blade, puncher and mold material: Cr12 steel with quenched treated60-62 2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
|
6.Controlling device |
1. screen: text screen from Taiwan 2. PLC: Taida DVP14ES from Taiwan 3. coder: ENC-1-1-1T-24 from South Korea
|
7. Hydraulic |
1. Advanced hydraulic system from Taiwan 2. Power: 3kw
|
8. Spare parts |
1. easy damaged parts: conk 2 pcs, fuse-link 4 pcs 2. rubber mat 1 pcs; 3. bolt spanner 1 pcs
|

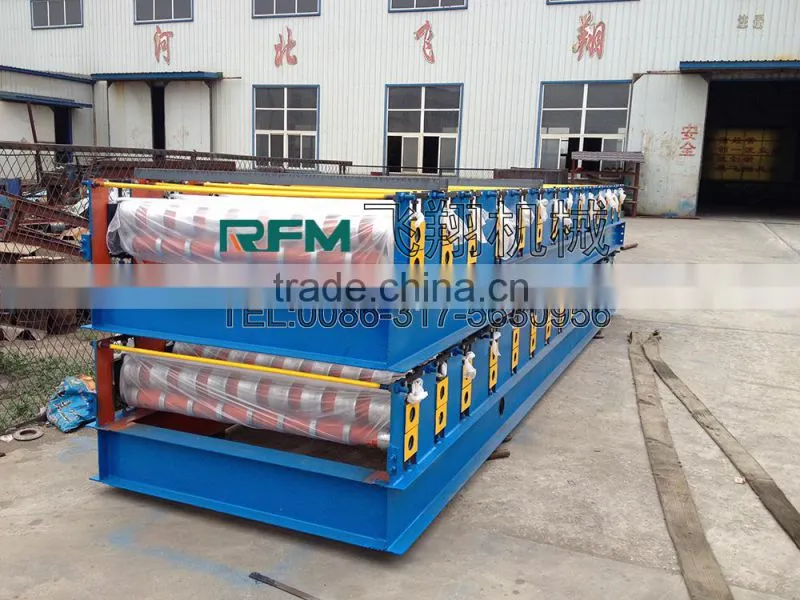

hebei feixiang metal angle iron roll forming machines
HEIBEI FEIXIANG ROLL FORMING MACHINERY CO,LTD.

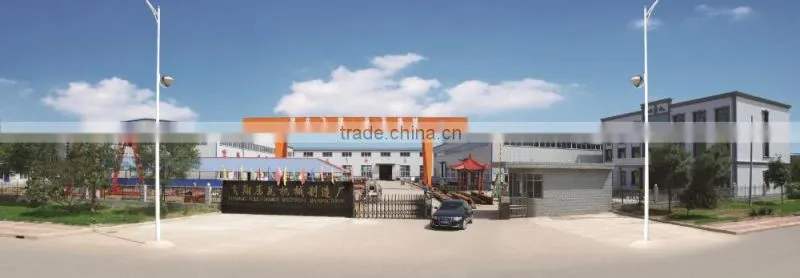

View of feixiang:
certifaicates:
customers from all over the world:

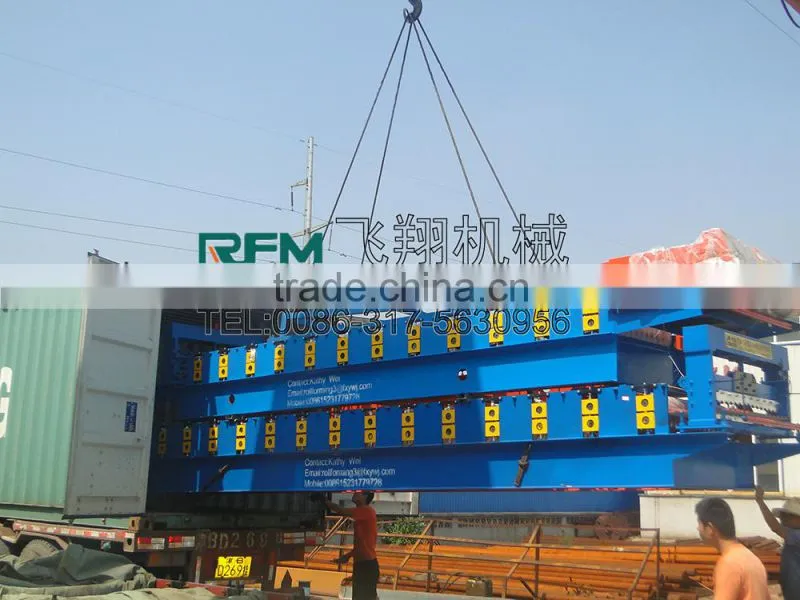

Package and shipment:
