Large Full Size Switch Lock

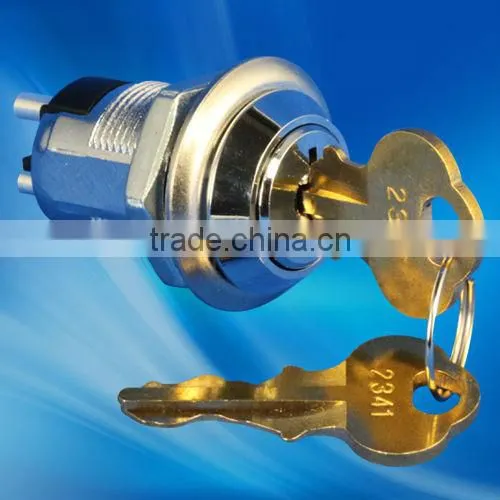

Large Full Size Switch Lock photo-1
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
JINTAY
Model Number:
S203B
Payment & Shipping
Payment Methods:
Port of Shipment:
TAIWAN
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Taiwan, China
Brand Name JINTAY
Model Number S203B

Specifications

1. key switch lock
2. zinc alloy die casting housing and cylinder.
3. switch function off-on
4. UL approval

No.: S203B S203BM
Product Name: Flat Key Switch Lock
DESCRIPTION:
  • Zinc alloy die cast housing and cylinder.
  • Bright chrome plated standard.
  • 11 disc tumbler mechanism.
  • Reversible double-bitted brass keys
  • Key may be withdrawn in one or both positions.
  • S203B 2 position (off-on) 2 tubular terminals.
  • S203BM 2 position (off-on) 2 tubular terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • All keyed alike or 5 combinations standard.
  • 5 combinations available.
SPECIFICATIONS:
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC -1 Minute.
KEY-PULL FIGURES :

-Off Position
-Indicates Key-Pull
-Indicates No Key-Pull



Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S203-1 1 2 2 1 90 ° Off On SPST
2 S203-2 1 2 2 2 90 ° Off On SPST
3 S203M 1 2 2 1 90 ° Off (On) SPST
