Help CenterDual Functioned Tubular Key Lock Switch
Negotiable
MOQ: 1000 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
JIN TAY
Model Number:
S1097
Payment & Shipping
Payment Methods:
Port of Shipment:
Taipei Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Micro Dual Functioned Tubular Key Lock SwitchNegotiableMOQ: 1000 Sets -
12 Micro Key Switch Lock SafeNegotiableMOQ: 1000 Sets
-
12mm Micro Rotary Switch Key LockNegotiableMOQ: 1000 Sets
-
Security Micro Tubular Key Switch LockNegotiableMOQ: 1000 Sets
-
19 Large Electrical Switch Key LockNegotiableMOQ: 1000 Sets
Place of Origin
Taiwan, China
Brand Name
JIN TAY
Model Number
S1097
Specifications
>Dual Functioned Tubular Key Lock Switch>Zinc alloy die-casting housing and cylinder
>Switch function off-on
>No pin tumbler

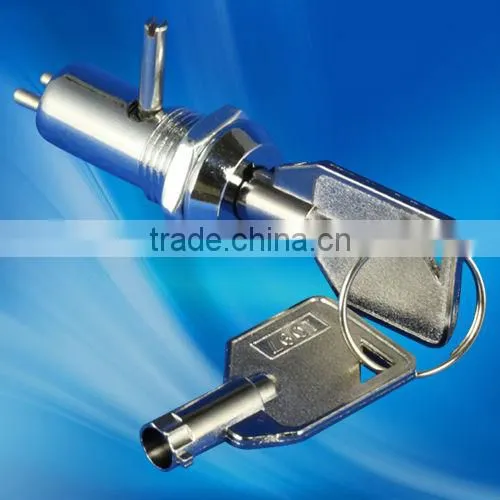

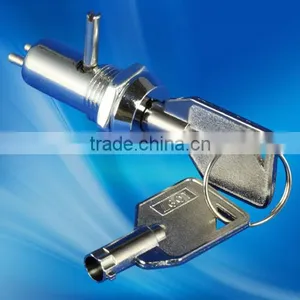

Product Name: Dual Functioned Tubular Key Lock Switch
DESCRIPTION:
- Zinc alloy die cast housing and brass cylinder.
- Bright chrome plated standard.
- No pin tumbler mechanism.
- Zinc alloy tubular keys, chrome plated .
- “L” dimension 13mm standard; other dimensions available upon request.
- Dual-functioned Key Lock Switch.
- Key withdrawals in both positions only.
- Silver plated contacts and terminals.
- 2 position (off-on) 2 terminals.
- Hex nut or speed clip mounted.
- All keyed alike or 6 combination standard.
- 6 combinations available.
KEY-PULL FIGURES :
- Off Position
- Indicates Key-Pull
- Indicates No Key-Pull
| Fig. No. | Lock Number | Pole | Positions | Terminals | Key Pulls | Turn | |
|
Type |
| 1 | S1097-2 | 1 | 2 | 2 | 2 | 90 ° | Off | On | SPST |
