Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Board Making Machine > Popualr Polyurethane Spray Foam Machine JHPK-H30

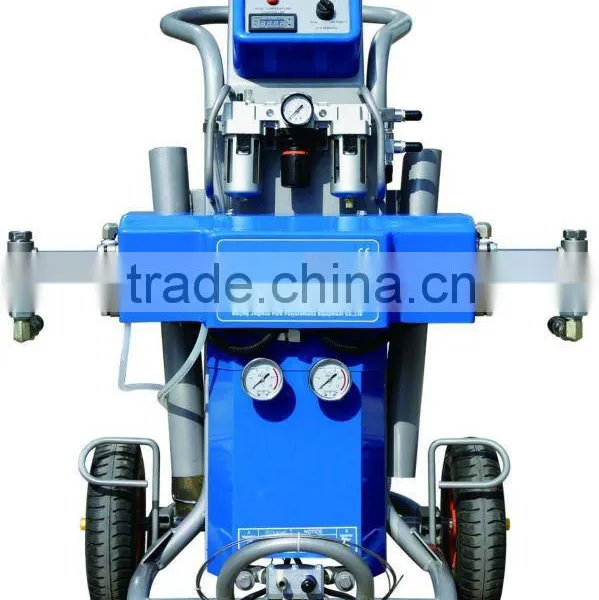

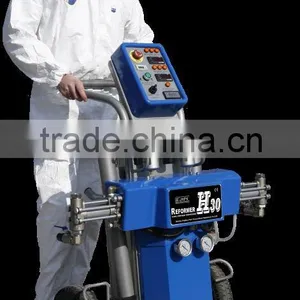

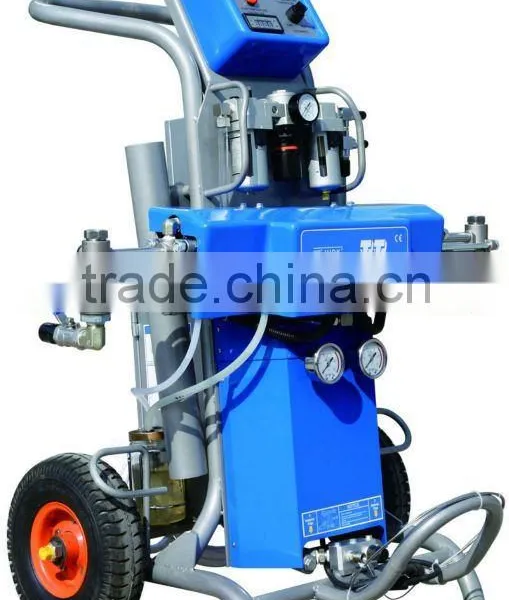

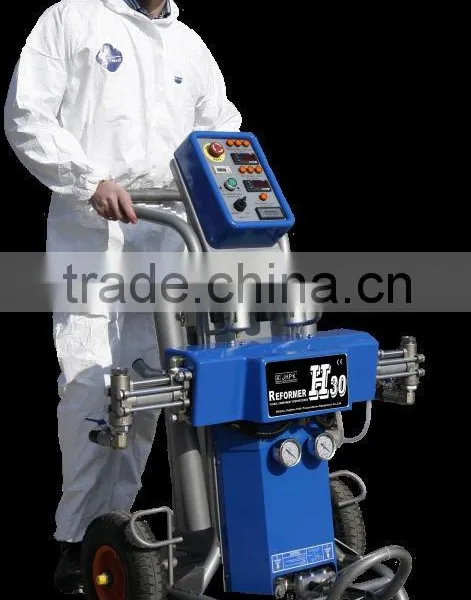

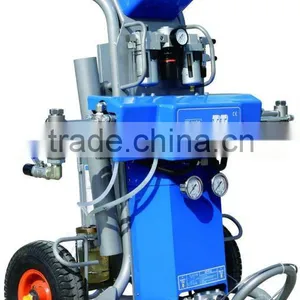

Popualr Polyurethane Spray Foam Machine JHPK-H30
US$ 9,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
jinghuapaike
Model Number:
JHPK-H30
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 New Design Polyurethane Spray Machine JHPK-H30US$ 9,000 - 10,000MOQ: 1 Set -
Polyurethane Spray Foam Machine JHPK-IIIB for Wall/roof InsulationUS$ 5,000 - 7,000MOQ: 1 Set
-
Changeable Ratio Polyurethane Machine JHPK-IIIB235US$ 6,800 - 8,000MOQ: 1 Set
-
2014 CE Mark Polyurethane Spray Foam Equipment JHPK-IIIB235 for Changeable RatioUS$ 6,800 - 8,000MOQ: 1 Set
-
2014 CE Mark Polyurethane Spray Foam Equipment JHPK-IIIB235US$ 6,800 - 8,000MOQ: 1 Set
Place of Origin
Beijing, China
Brand Name
jinghuapaike
Model Number
JHPK-H30
After-sales Service Provided
Overseas third-party support available
Product Description

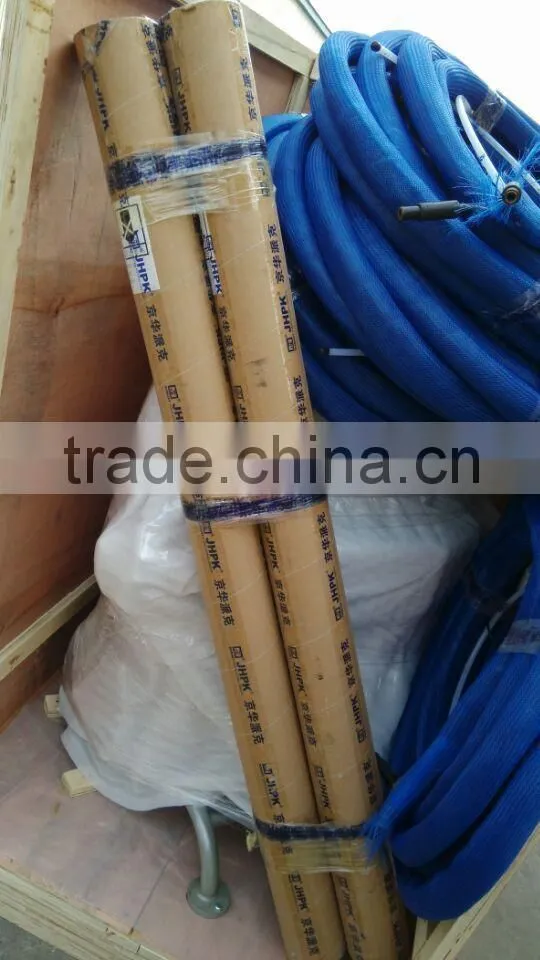

Packaging & Shipping

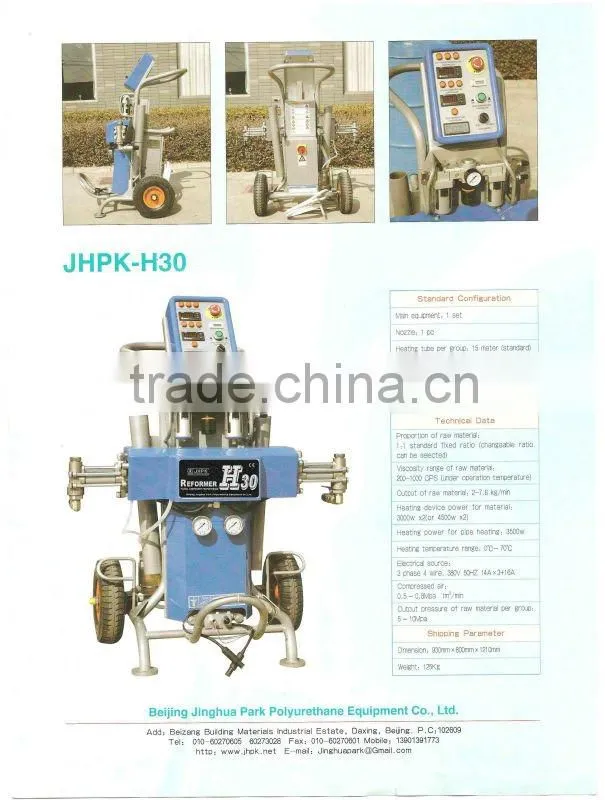

| Standard Configuration: |
|---|
Main equipment: 1 set Nozzle: 1 pc Heating tube per group: 15 meter (standard) Max. length (optional): 90 meter Short tube with nozzle per group: 1.5 meter Feeding pump: 2 sets |
| Technical Data: |
Proportion of raw material: 1:1 standard fixed ratio (changeable ratio can be selected) Viscosity range of raw material: 200-1000 CPS (under operation temperature) Output of raw material: 2-7.8 kg/min Heating temperature range: 0℃~70℃ Electrical source: 3 phase 4 wire, 380V 50HZ 14A×3+16A Compressed air: 0.5~0.8Mpa 1m3/min Output pressure of raw material per group: 5~10Mpa |
| Shipping Parameter: |
Dimension: 930mm×800mm×1210mm Weight: 125Kg |
