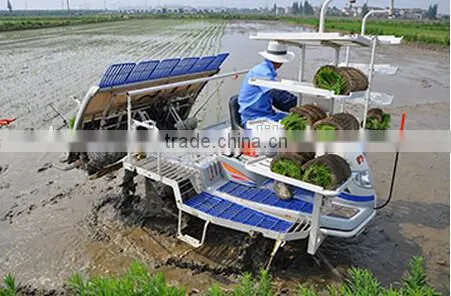

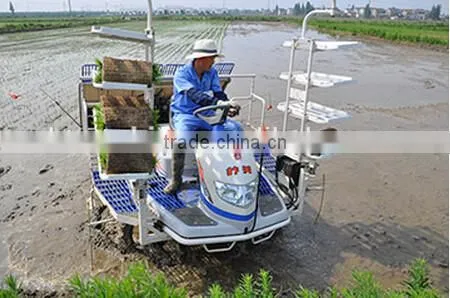

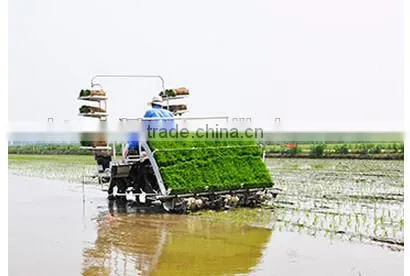

New Designed High Quality ISEKI Automatic Rice Transplanter :
1 Applications And Features:
1 Advanced HST stepless speed change device.
2 Equipped with low vibration, low noise,4 stroke 2 cylinder gasoline engine.
3 The planting part adopts the unique electronic balance device, to ensure rapid, high precision transplanting.
4 Product design with human nature, visual widening pedal, enlarged adjustable protection bar, suitable for large
areas operations.
2 Technical Parameters For 2Z-6B3(Gasoline) Type :
| Model | 2Z-6B3(PZ60-HGSR) | ||
| Dimension | 3070x2940x2425mm | ||
| Weight | 590Kg | ||
| Engine | Model | FD620 | |
| Feature | Water-cooling 4-stroke OHV gasoline engine | ||
| Displacement | 0.617 L | ||
| Power/Speed | 10.4kw/3600rpm | ||
| Fuel Type | No lead gasoline 93# | ||
| Fuel Tank Capacity | 20 L | ||
| Start Way | Electric start | ||
| Walking Part | Steer Mode | Hydraulic | |
| Front Wheel Type | Solid rubber wheels | ||
| DiamterxWidth | Φ650*90mm | ||
| Wheel Spacing | 1120mm | ||
| Back Wheel Type | Rubber lug non slip for paddy field | ||
| DiamterxWidth | Φ900*150mm | ||
| Wheel Spacing | 1220mm | ||
| Wheelbase | 1100mm | ||
| Shift Model | Hydraulic type continuously variable transmission (HST) | ||
| Shift Position | Forward : 2 backward : 2 | ||
| Working Speed | 0-1.6m/second | ||
| Walking Speed | 0-4.5m/second | ||
| Driving Way | Four-wheels Driving | ||
| Planting Part | Up And Down Adjustment | Hydraulic automatic adjustment | |
| Plant Way | Rotary | ||
| Plant Line | 6 lines | ||
| Spacing Between The Rows | 30cm | ||
| Spacing In The Rows | 25,21,,18,17,14,12,11cm | ||
| Plant Number In 3.3m² | 45,55,60,65,80,90,95 | ||
| Plant Depth | 2.0~5.0cm | ||
| Lateral Transfer Amount Per Hole | 15.6, 14.0, 11.7mm | ||
| Lateral Transfer Times Per Hole | 18,20,24 | ||
| Longitudinal Seedling Depth Per Hole | 8-18mm | ||
| Seedling Condition | Seedling Kind | Massive seedling | |
| Seedling Age | 2-4 leaves | ||
| Seedling Height | 10-25cm | ||
| Alarm Equipment | Machine Oil Pressure | Yes | |
| Water Temperature | Yes | ||
| Fuel Display | Yes | ||
| Seedling Exhaustion | Yes | ||
| Automatic Device | Accelerate Linkage HST | Yes | |
| Reversing Automatic Rise | Yes | ||
| Plant Balancing Device | Yes | ||
| Plant Depth Automatic Adjustment | Yes | ||
| Number Of Seedlings Ready To Load | 6 discs | ||
| Plantation Efficiency | 3999-7333m²per hour | ||
3 Technical Parameters For 2Z-6B2(Diesel) Type :
| Model | 2Z-6B2(PZ60-HDRT) | ||
| Dimension | 3180x2210x2425mm | ||
| Weight | 720Kg | ||
| Engine | Model | E3112-UP05 | |
| Feature | Water-cooling 4-stroke OHV gasoline engine | ||
| Displacement | 1.123 L | ||
| Power/Speed | 13.2kw/2300rpm | ||
| Fuel Type | Good diesel 0# | ||
| Fuel Tank Capacity | 20 L | ||
| Start Way | Electric start | ||
| Walking Part | Steer Mode | Hydraulic | |
| Front Wheel Type | Solid rubber wheels | ||
| DiamterxWidth | Φ650*90mm | ||
| Wheel Spacing | 1120mm | ||
| Back Wheel Type | Rubber lug non slip for paddy field | ||
| DiamterxWidth | Φ900*150mm | ||
| Wheel Spacing | 1220mm | ||
| Wheelbase | 1100mm | ||
| Shift Model | Hydraulic type continuously variable transmission (HST) | ||
| Shift Position | Forward : 2 backward : 2 | ||
| Working Speed | 0-1.8m/second | ||
| Walking Speed | 0-4.7m/second | ||
| Driving Way | Four-wheels Driving | ||
| Planting Part | Up And Down Adjustment | Hydraulic automatic adjustment | |
| Plant Way | Rotary | ||
| Plant Line | 6 lines | ||
| Spacing Between The Rows | 30cm | ||
| Spacing In The Rows | 25,21,,18,17,14,12,11cm | ||
| Plant Number In 3.3m² | 45,55,60,65,80,90,95 | ||
| Plant Depth | 2.0~5.0cm | ||
| Lateral Transfer Amount Per Hole | 15.6, 14.0, 11.7mm | ||
| Lateral Transfer Times Per Hole | 18,20,24 | ||
| Longitudinal Seedling Depth Per Hole | 8-18mm | ||
| Seedling Condition | Seedling Kind | Massive seedling | |
| Seedling Age | 2-4 leaves | ||
| Seedling Height | 10-25cm | ||
| Alarm Equipment | Machine Oil Pressure | Yes | |
| Water Temperature | Yes | ||
| Computer Self-test Function | Yes | ||
| Fuel Display | Yes | ||
| Seedling Exhaustion | Yes | ||
| Automatic Device | Automatic Turn Lift And Down | Yes | |
| Automatic Lineation | Yes | ||
| Automatic Planting | Yes | ||
| Accelerate Linkage HST | Yes | ||
| Reversing Automatic Rise | Yes | ||
| Plant Balancing Device | Yes | ||
| Plant Depth Automatic Adjustment | Yes | ||
| Number Of Seedlings Ready To Load | 8 discs | ||
| Plantation Efficiency | 3999-7999 m²per hour | ||

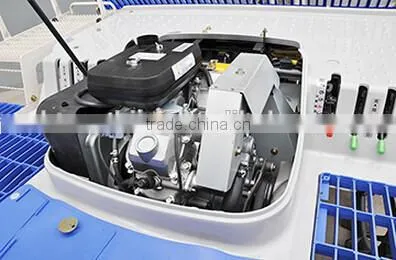

Powerful engine,Even under the harsh conditions with wet bad mud, it also can work at ease.
Engine is under machine seat,at the center of machine,the machine can balance well, can transplant at stable posture.
Automatic lift and down :
When turn a corner,through the steering wheel, transplant part will automatically ascend and cut the clutch,the transplant work will stop.
Easy revolving :
The clutch is automatically cut off when turning a corner,the inside wheel is in now power state,achieve a smooth turn with small amount of mud.
Automatic transplant :
After turning, the transplant part automatically drops,retransplant.
At the start and end of transplanting, the seedling is consistent and orderly.

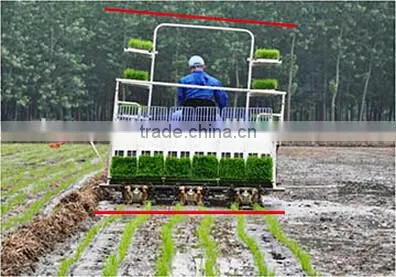

Automatic marking :
After turning, transplanting part down and automatically make the line.
Automatic level control :
Even if the body tilts,the transplant part also can maintaine level, left and right depth is very uniform, so the missing seedling is very little.

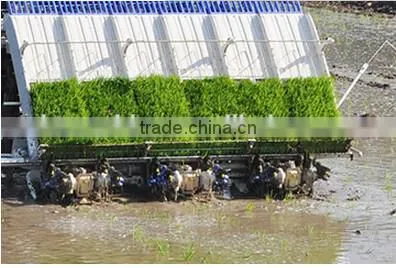

Feeding seedling belt
Can cope with a variety of seedlings, even if the weak seedlings can also be accurately sent.
Speed sensing type hydraulic control :
The microcomputer device can be used for precise hydraulic control.
If speed is faster, the resistance of pontoon in water will become bigger, hydraulic sensing degree automatically becomes dull to mend the resistance. Therefore, no matter how much speed, can guarantee equal transplant depth.
