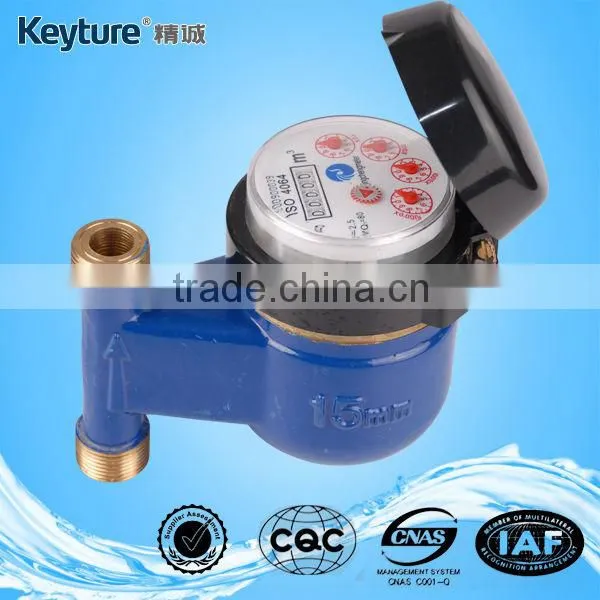

Rotary Vane Vertical Water Meter

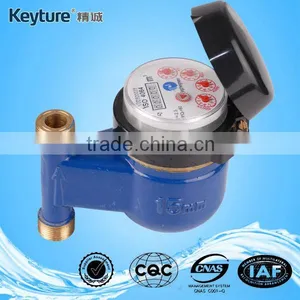

Rotary Vane Vertical Water Meter thumbnail-1
Rotary Vane Vertical Water Meter thumbnail-2
Rotary Vane Vertical Water Meter photo-1

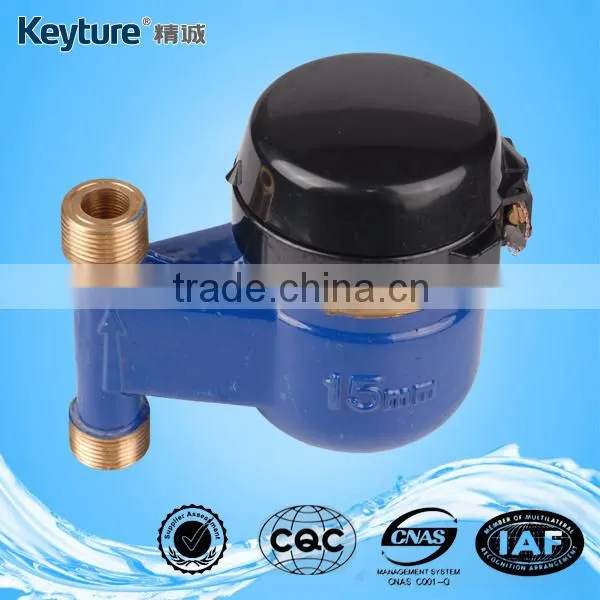

Rotary Vane Vertical Water Meter photo-2
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Keyture
Model Number:
LXSL-15-25
Contact Supplier Request Quote Chat Now
Ningbo Jingcheng Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Keyture
Model Number LXSL-15-25

ITEM NO

LXSL-15~25E (WET-DIAL COLD WATER METER)

LXSLR-15~25E (WET-DIAL HOT WATER METER)

LXSGL-15~25E (LIDUID SEAL COLD WATER METER)

LXSGLR-15~25E(DRY-DIAL HOT WATER METER)



Application

Measuring ,memorizing and displaying the volume of cold(hot) water passing through the pipeline



FEATURES

1, Installed in vertical pipeline which is suitable for household as branch meter and easy for installation.

2, Selected high quality materials for steady& Reliable function and appearance

3, Wet dial ,dry dial or liquid, Iron or brass body ,cold or hot water meter for optional



MAIN TECHNICAL DATA:

water meter temperature grade:  T30,T50,T70,T90

Pressure grade:MAP10

Pressure loss grade: P63

Upstream disturbance grade:U5

Downstream disturbance grade:D0



MAXIMUM PERMISSIBLE ERROR:

a) In the lower zone from Q1 inclusive up to but excluding Q2 is ±5%

b)If the temperature≤30°C,  In the upper zone from Q2 inclusive up to and including Q4 is ±2%

If the temperature>30°C,  In the upper zone from Q2 inclusive up to and including Q4 is ±3%



Note: Technical data conform to ISO4064



FLOW TECHNICAL DATA

Item No

Size

R

Flow turndown

Q4

Max Flow

Q3

Nominal Flow

Q2

Transitional Flow

Q1

Min Flow

Min Reading

Max Reading




mm

Q3/ Q1

m³/h

L/h

m³



LXSL-15E

LXSLR-15E

LXSGL-15E

LXSGRL-15E

LXSYL-15E

15

80

3.125

2.5

50

31.25

0.00005

99999



100

40

25



LXSL-20E

LXSLR-20E

LXSGL-20E

LXSGRL-20E

LXSYL20E

20

80

5

4

80

50



100

64

40



LXSL-25E

LXSLR-25E

LXSGL-25E

LXSGRL-25E

LXSYL-25E

25

80

7.875

6.3

126

78.75



100

100.8

63
