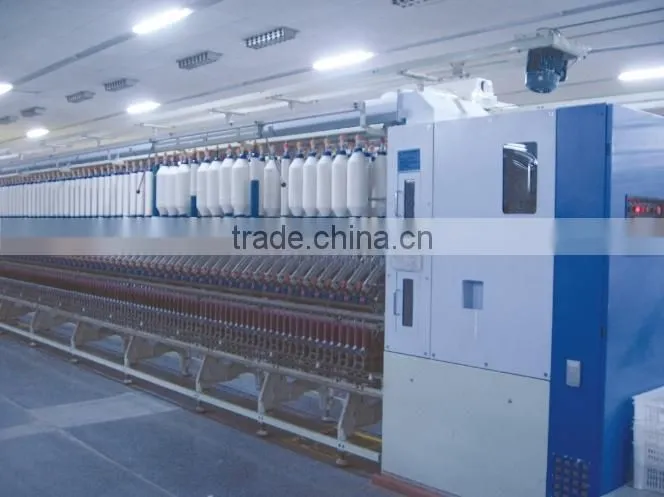

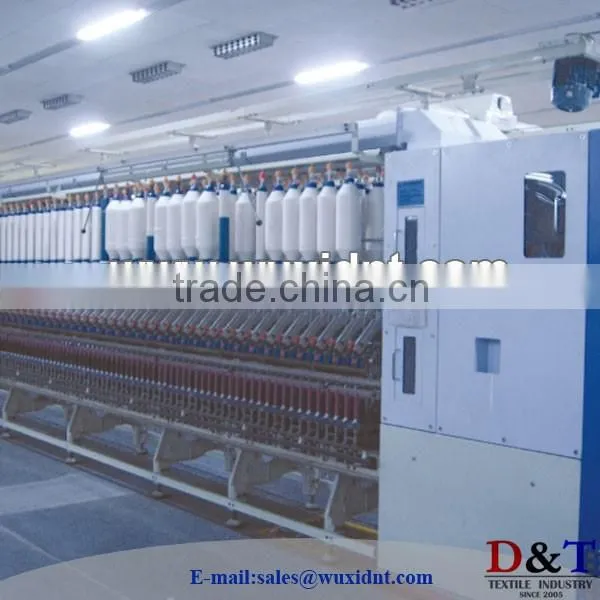

Three-Roller Compact Spinning System
The basic principle of compact spinning
The basic principle of compact spinning is to install a regional air gathering agency on the drawing deviec zone of the traditional ring frame spinning machines,make the required fiber output from the former roller jaws,
after airintake ducts and heterosexual above the grid laps to use negative pressure airflow drawing gathered fibers,reduce the triangle zone during spinning to control planktonic fiber,yarn hairiness greatly reduced,
spinning’s end breakage decreased significantly,make the yarn cleaner,stonger,more compact and fewer defects.
The scope of compact spinning machines
1.Support for matching with the new machine and reform of old machine for domestic spinning frame.
2.Reform of imported old spinning frame such as Switzerland RIETER,G1/5 spinning frame.
3.Apply for the cradle:pneumatic cradle,spring cradle and SKF cradle,etc.
At present,we have successfully frformed nearly 1500,000 compact spinning machines,and has accumulated rich experience in the process of reform.In order to adapt to the market,hellping reforming enterprises save coast,it support for reform of old and machine with new machines for most our doestic spinning frames.Passed the test,the quality of yarn can be comparable to the imported compact spinning machines closely,and the cost of transformation will be greatly reduced.
In the process of reform,we will take full account of the customer’s resonable requirement,and reply and resolve the various issues users raised at any times.We warmly welcome old and new customers to give our work and services the most valuable advice.We will be seriously and modestly rectification and reform,and ultimately achieve the purpose of a win-win situation.
The main components for device of compact spinnning machines

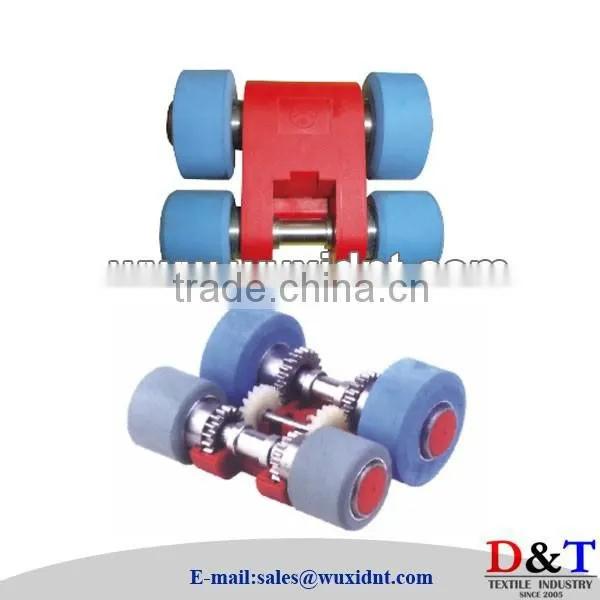

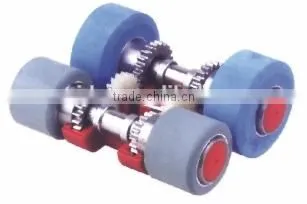

1.Output apron(gear box) combined pieces.
Using the original spinning frame cradle combined with reformed components(gear box) achieve technical requirements for compact spinning machines spinning.

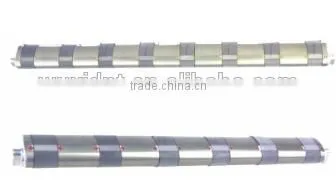

2.Vacuum tube airstream gathered heterotypic
After special treatment,the surface of Vacuum tube,through the principle of negative pressure fan,is to make sure of the effect of spinning under the cooperation of grid laps.

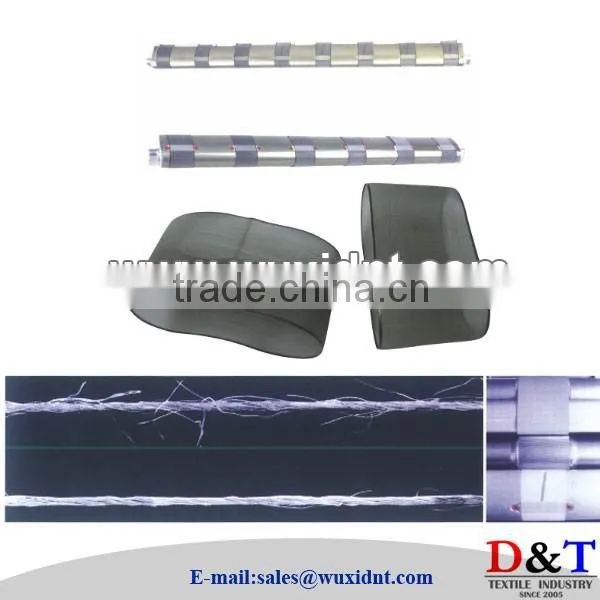

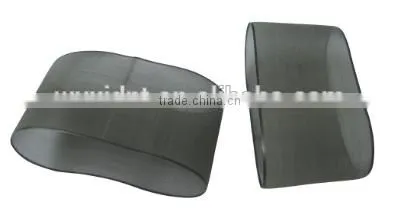

3.Grid Laps
Grip laps is one of the essential parts in compact spinning.We adopt the special material in our grip laps which has high tensile strength,minor running resistance and long using life.
Main character of compact spinning machines after reformed
By using the technology of reformed compact spinning,comparing with traditional ring spinning,its advantages are as following:

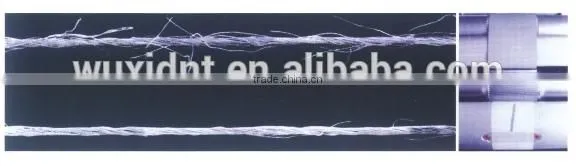

1.Yarn is more compact and has better finish.Yarn hairiness decreased abviously.Above 3mm of tube yarn,hairiness can be reduced more than 60%.
2.Strength is increased by10%-15%,compared with ring spinning.
3.CV% is better than ordinary yarn.
4.We can use a lower level of textile raw materials to produce the same quality of yarn as traditional ring spinning of spinning frame or use same raw materials to make out of higher quality yarn.
5.Breakage rate and fly decreased,hence the output increased obviously,the intensity of operative worker decreased significantly and the corporation cost delined.
