16us high speed digital display fiber optic amplifier
Advantage
1. 4bit green and 4 bit red LCD display
2. 16us high speed
3. Reaction Time:16us 70us,250us 2ms 8ms
4. Prompt shipment, factory always has stock.
5.18 month warranty, no worries about quality
Specification
16us high speed digital display fiber optic amplifier | |
Fiber Amplifier Model |
FF-301 |
Output Mode |
NPN Single Output |
Operating Voltage |
12~24VDC |
Power Consumption |
Less than 45mA at 24V |
Short Circuit Protection |
Yes |
| Working Indicator | Red Led |
Digital Display |
4 bit green&4 bit red LCD Display |
Sensitivity Distance Setting |
Auto&Manual adjustment |
Response Time |
16us/70us/250us/2ms/8ms |
Timer Function |
ON Delay Time/OFF Delay timer, Adjustable valid or invalid (Regular time:1ms,5ms,10ms,20ms,40ms,100ms,500ms,1000ms) |
Timer Adjustable Time |
0.1ms~9s |
Input Setting Method |
Auto teach/test/sync |
Operating Temperature |
-25~55℃ |
Operating Humidity |
35~85% |
Storage Temperature |
-40~70℃ |
Storage Humidity |
35~85% |
Shockproof |
Frequency 10~150HZ double amplitude 0.75mm, XYZ direction each 2hours |
Waterproof Grade |
IP50 |
Material |
ABS/PC |
Weight |
65g |

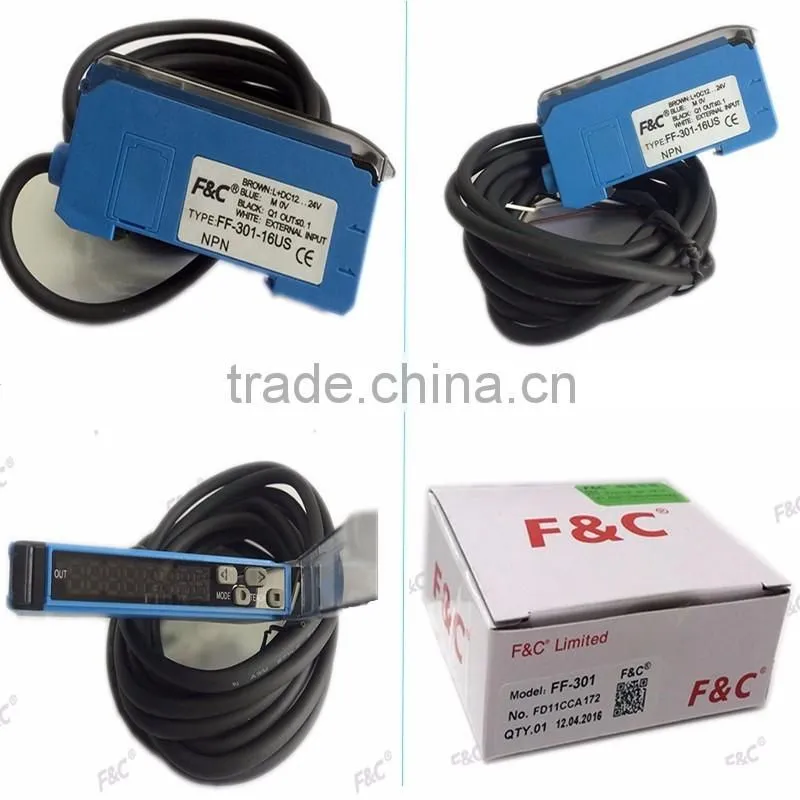

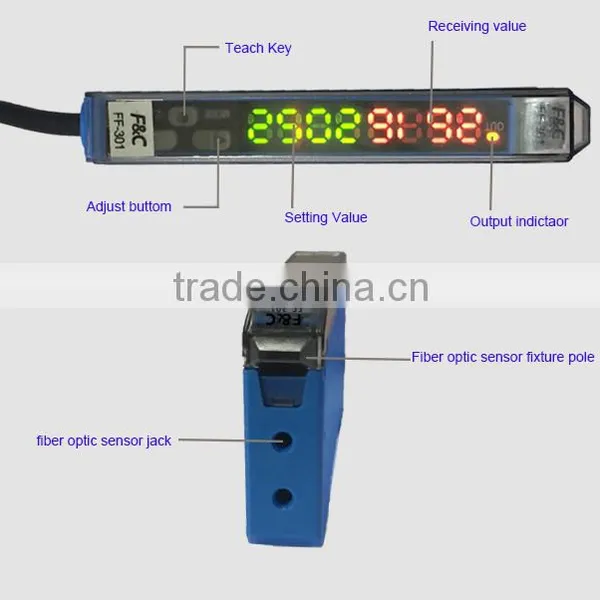

Product Display

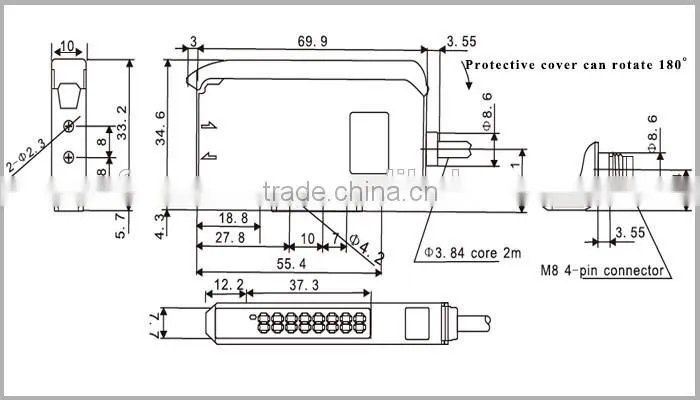

Dimension
Wire drawing
