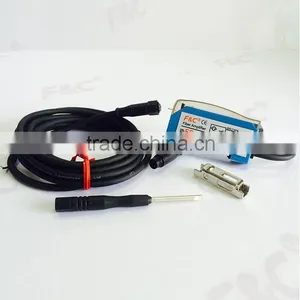

F&C FF-12 general purpose fiber optic sensor amplifier
Advantage for FF-12 Fiber optic sensors amplifier
1.10mm thickness, install several amplifiers at the same time.
2. Multi-turn sensivity adjustment, low cost.
3. Manual set offtime inductive time 4ms,40ms,400ms
Specification for F&C FF-12 fiber optic sensor amplifier
| Type | Universal |
| Model | FF-12 |
| Output Method | NPN |
| Operating Voltage | 12~24V DC |
| Current Consumption | 100mA Max |
| Load Current | 10mA Max @24V DC |
| Short Circuit Protection | Yes |
| Reverse Polarity Protection | Yes |
| Output Indicator | Red LED |
| Power Indicator | Green LED |
| Responsing Time | 200us |
| Sensing Function | Multi-turn 20 turns trimmer |
| Isolation Resistance | 20M Ω @500V DC |
| Insulation Strength | 60 seconds @500V AC 60HZ |
| Operating Temperature | -10~60℃ |
| Waterproof Grade | IP64 |
| Material | ABS |
| Acessory | Mounting Bracket |
Dimension drawing for FF-12 fiber optic sensor amplifier
More Product Information
Our Services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.
Packaging & Shipping
We will ship our product aboard with standard export package.
For small Qty, We will Ship our product to you by express.
For mass production , We will ship our product to you by Air or sea.
Company Information
F&C Sensing Technology is founded in Taiwan in 1993. Establish its Dongguan factory
in 2006 and move its factory to Changsha in 2013.
F&C Sensing Technology is a leading sensor supplier in China .Our product has been
sold to all over the world.Its products cover 14 series and 3000 specification.
Our main product includeFiber Optic Sensor, Fiber optic amplifier, Fiber optic Lens, Proximity
Switch, Photoelectric switch,Label Sensor, Light Curtain, Laser Alignment, Pressure Sensor,
Magnetic Switch, Connector, Laser Sensor, Color Sensor,Rail Power Supply, Solid State Relay.
F&C Technology has been making continuous breakthrough in new technology and new material
application, Our Target is “What you need can be found in F&C Sensing Technology”
Welcome to contact with us, I can be reached by cellphone/Wechat:0086 13809275350 and Skype:lynn_liu123.
