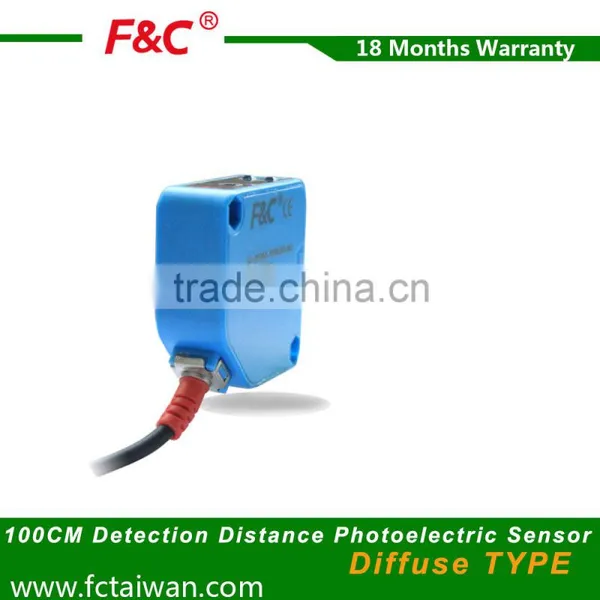

Help CenterF&C 100cm Detection Distance Rectangular NPN NO Diffuse Photoelectric Sensor
Related Products
-
F&C 40cm Detection Distance Rectangular Diffuse Photoelectric SensorUS$ 9.94 - 14.91MOQ: 1 Piece -
F&C 40cm NPN NO Diffuse Photo SensorUS$ 9.94 - 14.91MOQ: 1 Piece
-
HR Series Long Distance 10m Sensing Infrared12-24V dc Through-beam Photoelectric SensorUS$ 13 - 25MOQ: 1 Piece
-
F&c 10mm PNP 5vdc TOP INDUCTION 5vdc Photoelectric SensorUS$ 6.75 - 10.12MOQ: 10 Pieces
-
40cm Sensing Range Small Retangular PNP Diffuse Photoelectric SensorUS$ 11.45 - 17.17MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.Our Photoelectric switches are divided into HR series, QR series,DR18 Series,DR12series,DR06 Series by the dimension, which can meet different space installation requirement.We also have DR18 metal photoelectric sensors.
Welcome to conact with us for professional solution.
Feature of HR series photoelectric switch sensor
1.Retro-reflective photoelectric sensor detection distance can reach 6m.
2.Through-beam photolectric sensor detection distance can reach 15m.
3.Mannual setting normal open or normal close funcation.
4.Good anti-interference ability.
Product Specification
| Model | HRRI-S100N R2M |
| Output Method | NPN NO |
| Detection Type | Diffuse |
| Standard Detection Object Size | 10cm*10cm(White Paper) |
| Detection Distance | 100cm |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.5ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |
Dimension Drawing
Wire Drawing
NPN NO+NC
PNP NO+NC
Our service
About product: All our sensors use high quality material and we accept customization.
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
Contact information
Skype:lynn_liu123
Tel/ Wechat:+86 13809275350
