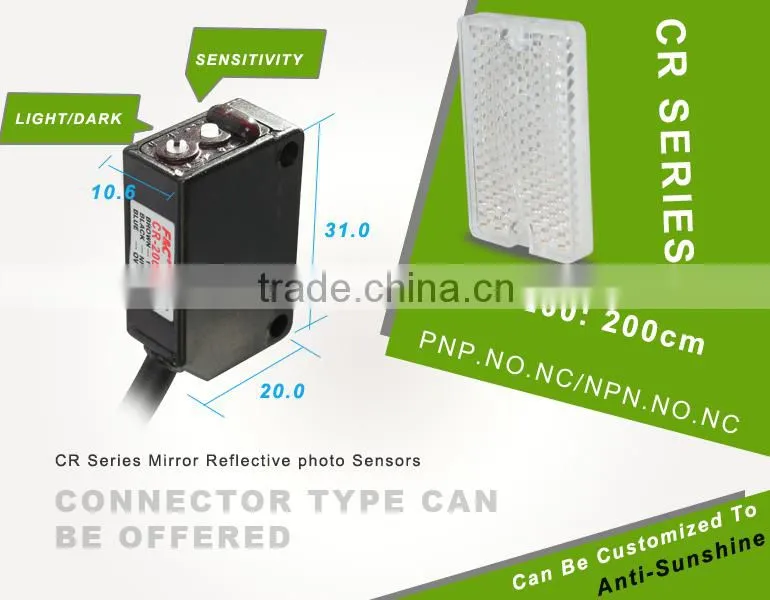

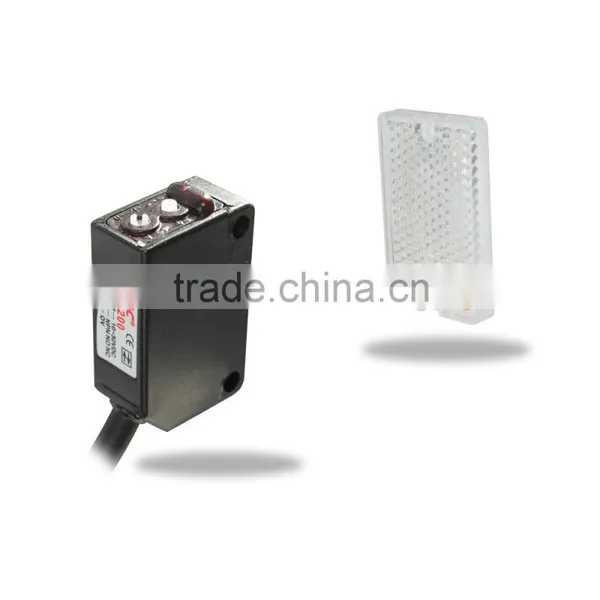

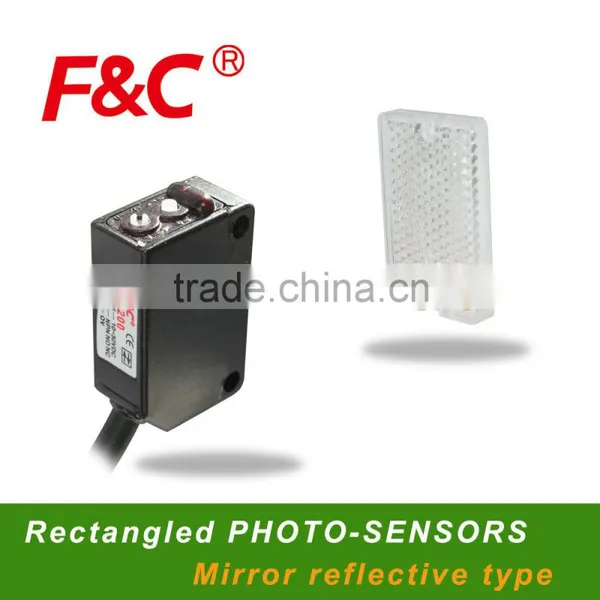

CR-200 Series Rectangled Photoelectirc Sensors, 200cm Mirror Reflective Photoelectric Switches
US$ 15 - 25
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
CR-200 mirror reflective series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CR-500/1000 Series Rectangled Photoelectirc Sensors, 500cm/1000cm Through-beam Photoelectric SwitchesUS$ 18 - 25MOQ: 5 Pieces -
FPJ Series Photo Sensors Switches, Small Rectangle, Finger Tip Size,small Infrared SensorsUS$ 12 - 18MOQ: 10 Pieces
-
FC-SPX308 FC-SPX309 Series Photo Switches Sensors, Top Sensing and Front Sensing, Glass Sensing, Transparent DetectionUS$ 10 - 18MOQ: 10 Pieces
-
U Shape Photo Sensors Switches, 7mm or 30mm Slot Width, Fork Sensors, Connector Type OfferedUS$ 20 - 30MOQ: 10 Pieces
-
F&C DR12 Series M12 Photoelectric Sensors, Cylinder Photo Sensors, Infrared Photo SwitchesUS$ 10 - 30MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
CR-200 mirror reflective series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
Specifications
CR-200 series rectangled photoelectirc sensors, 200cm mirror reflective photoelectric switches.
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
| Category |
Model |
Detection mode |
Detection distance |
smallest objects |
Entry cable |
| Mirror Reflective | CR-200 CR-200/15D |
NPN.NO.NC | 200cm | φ5 non-transparent | φ4×2M/3-wires)+φ4×2M/2-wires |
| CR-200P CR-200P/15D |
PNP.NO.NC |
| Emitting light | Red LED:630nm |
| Operating voltage | DC:10~30VDC±10%(Ripple P-P:10%Max) |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Output type | N=NPN.NO.NC P=PNP.NO.NC |
| Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
| Response time | 0.3 ms Max |
| Insulation resistance | 20M Ωmin.(DC500V) |
| Voltage withstandatility | AC1000V 60Hz for 60 Sec |
| Operating temperature | -10°C~+45°C(No freezing allowed ) |
| Ambient hunidity | 35%~85%RH |
| Storage temperarure | -10°C~+55°C(No freezing allowed ) |
| Storage hunidity | 35%~95%RH |
| Material | ABS |
| Wiring method | φ4×2M/3-wires/φ4×2M/2-wires |
| Protection degree | IP64 can customied IP67 |
| Weight | Approx.20g |

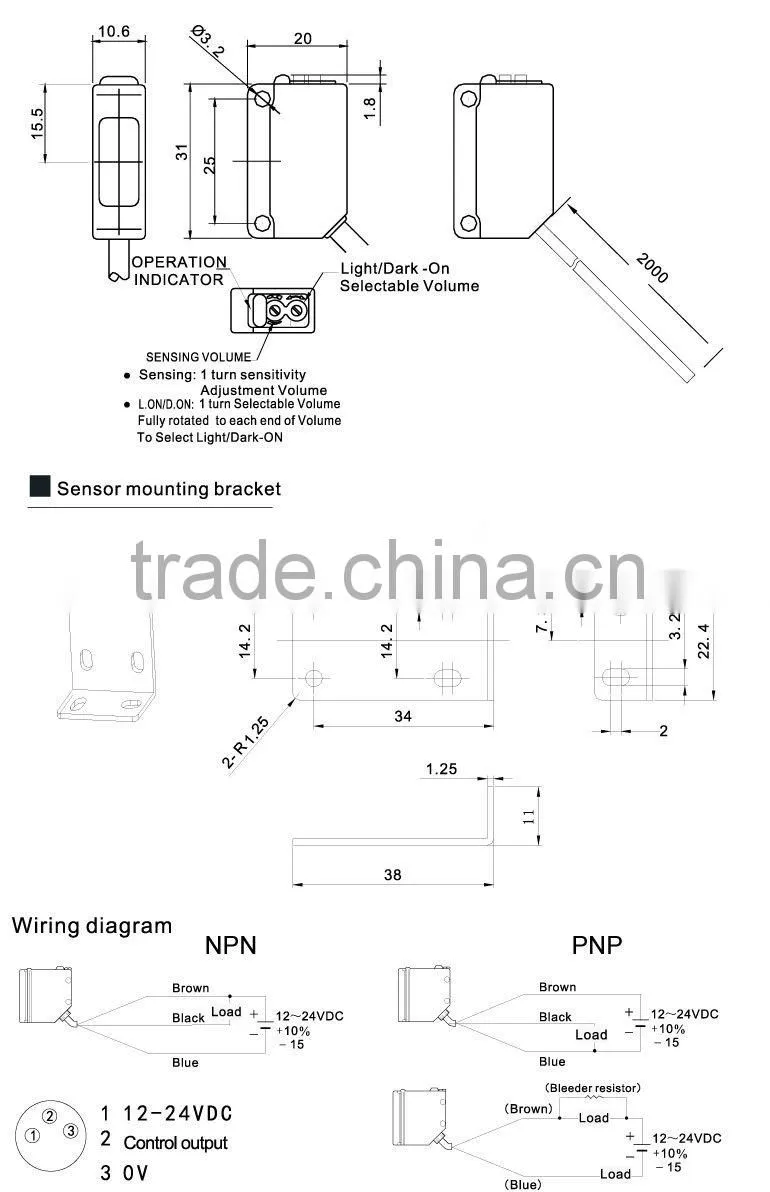

Diagram
