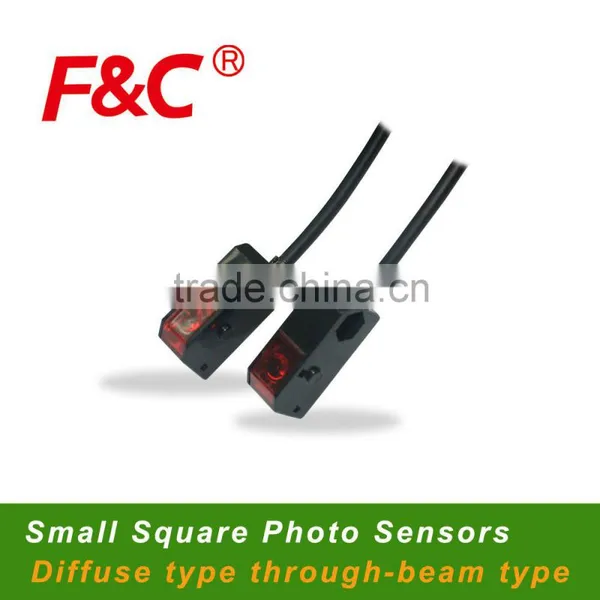

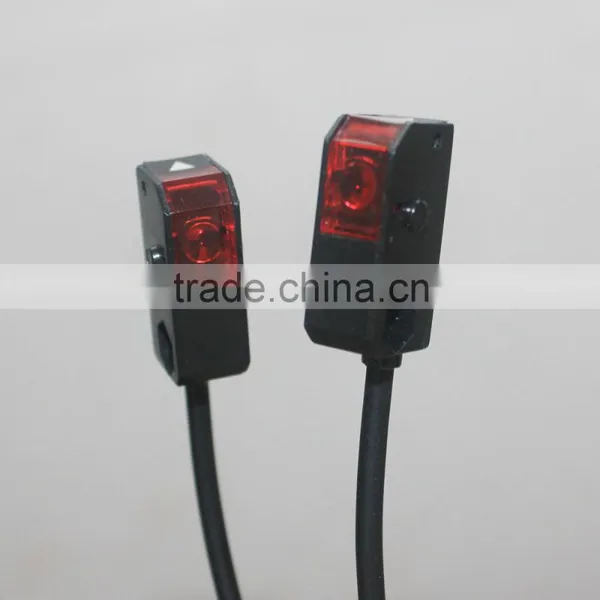

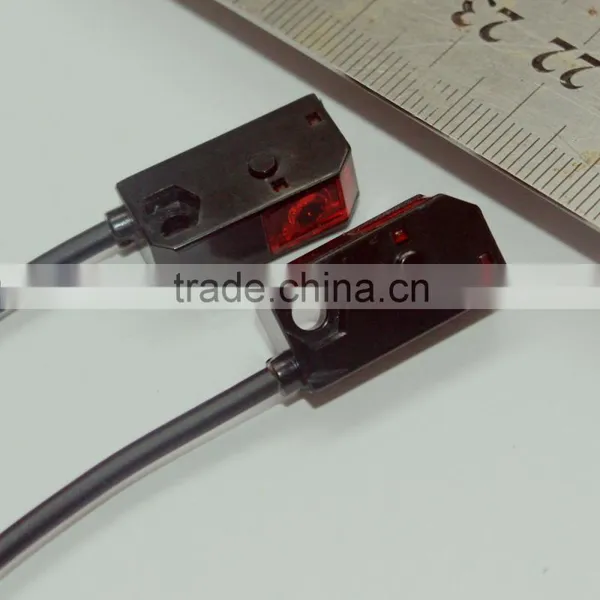

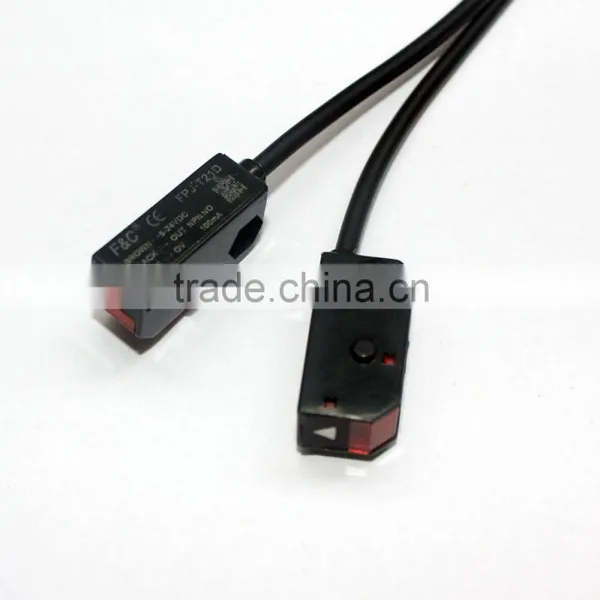

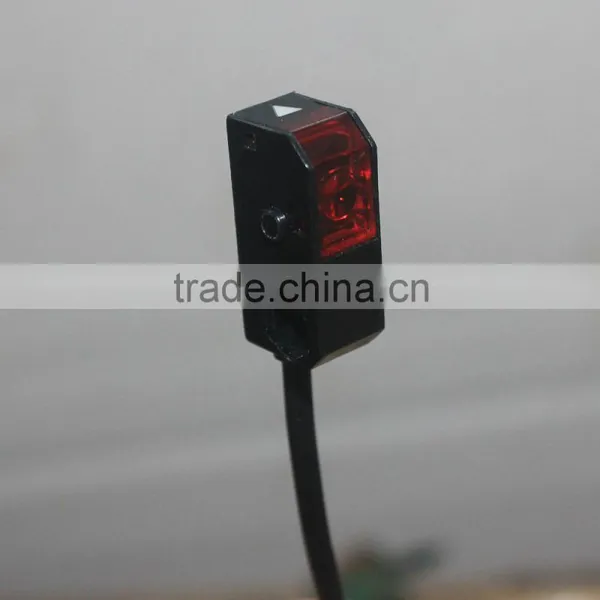

FPJ Series Photo Sensors Switches, Small Rectangle, Finger Tip Size,small Infrared Sensors
US$ 12 - 18
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FPJ series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FC-SPX308 FC-SPX309 Series Photo Switches Sensors, Top Sensing and Front Sensing, Glass Sensing, Transparent DetectionUS$ 10 - 18MOQ: 10 Pieces -
U Shape Photo Sensors Switches, 7mm or 30mm Slot Width, Fork Sensors, Connector Type OfferedUS$ 20 - 30MOQ: 10 Pieces
-
F&C DR12 Series M12 Photoelectric Sensors, Cylinder Photo Sensors, Infrared Photo SwitchesUS$ 10 - 30MOQ: 10 Pieces
-
FGSM Series Light Curtain, Area Sensors, 20MM or 40MM Optic Axis Space, Axis Number Can CustomizeUS$ 30 - 100MOQ: 10 Pieces
-
CR-30V Series Voltage Output Photo Sensors Switches, 5~1VDC Output Analog Sensors SwitchesUS$ 12 - 18MOQ: 10 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FPJ series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description

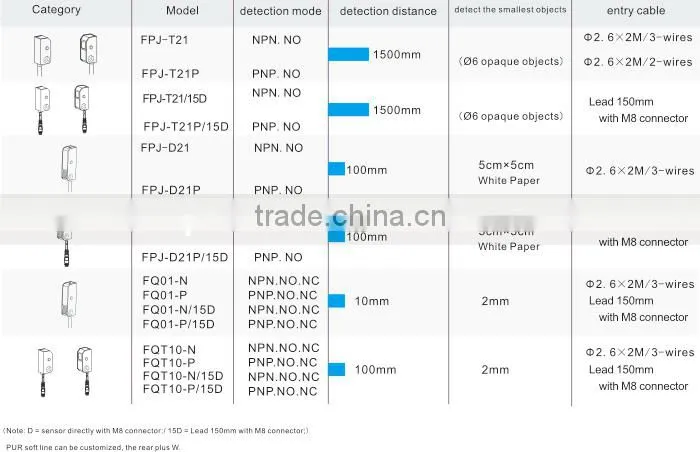

Model |
FPJ-T21 FPJ-T21/15D FPJ-T22 FPJ-T22/15D |
FPJ-D21 / FPJ-D21/15D FPJ-D22 / FPJ-D22/15D |
Scanning distance |
1500mm | 100±10mm |
Emitting light |
RedLED:630nm | |
Operating voltage |
DC:10~30VDC±10%(Ripple P-P:10%Max) | |
Current consumption |
15mA Max | |
Load current |
100mA Max at DC 24V | |

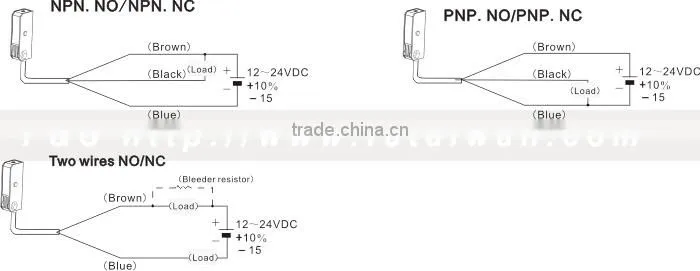

Output type |
N=NPN.NO/N2=NPN.NC P=PNP.NPN/P2=PNP.NC | |
Protection circuit |
Reversed supply ciruit protection,short citcuit protection output |
|
Response time |
0.3 ms Max | |
Insulation resistance |
20M Ωmin.(DC500V) | |
Voltage withstandatility |
AC1000V 60Hz for 60 Sec | |
Operating temperature |
-10°C~+45°C(No freezing allowed ) | |
Ambient hunidity |
35%~95%RH | |
Storage temperarure |
-10°C~+55°C(No freezing allowed ) | |
Storage hunidity |
35%~95%RH | |
Material |
ABS | |
Wiring method |
φ4×2M/3-wires, φ4×2M/2-wires | |
Protection degree |
IP40 | |
Weight |
Approx.18.5g | |

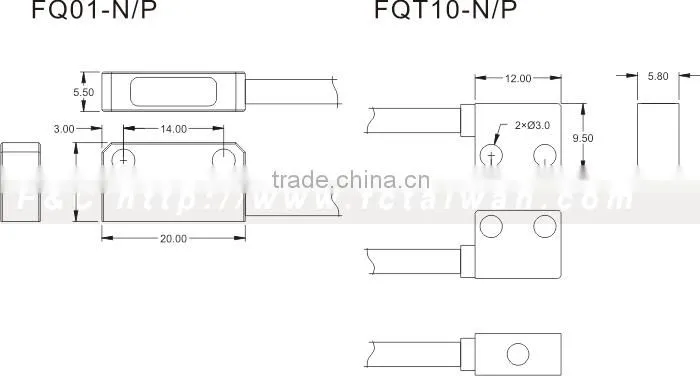

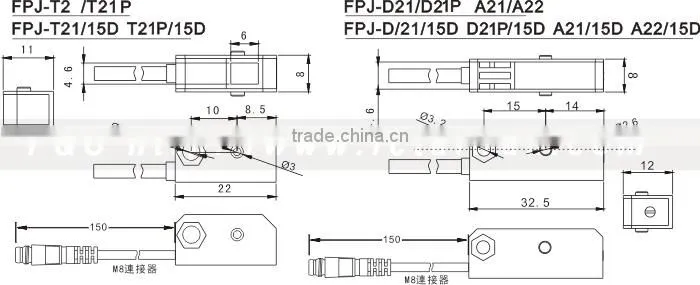

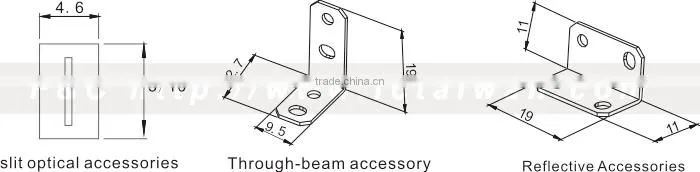

Diagram
