Home > Electrical & Electronics > Sensor > Pressure Sensor > CR-30V Series Voltage Output Photo Sensors Switches, 5~1VDC Output Analog Sensors Switches

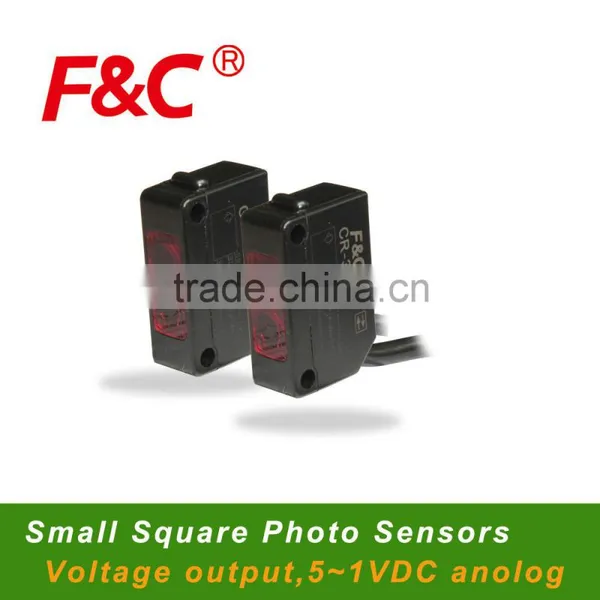

CR-30V Series Voltage Output Photo Sensors Switches, 5~1VDC Output Analog Sensors Switches
US$ 12 - 18
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
CR-30V series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DR18-10/40 Series M18, 10/40cm Diffuse Cylinder Infrared Sensors, Optical Switching TransducerUS$ 15 - 25MOQ: 5 Pieces -
DR18-S500/S1000 Series M18 Photoelectric Sensor, 360 Degrees LED View, Photoelectric Switch Sensor, Through Beam Type.US$ 15 - 25MOQ: 5 Pieces
-
DR18-S200 Series M18,12~24VDC, 200cm Sensing Range With ReflectorUS$ 15 - 25MOQ: 5 Pieces
-
HR Series Rectangular Shape Photoelectric Sensor, DIffuse/Retro Reflective/Through-beam Photo SensorUS$ 18 - 25MOQ: 5 Pieces
-
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo SensorUS$ 10 - 25MOQ: 20 Pieces
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
CR-30V series
Usage
Position Sensor
Theory
Optical Sensor
Output
Analog Sensor
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
| Emitting light | RedLED:630nm |
| Operating voltage | DC:10~30VDC±10%(Ripple P-P:10%Max) |
| Current consumption | 15mA Max |
| Load current | 100mA Max at DC 24V |
| Output type | output voltage:5v-1v |
| Protection circuit | Reversed supply ciruit protection,short citcuit protection output |
| Response time | 0.3 ms Max |
| Insulation resistance | 20M Ωmin.(DC500V) |
| Voltage withstandatility | AC1000V 60Hz for 60 Sec |
| Operating temperature | -10°C~+45°C (No freezing allowed ) |
| Ambient hunidity | 35%~85%RH |
| Storage temperarure | -10°C~+55°C(No freezing allowed ) |
| Storage hunidity | 35%~95%RH |
| Material | ABS |
| Wiring method | φ4×2M/3-wires, φ4×2M/2-wires |
| Protection degree | IP64 can do IP67 |
| Weight | Approx.20g |

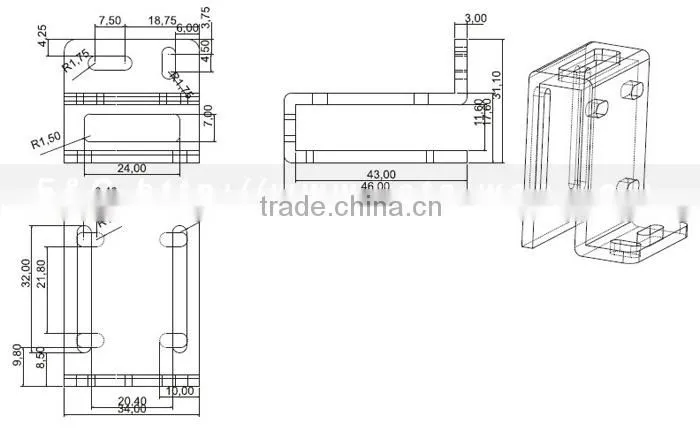

Diagram
