Home > Electrical & Electronics > Sensor > Pressure Sensor > HR Series Rectangular Shape Photoelectric Sensor, DIffuse/Retro Reflective/Through-beam Photo Sensor

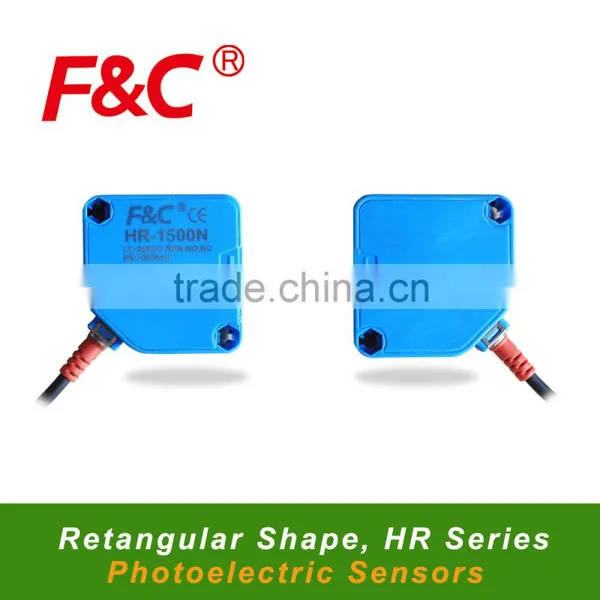

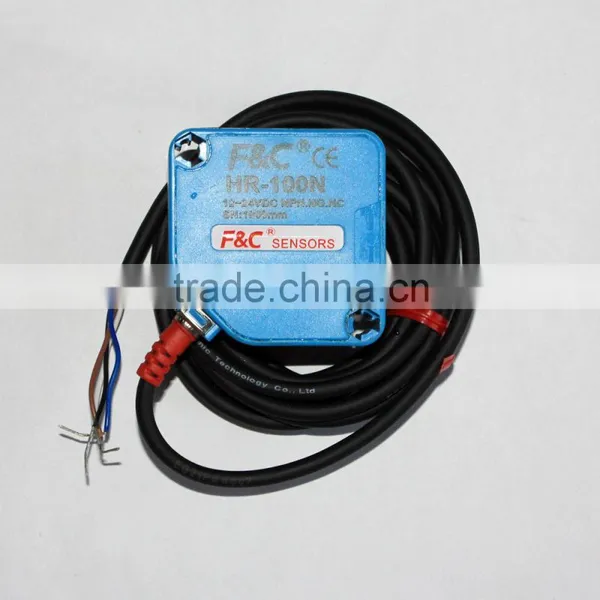

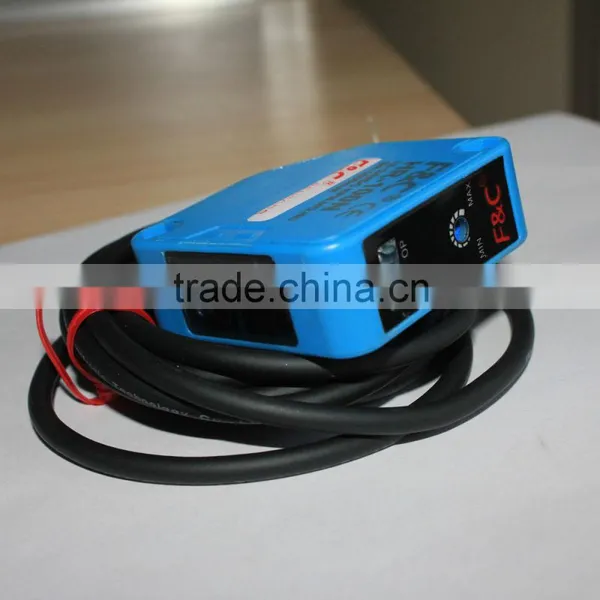

HR Series Rectangular Shape Photoelectric Sensor, DIffuse/Retro Reflective/Through-beam Photo Sensor
US$ 18 - 25
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
CR500/1000 throgh-beam series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DR18RI-CU10/40 Series M18, 10/40cm Diffuse Cylinder Photo Sensor, Metal Housing With a Protected Tube, PNP/NPN Photo SensorUS$ 10 - 25MOQ: 20 Pieces -
FC-spx310 (SU-B3) U Shape Photo Sensors Switches, 10mm Sensing Slot, NPN.NO.NC Or PNP.NO.NC Offered.US$ 10 - 30MOQ: 10 Pieces
-
Micro U Shape Photo Sensor, Amplifier Outside, 4-Wire, 5mm Slot Size, 5vDC Offered.US$ 4 - 7MOQ: 5 Pieces
-
M18 Through-beam NPN NO Infrared Photoelectric Switch SensorUS$ 15 - 25MOQ: 1 Piece
-
M18 Cylindrical 5m Through-beam NPN Infrared Photoelectric Switch SensorUS$ 11.26 - 13.75MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
CR500/1000 throgh-beam series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description

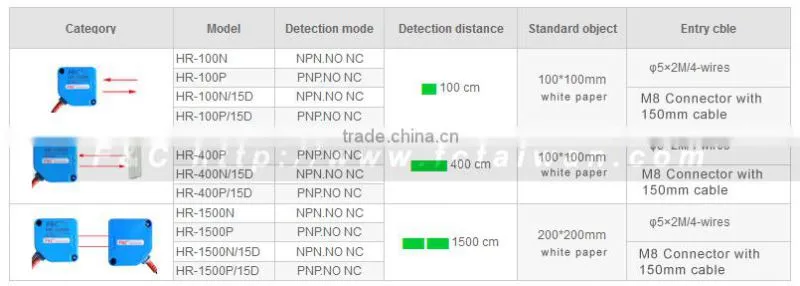

Specifications |
Diffuse | Retro Reflective | Through-beam |
|---|---|---|---|
Model |
HR-100N HR-100N/15D HR-100P HR-100P/15D |
HR-400N HR-400N/15D HR-400P HR-400P/15D |
HR-1500N HR-1500N/15D HR-1500P HR-1500P/15D |
Scanning Distance |
100cm | 400cm | 1500cm |
Emitting light |
850mm infrared | ||
Operating voltage |
DC:12~24VDC±10%(Ripple P-P:10%Max) | ||
Current consumption |
25mA Max | ||
Load currents |
100mA Max at DC 24V | ||
Output type |
N=NPN.No.NC OR P=PNP.NO.NC | ||
Response time |
below 1ms | ||
Insulation resistance |
20M Ωmin.(DC500V) | ||
Voltage withstandatility |
AC1000V 60Hz for 60 Sec | ||
Operating temperature |
-25°C~+55°C(No freezing allowed ) | ||
Ambient hunidity |
35%~85%RH | ||
Storage temperarure |
-25°C~+55°C(No freezing allowed ) | ||
Storage hunidity |
35%~95%RH | ||
Material |
ABS | ||
Wiring method |
φ5×2M/4-wires | ||
Protection degree |
IP54 | ||
| Protection circuit | Power supply reverse polarity protection and short circuit protection | ||
| Weight | Approx.100g | ||
Diagram
