Help CenterM18 Cylindrical 5m Through-beam NPN Infrared Photoelectric Switch Sensor
Related Products
-
Waterproof M18 5m Through-beam Photoelectric Sensor With CEUS$ 5 - 25MOQ: 1 Piece -
M18 Cylindrical 10m Through-beam NPN NO Infrared Photoelectric Switch/ SensorUS$ 15.54 - 18.98MOQ: 1 Piece
-
EN Standard NPN NO NC and PNP NO NC Diffuse Photoelectric Switch SensorUS$ 14.68 - 23.04MOQ: 1 Piece
-
Finger Tip Size Through-beam Photoelectric Switch Sensor for Narrow Space DetectionUS$ 12 - 18MOQ: 1 Piece
-
5mm Slot Width 4 Wires U-shaped Photoelectric Sensor With CE CertificateUS$ 2.66 - 3.99MOQ: 1 Piece
Dear customer,
Welcome to visit our products.
We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.
Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.
Hope you will find that is suitable for your products. If not,pls contact me
skype:lynn_liu123 ,we’ll find solutions for you.
DR18 series photoelectric switch sensor sensing distance can reach 5m.
Feature of DR18 series photoelectric switch sensor
1. Integrated structure, waterproof grade can reach IP66
2. Through-beam, retro-reflective, diffuse photoelectric switches for option
3. Detection distance is adjustable.
4. 90 degree connecting and direct connecting are available.

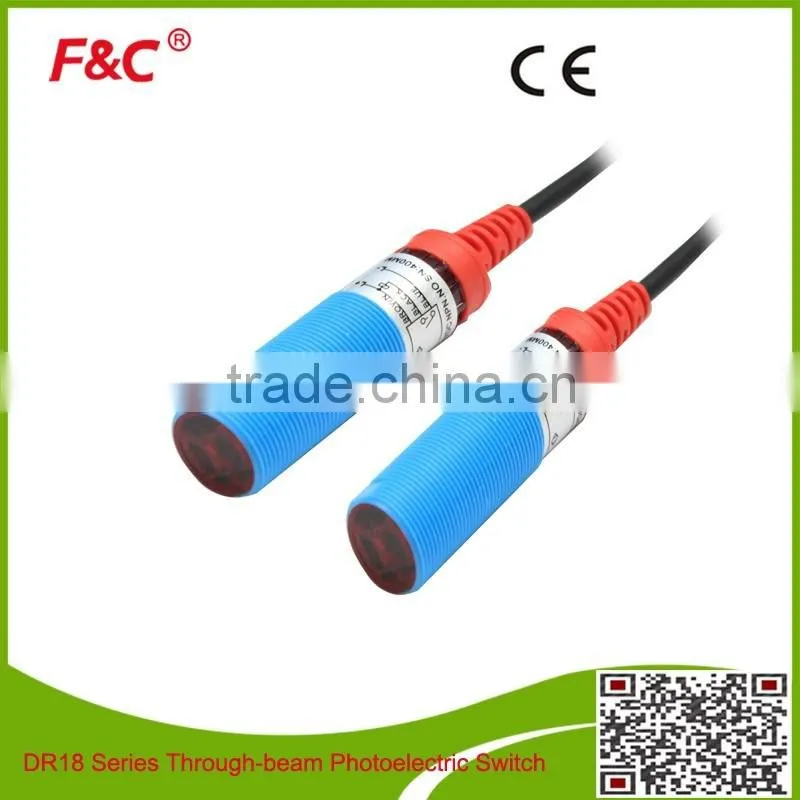

Product display
M18 cylindrical 10m Through-beam NPN NC infrared photoelectric switch sensor
Product specification for M18 Through-beam photoelectric switch with 5m sensing distance
| Model | DR18TI-S500N R2M |
| Output Method | NPN NO |
| Detection Type | Through-beam |
| Standard Detection Object Size | diameter 5mm opaque objects |
| Detection Distance | 5m |
| Light Source | 850nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP66 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | dia4*2M/-3wires |
| Weight | 107g |

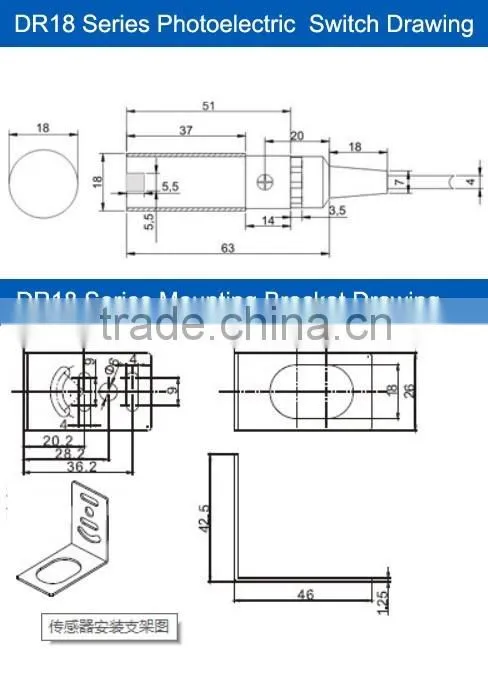

Dimension Drawing
More Product
| Reflection Type | PN | Output Method | Detection Distance | Standard Detection Object |
| Through-beam | DR18TI-S1000N R2M | NPN NO | 10m | diameter 5mm opaque object |
| DR18TI-S1000N2 R2M | NPN NC | |||
| DR18TI-S1000P R2M | PNP NO | |||
| DR18TI-S1000P2 R2M | PNP NC | |||
| DR18TI-S1000NC R2M | NPN NO NC | |||
| DR18TI-S1000PC R2M | PNP NO NC | |||
| Through-beam | DR18TI-S500N R2M | NPN NO | 5m | diameter 5mm opaque object |
| DR18TI-S500N2 R2M | NPN NC | |||
| DR18TI-S500P R2M | PNP NO | |||
| DR18TI-S500P2 R2M | PNP NC | |||
| DR18TI-S500NC R2M | NPN NO NC | |||
| DR18TI-S500PC R2M | PNP NO NC | |||
| Retroreflective | DR18MR-S200N R2M | NPN NO | 2m | diameter 5mm opaque object |
| DR18MR-S200N2 R2M | NPN NC | |||
| DR18MR-S200P R2M | PNP NO | |||
| DR18MR-S200P2 R2M | PNP NC | |||
| DR18MR-S200NC R2M | NPN NO NC | |||
| DR18MR-S200PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S40N R2M | NPN NO | 40cm | 10mm*10mm white paper |
| DR18RI-S40N2 R2M | NPN NC | |||
| DR18RI-S40P R2M | PNP NO | |||
| DR18RI-S40P2 R2M | PNP NC | |||
| DR18RI-S40NC R2M | NPN NO NC | |||
| DR18RI-S40PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S10N R2M | NPN NO | 10cm | 10mm*10mm white paper |
| DR18RI-S10N2 R2M | NPN NC | |||
| DR18RI-S10P R2M | PNP NO | |||
| DR18RI-S10P2 R2M | PNP NC | |||
| DR18RI-S10NC R2M | NPN NO NC | |||
| DR18RI-S10PC R2M | PNP NO NC |
Our service
About product: All our sensors use high quality material and we accept customization of all kinds of sensors
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
Our factory
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of “Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.
F&C Sensing Technology History
F&C Sensing Technology was established in Taiwan in 1996
Establish branch office in Dongguan in 2003.
Establish factory in Dongguan 2006.
Establish factory in Changsha in 2013
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
Contact information
Skype:lynn_liu123
Tel/ Wechat:+86 13809275350
