Finger tip size through-beam photoelectric switch sensor for Narrow Space detection
Feature
1.AS small as Finger tip, suitable for narrow space installation
2. Through-beam, diffuse photoelectric switches for option
3. Have 1500mm detection distance and only with diameter 3mm light spot
4. 5VDC photoelectric switch can be customized.
Product display

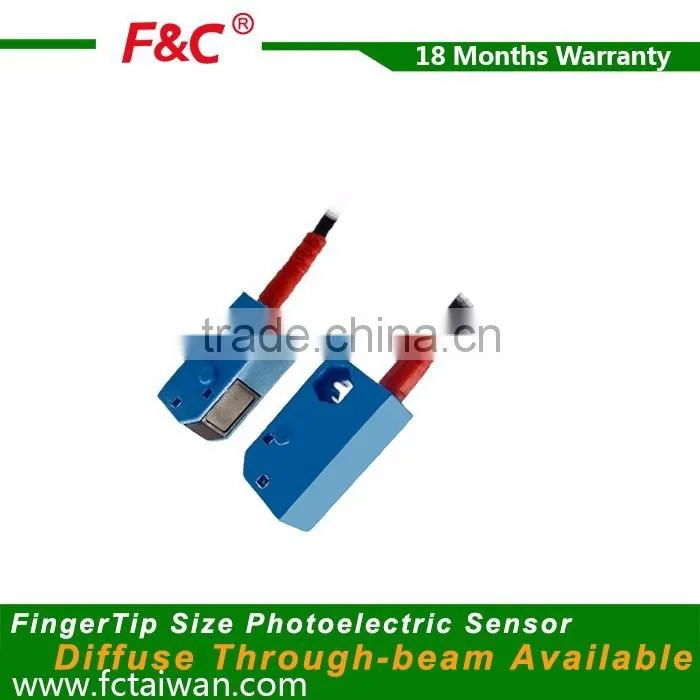

Finger tip size through-beam photoelectric switch sensor for Narrow Space detection
Specification
| Finger tip size through-beam photoelectric switch sensor for Narrow Space detection | |
| Model | PJRI-S150N R2M |
| Output Method | NPN NO |
| Detection Type | through-beam |
| Standard Detection Object Size | dia 5mm opaque object |
| Detection Distance | 1500mm |
| Light Source | 940nm Infrared modulated light |
| Operating Voltage | 12-24 VDC |
| Response Time | 0.3ms Max. |
| Current Consumption | 15mA Max. |
| Load current | 100mA Max at 24 VDC |
| Insulation Resistance | 20M Ohm Min. at 500 VDC |
| Dielectric strength | 60 seconds at 1000VAC 60HZ |
| Protection Degree | IP40 |
| Operating Temperature | -10℃-50℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | ABS |
| Wire Method | diameter 3mm*2M/-3wires or -2 wires |
More Product
| Reflection Type | PN | Output Method | Detection Distance | Standard Detection Object |
| Through-beam | DR18TI-S1000N R2M | NPN NO | 10m | diameter 5mm opaque object |
| DR18TI-S1000N2 R2M | NPN NC | |||
| DR18TI-S1000P R2M | PNP NO | |||
| DR18TI-S1000P2 R2M | PNP NC | |||
| DR18TI-S1000NC R2M | NPN NO NC | |||
| DR18TI-S1000PC R2M | PNP NO NC | |||
| Through-beam | DR18TI-S500N R2M | NPN NO | 5m | diameter 5mm opaque object |
| DR18TI-S500N2 R2M | NPN NC | |||
| DR18TI-S500P R2M | PNP NO | |||
| DR18TI-S500P2 R2M | PNP NC | |||
| DR18TI-S500NC R2M | NPN NO NC | |||
| DR18TI-S500PC R2M | PNP NO NC | |||
| Retroreflective | DR18MR-S200N R2M | NPN NO | 2m | diameter 5mm opaque object |
| DR18MR-S200N2 R2M | NPN NC | |||
| DR18MR-S200P R2M | PNP NO | |||
| DR18MR-S200P2 R2M | PNP NC | |||
| DR18MR-S200NC R2M | NPN NO NC | |||
| DR18MR-S200PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S40N R2M | NPN NO | 40cm | 10mm*10mm white paper |
| DR18RI-S40N2 R2M | NPN NC | |||
| DR18RI-S40P R2M | PNP NO | |||
| DR18RI-S40P2 R2M | PNP NC | |||
| DR18RI-S40NC R2M | NPN NO NC | |||
| DR18RI-S40PC R2M | PNP NO NC | |||
| Diffuse | DR18RI-S10N R2M | NPN NO | 10cm | 10mm*10mm white paper |
| DR18RI-S10N2 R2M | NPN NC | |||
| DR18RI-S10P R2M | PNP NO | |||
| DR18RI-S10P2 R2M | PNP NC | |||
| DR18RI-S10NC R2M | NPN NO NC | |||
| DR18RI-S10PC R2M | PNP NO NC |
About product: All our sensors use high quality material and we accept OEM order.
About warranty: we promise replacement within 18 months if any quality problems are found.
About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.
About price: The most favorable price in the same quality products.
F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.
F&C has become a famous brand at home and aboard.
Looking into the future, our company will continuously adhere to the quality policy of “Being
innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.
Order information
140 kinds of regular sensors have stock, it cut lead time obviously.
Sample is available and welcome.
Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.
Lead time: 3 working days for sample order, 7 working days for mass order.
