Home > Electrical & Electronics > Sensor > Pressure Sensor > 5m NPN NO NC Through-beam Small Photoelectric Switch and Photo Sensor

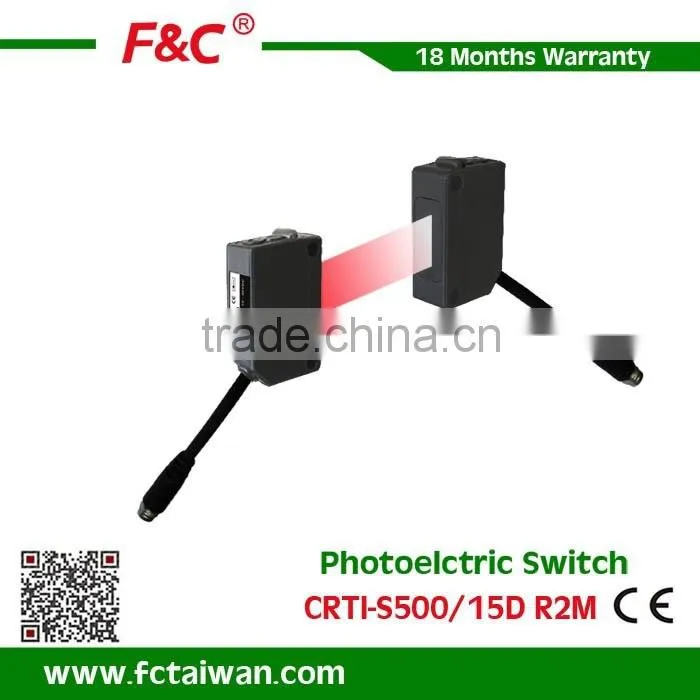

5m NPN NO NC Through-beam Small Photoelectric Switch and Photo Sensor

US$ 19.45 - 30.79 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Hunan, China

Brand Name:

F&C

Model Number:

CRTI-S500/15D R2M

Contact Supplier Request Quote Chat Now

F&C Sensing Technology (Hunan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou Shezhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hunan, China

Brand Name F&C

Model Number CRTI-S500/15D R2M

Usage Position Sensor

Theory Inductance Sensor

Output Switching Transducer

Dear customer,

Welcome to visit our products.

We are a professional manufacturer. Our factory gets involved in sensor industry in 2003.

Our main products are fiber optic amplifier, fiber optic tube, proximity switch, photoelectric switch, label sensor, light curtain, laser alignment, pressure sensor, magnetic switch, connector, laser sensor, color mark sensor, rail din power supply, solid state ray.

Hope you will find that is suitable for your products. If not,pls contact me

skype:lynn_liu123 ,we’ll find solutions for you.

Feature of CR series diffuse photoelectric switch sensor

1.Ideal for conveyor system.

2.Through-beam, diffuse photoelectric switches for option

3.Long distance through-beam photoelectric switch can reach 10m.

4.Standard EN product. PNP and NPN are available

electric switch Connecting wires and quick disconnecting connector can be customized

Product display

5m detection distance through-beam photoelectric sensor are used common by Conveyor system.

Product specification for 5m NPN NO NC through-beam small photoelectric switch and photo sensor

Model	CRTI- S500/15D R2M
Detection Distance	10m
Light Source	850nm Infrared modulated light
Operating Voltage	12~24V DC
Consumption Current	15mA
Load Current	100mA Max@ 24V DC
Output Method	NPN NO+NC
Response Time	0.3mS Max
Insulation Resistance	20MΩ min@ 500V DC
Dielectric strength	1000V AC 60HZ for 60secs
Operating Temperature	-10~45℃
Material	ABS
Connection	150mm lead line with M8 connector
Certificate	CE
Protection Degree	IP66
Polarity Protection	Yes
Short Circuit Protection	Yes
Wiring Method	dia400×2M/3wires

More Round Photoelectric Switch Information

Reflection Type	PN	Output Method	Detection Distance	Standard Detection Object
Through-beam	DR18TI-S1000N R2M	NPN NO	10m	diameter 5mm opaque object
	DR18TI-S1000N2 R2M	NPN NC
	DR18TI-S1000P R2M	PNP NO
	DR18TI-S1000P2 R2M	PNP NC
	DR18TI-S1000NC R2M	NPN NO NC
	DR18TI-S1000PC R2M	PNP NO NC
Through-beam	DR18TI-S500N R2M	NPN NO	5m	diameter 5mm opaque object
	DR18TI-S500N2 R2M	NPN NC
	DR18TI-S500P R2M	PNP NO
	DR18TI-S500P2 R2M	PNP NC
	DR18TI-S500NC R2M	NPN NO NC
	DR18TI-S500PC R2M	PNP NO NC
Retroreflective	DR18MR-S200N R2M	NPN NO	2m	diameter 5mm opaque object
	DR18MR-S200N2 R2M	NPN NC
	DR18MR-S200P R2M	PNP NO
	DR18MR-S200P2 R2M	PNP NC
	DR18MR-S200NC R2M	NPN NO NC
	DR18MR-S200PC R2M	PNP NO NC
Diffuse	DR18RI-S40N R2M	NPN NO	40cm	10mm*10mm white paper
	DR18RI-S40N2 R2M	NPN NC
	DR18RI-S40P R2M	PNP NO
	DR18RI-S40P2 R2M	PNP NC
	DR18RI-S40NC R2M	NPN NO NC
	DR18RI-S40PC R2M	PNP NO NC
Diffuse	DR18RI-S10N R2M	NPN NO	10cm	10mm*10mm white paper
	DR18RI-S10N2 R2M	NPN NC
	DR18RI-S10P R2M	PNP NO
	DR18RI-S10P2 R2M	PNP NC
	DR18RI-S10NC R2M	NPN NO NC
	DR18RI-S10PC R2M	PNP NO NC

Our service

About product: All our sensors use high quality material and we accept customization of all kinds of sensors
About warranty: we promise replacement within 18 months if any quality problems are found.

About lead time: For sample, 3work days only.
For mass production order, 7 days after deposit.

About price: The most favorable price in the same quality products.

Our factory

F&C Sensing Technology(Hunan)Co.,Ltd ,specialized in researching ,developing,producing and marketing high quality industrial automating sensors, located in Building 1, Luguyuyuan,No#27 Wenxuan Road, High-Tech Development Zone, Changsha, Hunan.

F&C has become a famous brand at home and aboard.

Looking into the future, our company will continuously adhere to the quality policy of “Being innovative and perfect to pursue flawlessness; Keeping improving to satisfy customer needs”.

F&C Sensing Technology History

F&C Sensing Technology was established in Taiwan in 1996

Establish branch office in Dongguan in 2003.

Establish factory in Dongguan 2006.

Establish factory in Changsha in 2013

Order information

140 kinds of regular sensors have stock, it cut lead time obviously.

Sample is available and welcome.

Shipping term: FOB Shenzhen or Guangzhou; EXW, CIF, DDU and DDP are available.

Lead time: 3 working days for sample order, 7 working days for mass order.
